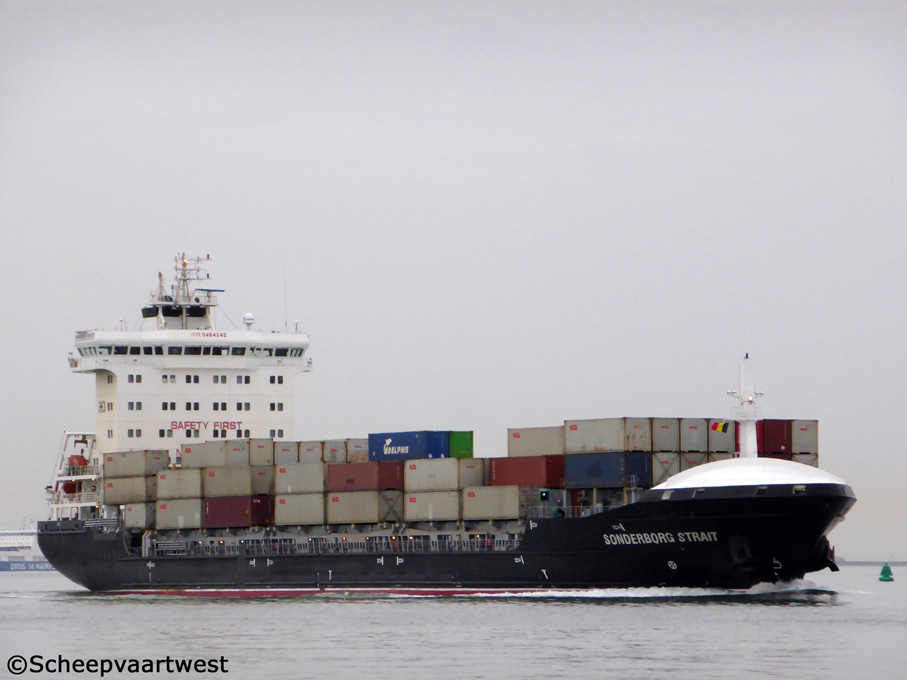

Sonderborg Strait 01

Westerschelde 03 April 2014

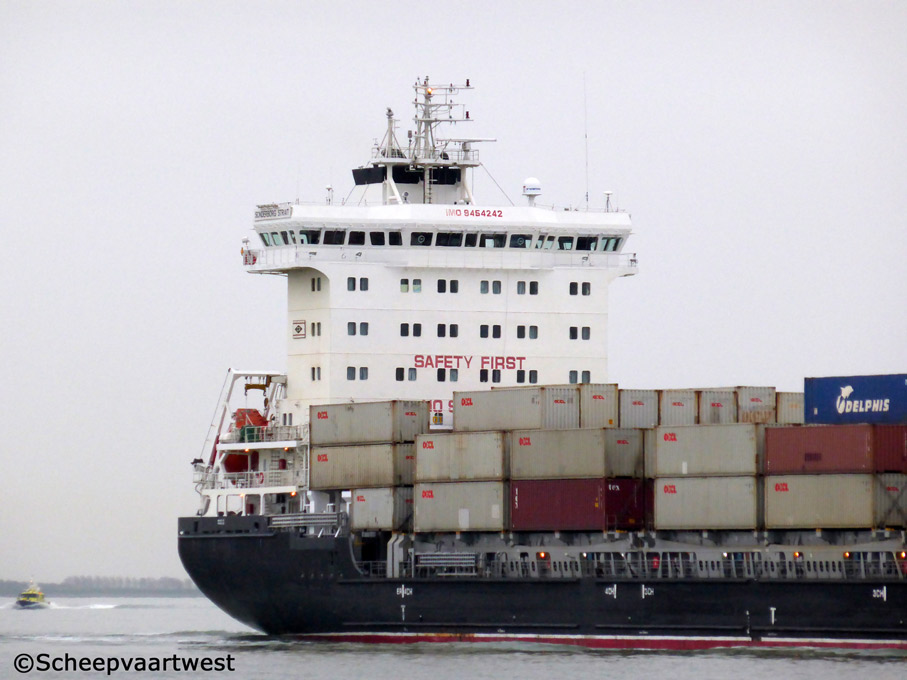

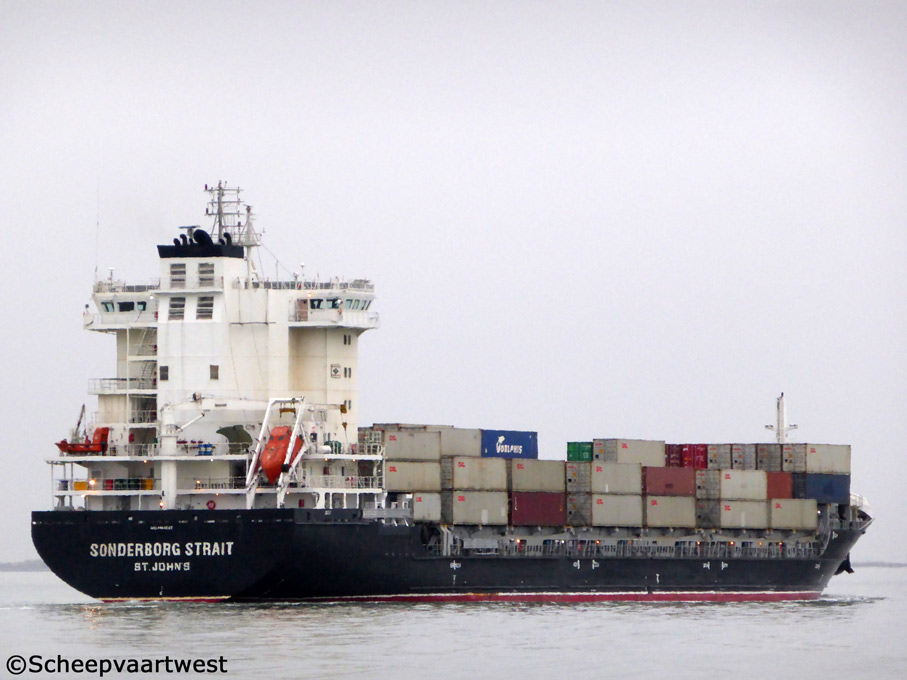

Sonderborg Strait 03   Sonderborg Strait 02
Westerschelde 03/04/14 Westerschelde 03/04/14



Name

SONDERBORG STRAIT

Type

Cellular containership

IMO-number

9454242

Call sign

V2GD6

Flag

St. John's

Port of registry

Antigua & Barbuda

GT

12.514 t

Suez: 12.609,43 t

DWT

Summer: 14.222,18 t

NT

5.387 t

Panama: 10.518

Suez: 9.808,91 t

Displacement

20.806,6 t

Number of 20ft containers

In hold: 372

On deck: 713

Total: 1.085

Number of 40ft containers

535 + 14 TEU

Container capacity 14t

733 homogeneous load

Reefer capacity

250 reefer plugs whereby 166 on deck and 84 in holds

Length

158,01 m overall

150,08 m registered

Breadth

23,50 m moulded

Draught

8,60 m

Freeboard

3.318 mm

Depth

11,90 m moulded

Speed

18,5 knots

Built

2012

Keel laid

18/12/2008

Launch date

17/11/2011

Date of completion

23/11/2012

Builder

Nanjing Wujiazui Shipbuilding Co., Ltd.

Dongjiangcun Baguazhou Zhen, Qixia Qu

Nanjing, 210043 Jiangsu

People's Republic of China

Yard number

WJZ034

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x Wärtsilä 6RT-flex50-B - 2 stroke 6 cylinder 500 x 2.050 mm combustion engine 9.960 kW / 13.542 hp at 124,0 rpm

Year of manufacture: 2011

Manufacturer : Hitachi Zosen Corporation, Ariake Machinery Works

1, Ohaza Ariake, Nagasu-machi

Tamana-Gun ,869-0113 Kumamoto-ken

Japan

Propellers

1x Controllable pitch propeller - aft at 124 rpm

Boilers

Steam boiler, oil fired - 9,0 bar

Heating surface: 15,0 m²

Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 193,0 m²

Year of manufacture: 2011

Manufacturer: Alfa Laval Qingdao Ltd.

86 Guangzhou Road North Jiaozhou

Qingdao, 266300 Shandong

People's Republic of China

Electric installations

2x Plants each 450 V - 1.125 kVA

1x Plant 450 V - 1.500 kVA

1x Plant 450 V - 124 kVA

2x Plants each 12 V - 90 Ah

2x Plants each 12 V - 195 Ah

4x Plants each 12 V - 195 Ah

Generators

2x Daihatsu 6DK-20 - 4 stroke 3 cylinder 200x 300 mm diesel engines each 845 kW connected with generators each 1.125 kVA

1x Daihatsu 6DK-20 - 4 stroke 8 cylinder 200x 300 mm diesel engine 1.360 kW connected with generators each 1.500 kVA

Emergency generator

1x Diesel generatorset 124 kVA

Batteries

4x Batteries for other purpose each 195 Ah

2x Batteries for automation each 195 Ah

2x Batteries for start emergency engine each 90 Ah

Compressed air receivers

2x Receivers each 1.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

2x Receivers each 100 litres - 10,0 bar

1x Receiver 1.000 litres - 7,0 bar

Bow thruster

1x Transverse thruster 700 kW / 952 bhp, forward

Number of holds

7

Number of hatches

7

No. 1 13,30 x 12,80 m

No. 2 A+B 26,60 x 20,468 m

No. 3 A+B 28,00 x 20,468 m

No. 4 A+B 28,00 x 20,468 m

Type of hatch covers

Hydraulically operated folding hatch covers

Tank capacities

Diesel oil: 240,70 m³

Fuel oil: 1.571,80 m³

Ballast: 5.672,70 m³

Lube oil: 83,20 m³

Hydraulic oil: 3,80 m³

Fresh water: 255,60 m³

Anchor equipment

3x Anchors weight each 6.000 kg

Chain length: 577,50 m

Lifting equipment

1x Double beam engine room crane - SWL 3,0 t

3x Single beam trolleys - SWL 1,5 t

Manufacturer: Jiangyin Oya Marine Machinery Co. Ltd.

1x Provision crane - SWL 4,0 t

Manufacturer: Shanghai Hengyuan Marine Equipment

Cargo gear

None

Crew size

20

Manager

CR - Carsten Rehder Schiffsmakler und Reederei GmbH & Co. KG

Große Elbstr. 42

22767 Hamburg

Federal Republic of Germany

Registered owner

MS "SONDERBORG STRAIT" GmbH & Co. KG

Grosse Elbstr. 42

22767 Hamburg

Federal Republic of Germany

Renamed

05/2018 Sonderborg

Portugal, Madeira - Call sign: CQIW4

Reg owner: Sonderborg Beteiligungsgesellschaft Gmbh & Co Kg C/O Tb Marine Cont Shipmanagement Gmbh & Co. Kg

Manager: TB Marine Cont Shipmanagement, Hamburg - Germany

Latest data adjustment

26 July 2020
