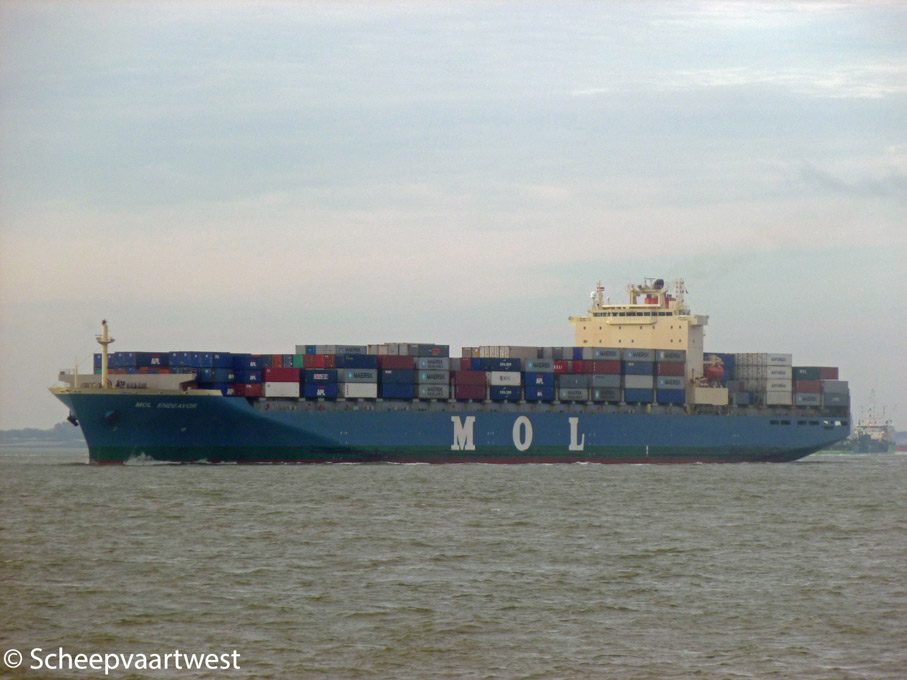

MOL Endeavor 01
Westerschelde 20 October 2013



Name

MOL ENDEAVOR

Type

Cellular containership

IMO-number

9261724

Call sign

HPFX

Flag

Republic of Panama

Port of registry

Panama City

GT

53.096 t

DWT

Summer: 61.441 t

NT

28.116 t

Number of 20ft containers

4.589

Number of 40ft containers

2.178

Reefer capacity

393

Length

294,13 m overall

Breadth

32,26 m

Draught

Summer: 13,54 m

Moulded L x B x D

282,00 x 32,26 x 21,80 m

Registered L x B x D

283,07 x 32,26 x 19,03 m

Freeboard

Summer: 8.345 mm

Depth

21,80 m moulded

Speed

25,4 knots

Built

2003

Keel laid

05.06.2002

Launch date

15.02.2003

Date of completion

26.06.2003

Builder

Ishikajima-Harima Heavy Industries Co. Ltd.
Japan

Yard number

3164

Hull material

Steel

Main engine

1x Sulzer 9RTA96C - 2 stroke single acting 9 cylinder 960 x 2.500 mm combustion engine - 49.410 kW at 100,0 rpm

Manufacturer: Diesel United

Propellers

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: .030 mm

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 16,00 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Yanmar 6N280L-XV diesel generatorsets each 1.820 kW

1x Turbo-generator - 1.200 kW

Bow thruster

1x 1.620 kW

Tank capacities

Fuel oil: 7.228 m³

Fresh water: 504 m³

Water ballast: 22.868 m³

Cargo gear

Gearless

Manager

New Asian Shipping Company, Limited
Hong Kong
China

Operator

MOL - Mitsui O.S.K Lines
Tokyo
Japan

Registered owner

Lunar River Line S.A.

Last update

27 November 2013
