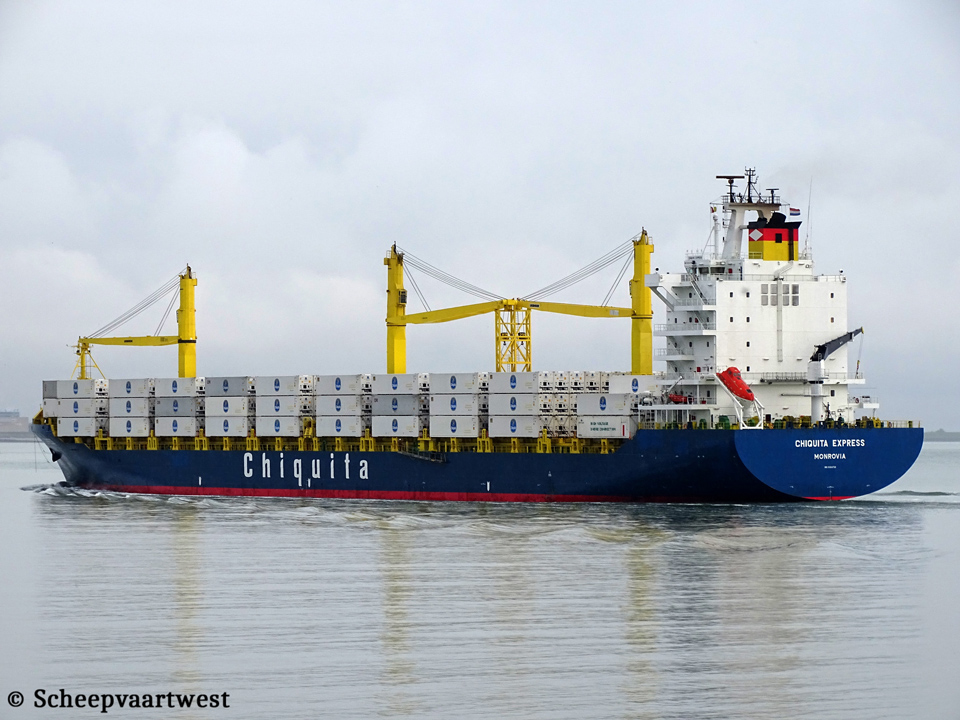

Westerschelde 03 November 2019 |
 |
 |
|

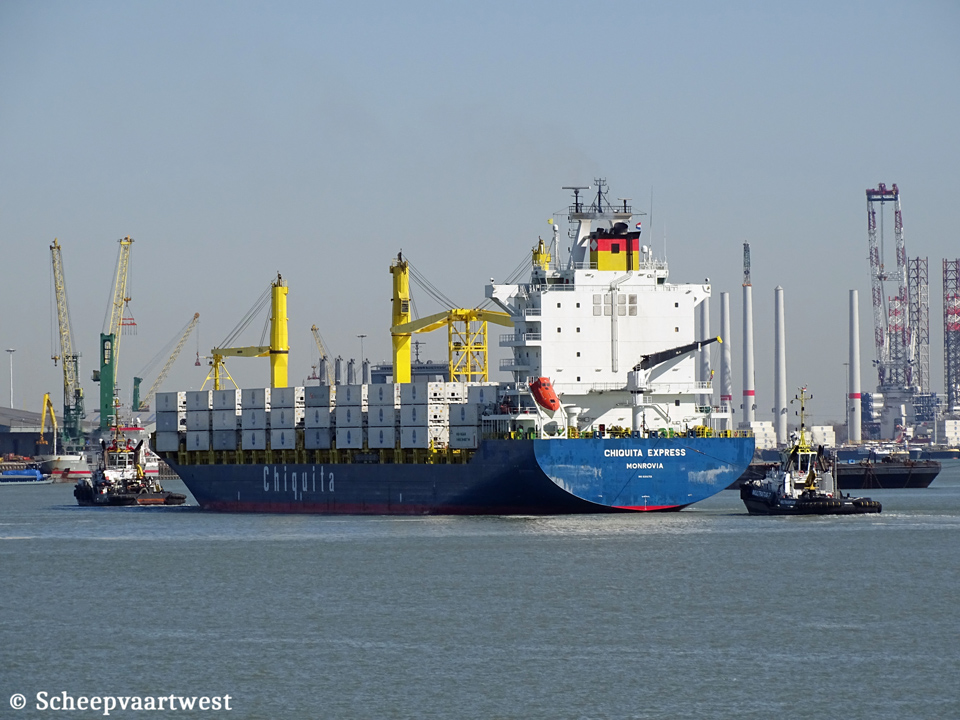

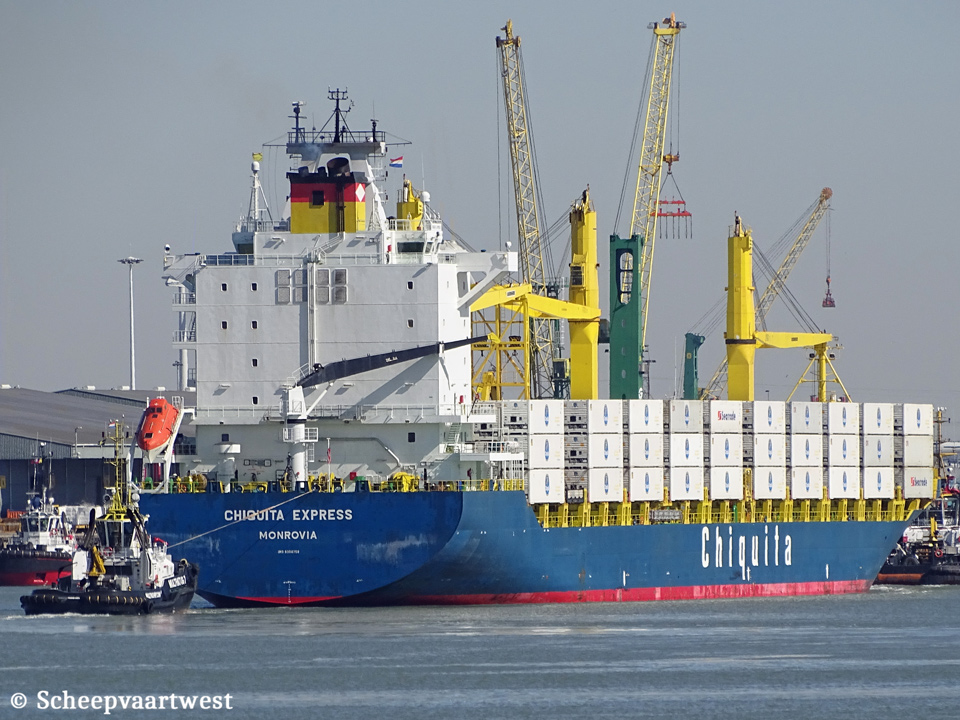

| Vlissingen 24/03/20 | Vlissingen 24/03/20 |
|
Name |
CHIQUITA EXPRESS |
|
Previous names |
2005 Build as: Carolina E 08/2005 - 08/2011 Maersk Narbonne 08/2011 - 2013 Coral Bay |
|
Type |
Containership - Carriage of dangerous goods - Refrigerated cargo |
|
IMO-number |
9304758 |
|
Call sign |
D5FR8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
Germany - Call sign: DCQX2 |
|
GT |
27.059 t |
|
DWT |
35.465 t |
|
NT |
12.221 t |
|
Displacement |
47.315 t |
|
Number of 20ft containers |
In hold: 958 On deck: 1.532 Total: 2.490 |
|
Number of 40ft containers |
350 |
|
Container capacity 14t |
1.810 |
|
Reefer plugs |
566 |
|
Length |
211,85 m overall 199,95 m between perpendiculars |
|
Breadth |
29,80 m moulded |
|
Draught |
Summer: 11,42 m |
|
Freeboard |
5.300 mm |
|
Depth |
16,67 m moulded |
|
Speed |
Max: 22,1 knots |
|
Built |
2005 |
|
Keel laid |
22/12/2004 |
|
Launch date |
01/07/2005 |
|
Delivery date |
26/08/2005 |
|
Builder |
HDW Howaldswerke Deutsche Werft AG Kiel Germany |
|
Yard number |
381 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 7RTA72UB - 2 stroke single acting 7 cylinder 720 x 2.500 mm combustion engine MCR: 21.560 kW / 29.313 hp at 99,0 rpm CSR: 18.326 kW / 24.916 hp Manufacturer: Hyundai Heavy Industries Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 99,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 10,0 bar Heating surface 18,0 m² Heating surface 258,0 m² Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production |
|
Electric installations |
3x Plant 450/230 V - 2780 kVA 1x Plant 450 V - 280 kVA 1x Plant 24 V - 210 Ah |
|
Generators |
3x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm diesel engines each 2.640 kW connected with generators each 2.224 ekW / 2.780 kVA - 450/230 Volt |
|
Emergency generator |
1x Diesel generatorset 280 kVA |
|
Batteries |
2x Batteries for emergency lighting each 210 Ah |
|
Compressed air receivers |
2x Receivers each 8.500 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 2x Receivers each 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse controllable pitch thruster 1.100 kW / 1.496 bhp |
|
Number of hatches |
1x Hatch: 12,64 x 25,34 m 1x Hatch: 12,64 x 15,36 m 1x Hatch: 12,64 x 20,35 m |
|
Tank capacities 100% |
Lub oil: 626,60 m³ Fuel oil: 3.768,90 m³ Fresh water: 382,70 m³ Ballast: 11.102,40 m³ Diesel oil: 400,40 m³ |
|
Anchor equipment |
3x Anchors weight each 9.900 kg Chain length: 660,00 m |
|
Cargo gear |
3x Liebherr cranes - SWL 45,0 t each |
|
Crew size |
32 |
|
Manager |
Great White Fleet Liner Services Ltd. 1855 Griffin Road Suite C - 436 Dania Beach, FL 33004 USA |
|
Registered owner |
United Reefer Services SA |
|
Latest data adjustment |
09 January 2021 |
