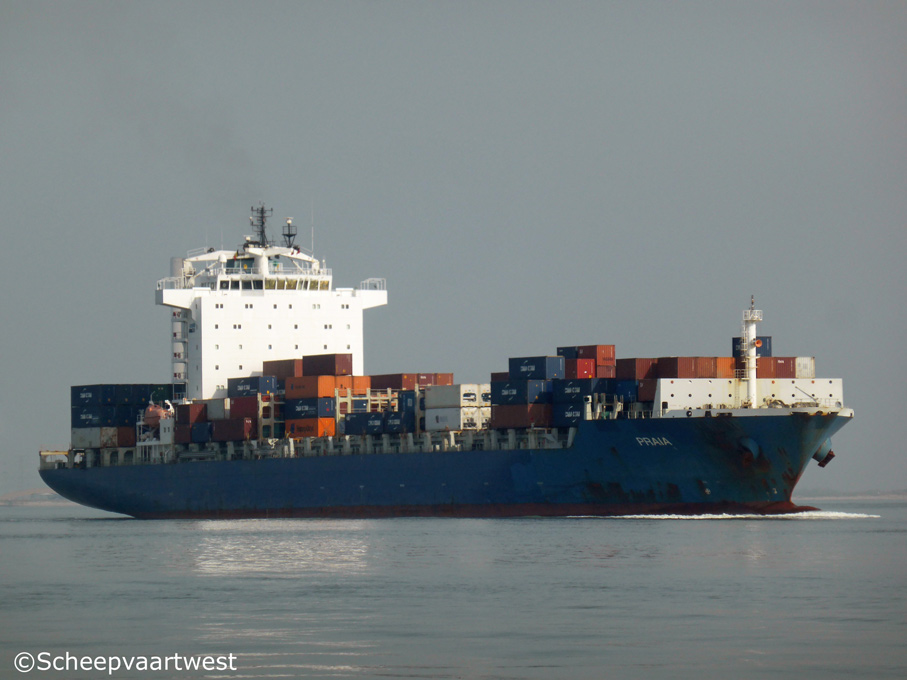

Praia 02
Westerschelde 10 April 2015

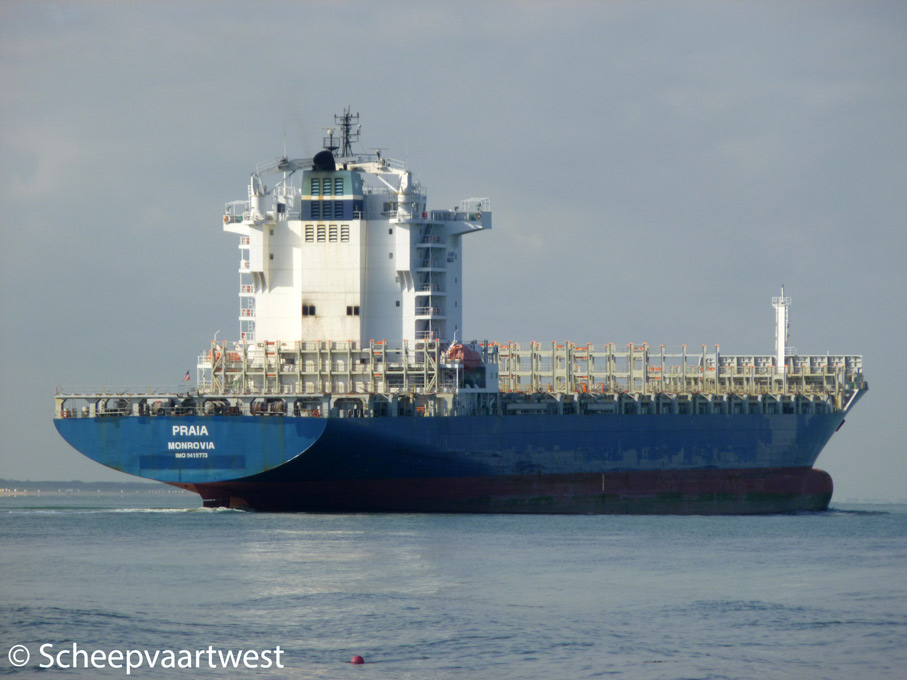

Praia 01
09/10/12



Name

PRAIA

Type

Cellular containership

IMO-number

9419773

Call sign

A8TT4

Flag

Liberia

Port of registry

Monrovia

GT

35.998 t

DWT

41.996,71 t

NT

15.939 t

Number of 20ft containers

In hold: 1.460

On deck: 2.074

Total: 3.534

Container capacity 14t

2.357

Reefer points

500

Length

230,98 m overall

214,16 m between perpendiculars

Breadth

32,29 m extreme

Draught

12,00 m

Depth

18,80 m

Speed

Max: 23,4 knots

Service: 22,2 knots

Built

2009

Keel laid

04.06.2009

Launch date

09.09.2009

Date of completion

18.12.2009

Builder

Shanghai Shipyard Co., Ltd.
Shanghai
China

Yard number

1136

Hull material

Steel

Main engine

1x MAN-B&W-HHI 7K90MC-C - 2 stroke 7 cylinder diesel engine - Output 31.920 kW

Propellers

1x fixed propeller

7.750 mm - 5 blades

Generators

4x Himsen 7H21/32 main diesel generatorsets each 1.316 kW

Boilers

Auxiliary boiler, composite

Emergency generator

1x Diesel generatorset 170 kW at 1.800 rpm

Bow thruster

1.200 kW

Diameter: 2.000 mm - 4 blades

Holds

Hold 1: 14,00 x 22,60 x 16,80 m

Hold 2: 20,00 x 28,20 x 18,82 m

Hold 3: 20,00 x 28,20 x 18,82 m

Hold 4: 20,00 x 28,20 x 18,82 m

Hold 5: 20,00 x 28,20 x 18,82 m

Hold 6: 12,64 x 28,20 x 18,82 m

Hold 7: 12,51 x 28,20 x 8,40 m

Hatches

1x Hatch Lift on / Lift off pontoon,with non- sequential

closing - 12,64 x 18,12 m

1x Hatch Lift on / Lift off pontoon,with non- sequential

closing - 12,64 x 13,08 m

9x Hatch Lift on / Lift off pontoons,with non- sequential

closing - 12,64 x 28,20 m

1x Hatch Lift on /Lift off pontoon,with non- sequential

closing - 12,51 x 28,20 m

Tank capacities

Heavy fuel oil: 4.562 m³

Marine diesel oil: 265 m³

Lub oil: 341 m³

Ballast water: 12.803,6 m³

Fresh water: 262 m³

Anchor equipment

Length: 678,43 m

Diameter: 81 mm

Cargo gear

None

Accommodation

For a crew of 28 persons with heating, ventilation and air-conditioning

Manager

NSC Shipping GmbH & Cie. KG
Van-der-Smissen-Str. 9
22767 Hamburg
Germany

Owner

MS "PRAIA" Schifffahrtsges. mbH & Co. KG

Last update

01 November 2016
