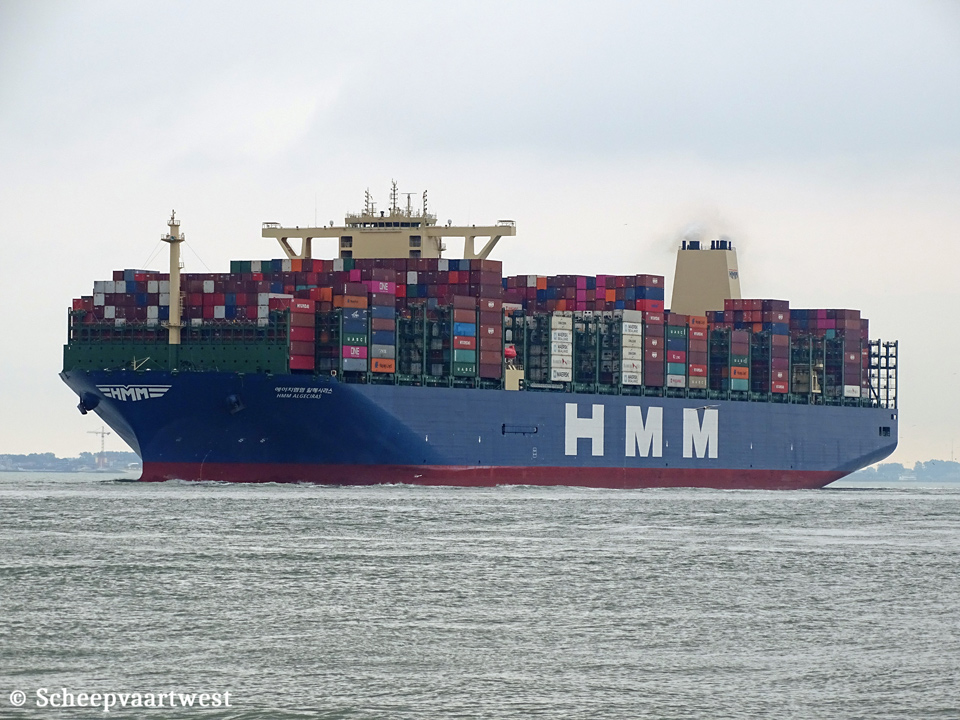

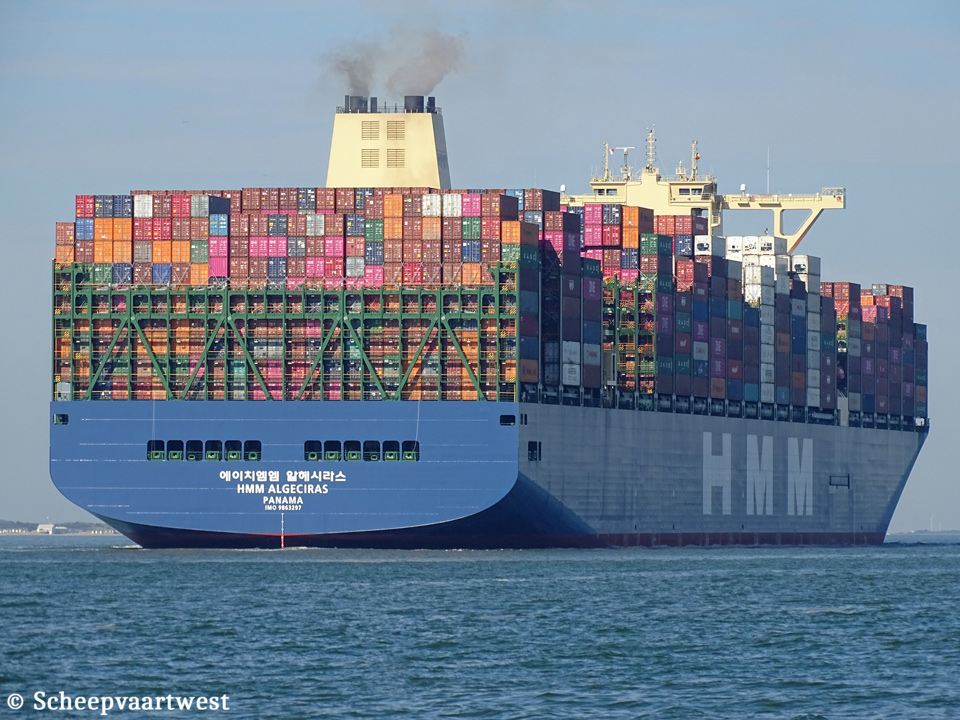

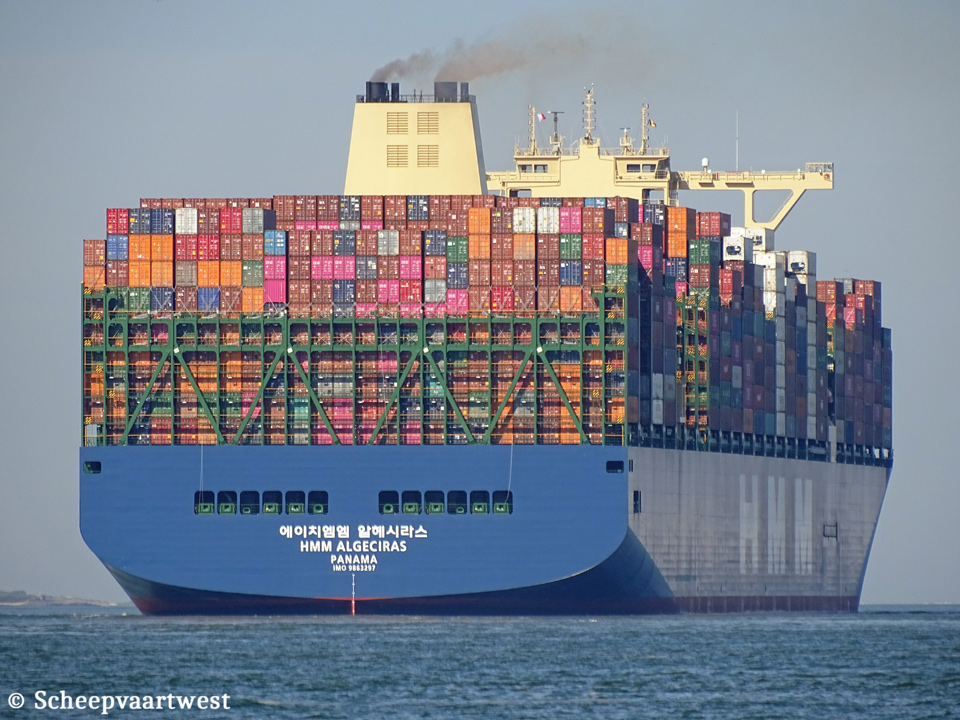

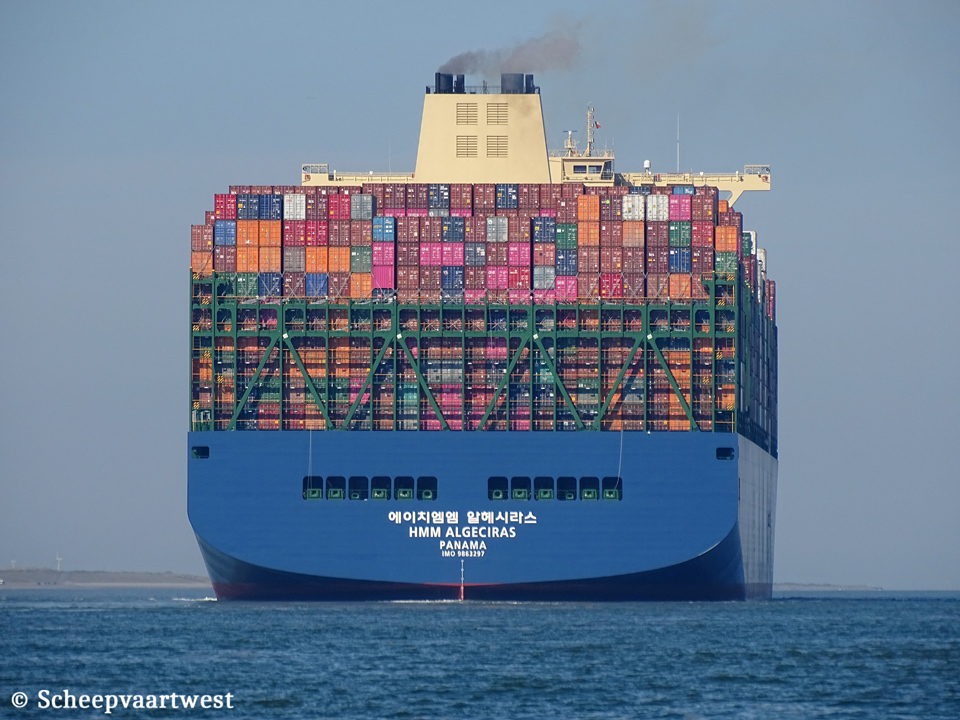

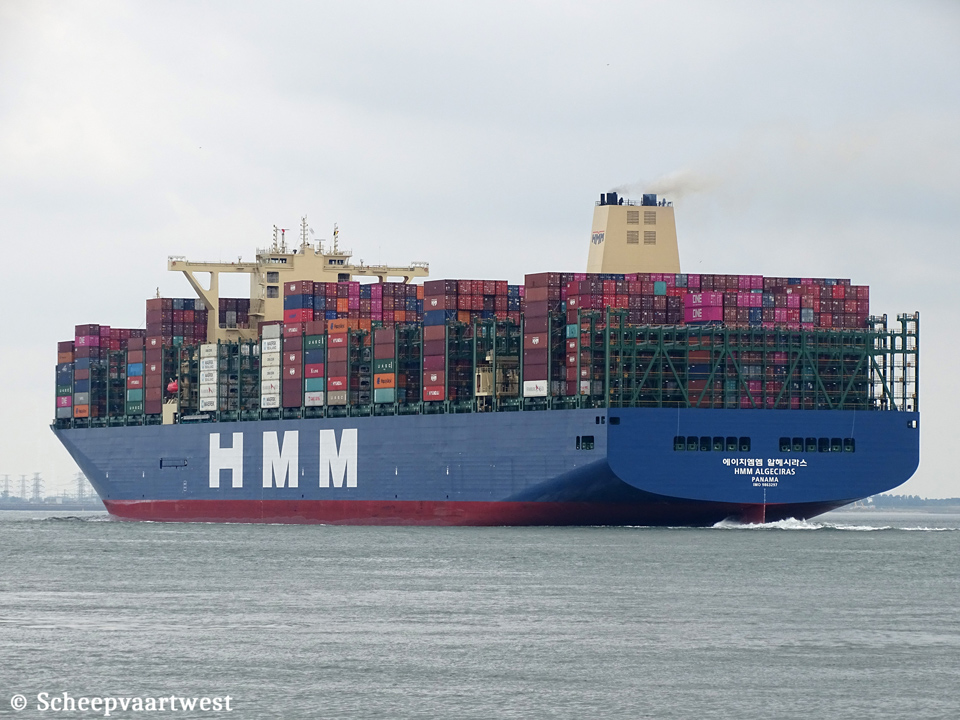

Westerschelde 11 June 2020 |
 |
 |
 |
 |
|||
| Westerschelde 11/06/20 | Westerschelde 13/06/20 | Westerschelde 13/06/20 | Westerschelde 13/06/20 |
|
Name |
HMM ALGECIRAS |
|
Type |
Cellular containership |
|
IMO-number |
9863297 |
|
Call sign |
3EDF2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
228.283 t |
|
DWT |
232.606 t |
|
NT |
117.312 t |
|
Number of 20ft containers |
In hold: 9.932 On deck: 14.032 Total: 23.964 |
|
Container capacity 14t |
13.500 |
|
Reefer capacity |
1.900 |
|
Length |
399,90 m overall |
|
Breadth |
61,00 m |
|
Draught |
Summer: 16,53 m |
|
Reg. dimensions L x B x D |
385,92 x 61,00 x 25,63 m |
|
Rule dimensions L x B x D |
385,92 x 61,00 x 25,63 m |
|
Freeboard |
Summer: 6.798 mm |
|
Depth |
25,63 m |
|
Speed |
Max: 22,4 knots service: 18,5 knots |
|
Built |
2020 |
|
Keel laid |
30/09/2019 |
|
Launch date |
21/12/2019 |
|
Date of completion |
24/04/2020 |
|
Builder |
Daewoo Shipbuilding & Marine Eng. Co., Ltd. Geoje South Korea |
|
Yard number |
4318 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 11G95ME-C10 - 2 stroke single acting - 11 cylinder 950 x 3.460 mm combustion engine 60.380 kW/ 82.093 hp at 77,5 rpm Build: 08/2019 Builder: HSD Engine Co., Ltd., Changwon - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 77,5 rpm |
|
Boilers |
1x Auxiliary boiler water tube boiler - 9,0 bar Heating surface: 64,1 m² 2x Economizer EGE - 9,0 bar Heating surface: 983,8 m³ Build: 08/2018 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 4.586 kW / 5.733 kVA - 6.600 Volt 32 Main diesel generatorsets each 2.986 kW / 3.733 kVA - 6.600 Volt |
|
Bow thruster |
2x Tunnel thruster, forward |
|
Tank capacities |
Fuel oil: 12.535 m³ Fresh water: 565,5 m³ Water ballast: 62.8811,7 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
27 |
|
Manager |
HMM Company Limited 194, Yulgok-ro, Jongno-gu Seoul, 03127 South Korea |
|
Technical manager |
HMM Ocean Service Co., Ltd. |
|
Operator |
HMM - Hyundai Merchant Marine |
|
Registered owner |
Meritz Taurus 1 SA |
|
Latest data adjustment |
06 December 2020 |
