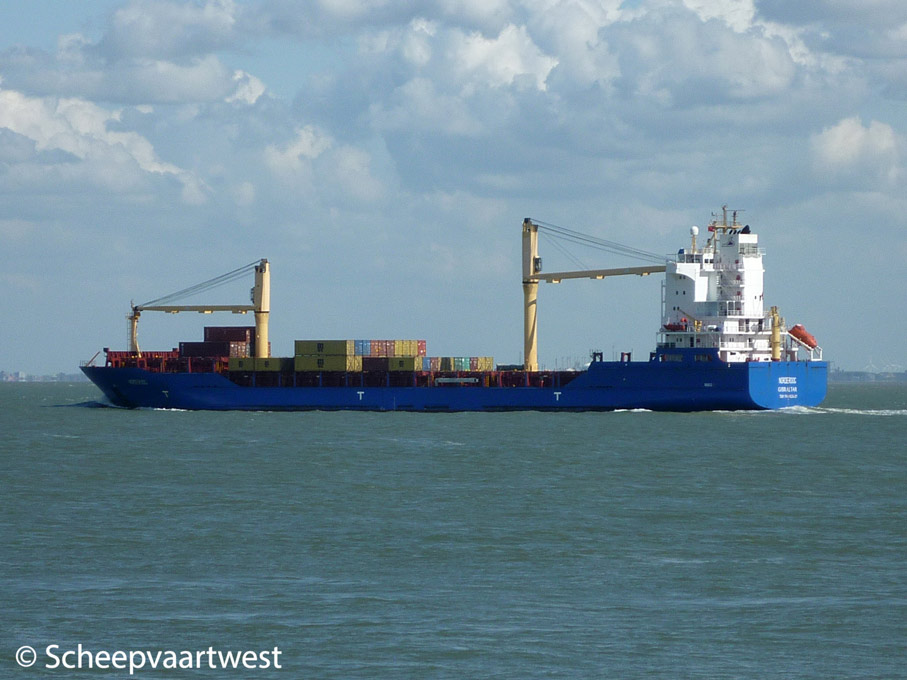

Norderoog 01
Westerschelde 12 may 2013

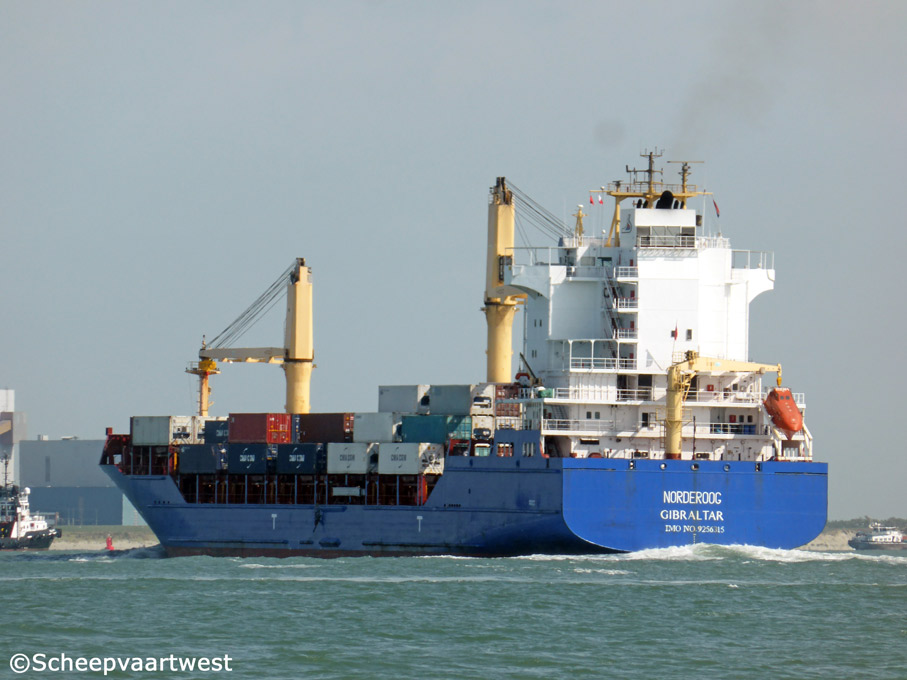

Norderoog 03
Westerschelde 28/08/15



Name

NORDEROOG

Previous names

11.2004-02.2008 Syms Peonia

Type

Containership - Equipped for carriage of dangerous goods

IMO-number

9256315

Call sign

ZDGN4

Flag

Gibraltar

Port of registry

Gibraltar

Previous flags

2004 - 2004 Germany

GT

15.633 t

DWT

16.921 t

NT

6.717 t

Number of 20ft containers

In hold: 492

On deck: 910

Total: 1.402

Container capacity 14t

870

Reefer plugs

In hold: 120

On deck 130

Total 250

Length

161,35 m overall

151,35 m registered

Breadth

25,00 m registered

Draught

9,90 m

Height above keel

50,20 m

Forecastle

33,39 m

Poop

28,99 m

Freeboard

4.015 mm

Depth

13,90 m moulded

Speed

20,1 knots

Built

2004

Keel laid

19.06.2002

Launch date

30.09.2003

Date of completion

22.11.2004

Builder

Shandong Province Weihai Shipyard
95 Haibin Road (N)
264200 Weihai , Shandong
People's Republic of China

Yard number

CZ042

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm diesel engine - 13.560 kW at 105,0 rpm

Year of manufacture: 2002

Manufacturer: Dalian Marine Diesel Co., Ltd.
1, Hai Fang Street Xigang District
Dalian, 116021 Liaoning
People's Republic of China

Propellers

1x Solid propeller (keyless) - aft at 105 rpm

Boilers

1x Steam boiler, oil fired AQ2 - 9,0 bar

Heating Surface: 19,0 m²

1x Steam boiler, exhaust gas heated AQ12 - 9,0 bar

Heating Surface: 349,0 m²

Year of manufacture: 2002

Manufacturer: Zhangjiagang Hailu Shazhou Boiler
17, Huangcheng Road South
Zhangjiagang, 215600 Jiangsu
People's Republic of China

Electric installations

3x Plants each 450/220 V - 1.200 kVA

1x Plant 450 V - 325 kVA

1x Plant 24 V - 195 Ah

1x Plant 24 V - 585 Ah

Generators

3x MaK 6M20 main diesel generatorsets each 1.200 kVA - 960 kW

Emergency generator

1x D 2866 LXE 30 diesel generator set 325 kVA

Batteries

2x Batteries for automation each195 Ah

Compressed air receivers

2x Receivers each 6.000 litres - 33,0 bar

1x Receiver 320 litres - 30,0 bar

1x Receiver 320 litres - 10,0 bar

Bow thruster

1x Transverse thruster - 800 kW, forward

Hold & hatches

4x Holds divided in 8 compartments / 8 hatches with 14 hatch covers

TTS pontoon type

Hold dimensions

Hold 1: abt. 24,15 x 15,70 x 17,20 m, narrowing

Hold 2-6: abt. 12,48 x 20,70 x 14,30 m

Hold 7: abt. 6,24 x 20,70 x 14,30 m

Hatch dimensions

Hatch 1-2: abt. 6,24 x 15,70 m

Hatch 3-13: abt. 6,24 x 20,70 m

Tank capacities

Fuel oil: 1.600 m³

Gas oil: 150 m³

Water ballast: 8.053 m²

Fresh water: 272,6 m³

Hold ventilation

6 Air changes per hour

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Diameter: 64 mm

Cargo gear

2x Mac Gregor single deck container cranes SWL:

No. 1 45,0 t / 26,00 m; 40,0 t / 29,00 m

No. 2 45,0 t / 31,00 m; 40,0 t / 35,00 m

Accommodation

20 Persons - 20 cabins

Manager

Briese Schiffahrts GmbH & Co. KG
Hafenstr. 12
26789 Leer
Federal Republic of Germany

Registered owner

Briese Schiffahrts GmbH & Co. KG MS "NORDEROOG"
Hafenstr. 12
26789 Leer
Federal Republic of Germany

Previous owners

2004 - 2004 Briese Schiffahrts GmbH & Co. KG

2004 - 2005 Westplate Shipping Co. Ltd.

2005 - 2005 Briese Schiffahrts GmbH & Co. KG MS "NORDEROOG"

2005 - 2006 Westplate Shipping Co. Ltd.

Latest data adjustment

03 October 2015
