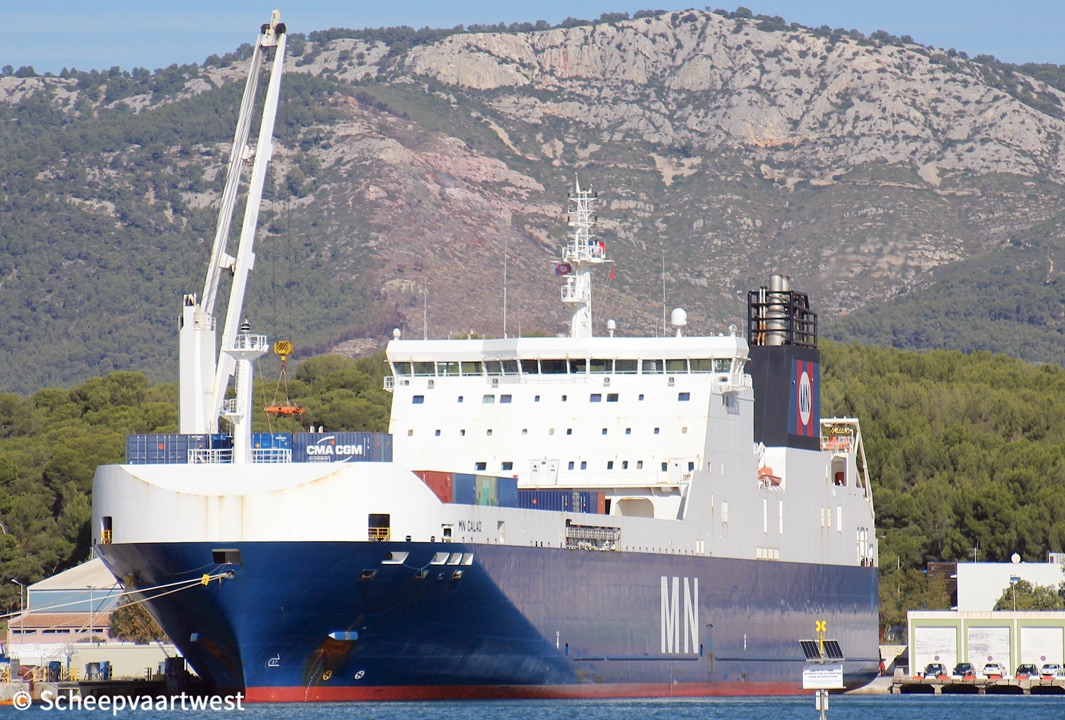

MN Calao 01

Toulon, France 16 October 2019



Name

MN CALAO

Type

Roll-On/Roll-Off carrier

IMO-number

9642394

Call sign

FIEI

Flag

France

Port of registry

Marseille

GT

23.673 t

DWT

Summer: 12.016 t

NT

7.102 t

Number of 20ft containers

849

Length

160,00 m overall

150,30 m between perpendiculars

Breadth

27,04 m extreme

Draught

Max: 8,42 m

Lanemetres

2.875 m

Depth

10,45 m

Speed

Max: 21,4 knots

Built

2013

Keel laid

05/11/2012

Launch date

29/12/2012

Date of completion

24/06/2013

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Yard number

8093

Hull material

Steel

Hull type

Double bottom

Double side

Continuous decks

1

Main engine

2x MAN 7L48/60CR - 4 stroke 7 cylinder combustion engine each 8.400 kW at 500 rpm

Total: 16.800 kW / 22.848 bhp

Propellers

1x Man Alpha type VBS 1450-ODF controllable pitch propeller - aft at 155 rpm

Diameter: 5.400 mm

Boilers

Thermal oil heater, exhaust heated

Thermal oil heater, oil fired

Generators

3x Hyundai/Himsen 7H21/32 main diesel generatorsets each 1.064 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Cummins generatorset

Bow thruster

2x Hyundai type HSC-18K thruster 1.000 kW, forward

1x Hyundai type HSC-18K thruster 1.000 kW, aft

External access

1x Stern ramp/door: 16,00 x 14,70 m + 6,20 m flaps, max. 150 t

1x Side ramp/door: 9,00 x 7,60 m + 6,45 m flaps, max 150 t

Internal access

Fixed ramp deck 3 to deck 1: cover 61,50 m long x 6,10 m wide, ramp 4,50 m clear width

Fixed ramp deck 3 to deck 5: on portside, top hinged bulkheaded door 4,60 m wide x 5,00 m high

Fixed ramp deck 5 to deck 7

Tank capacities

Ballast: 6.841 m³

Heavy fuel oil: 1.575 m²

Gas oil: 235 m²

Fresh water: 280 m²

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Lifting equipment

1x MacGregor crane - SWL 45 t at 25,00 m radius

Cabins

6x 2 berth drivers: 12 persons

Crew size

25

Manager

Compagnie Maritime Nantaise - MN
12 rue Cornulier
44032 Nantes Cedex 1
France

Registered owner

Compagnie Maritime Nantaise - MN
4, Rue Marcel Paul – CS 53214
44032 Nantes Cedex 1
France

Previous owners

2013 - 2017 Opaline

Latest data adjustment

29 November 2019
