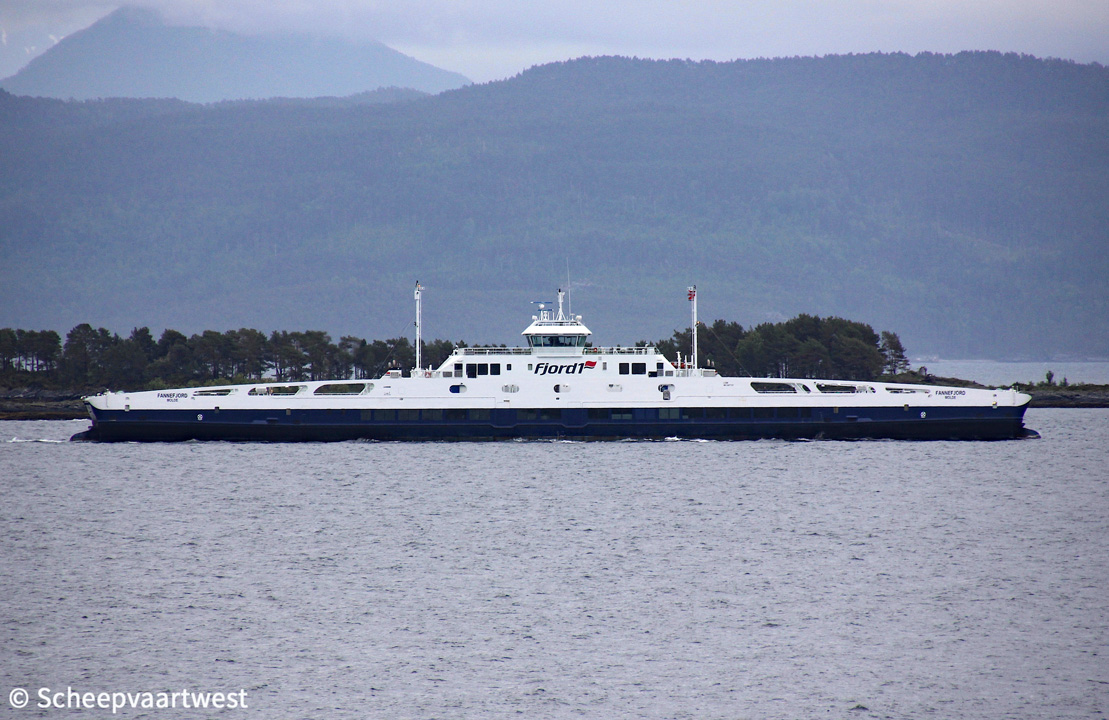

Fannefjord 02

Molde, Norway 08 June 2019

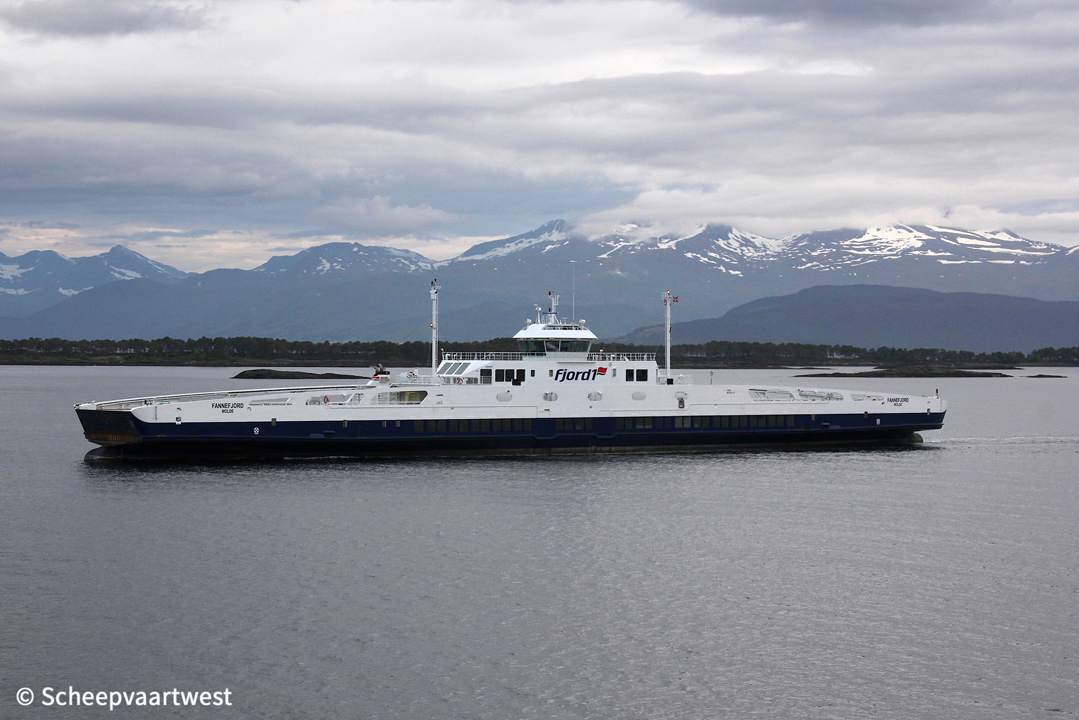

Fannefjord 01
Molde, Norway 08/06/19



Name

FANNEFJORD

Type

Roll-On/Roll-Off carrier - Ferry

IMO-number

9477127

Call sign

LCBB

Flag

Norway

Port of registry

Molde

GT

2.971 t

DWT

857 t

NT

892 t

Length

122,69 m overall

116,31 m between perpendiculars

Breadth

16,21 m

Draught

Max: 3,50 m

Depth

5,00 m

Speed

Service: 11,0 knots

Max: 16,0 knots

Route

Molde - Vestnes

Built

2010

Keel laid

28/11/2008

Launch date

15/07/2009

Date of completion

25/05/2010

Builder casco

Stocznia Polnocna S.A. (Northern Shipyard)
Gdansk
Poland

Yard number: 607/2

Builder completion

Gdanska Stocznia 'Remontowa' S.A.
Gdansk
Poland

yard number: 1994/2

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x Mitsubishi natural gas GS16R-MPTK combustion engines total 1.800 kW at 1.500 rpm

1x Mitsubishi diesel S12R-MPTA combustion engines 1.000 kW (Backup engine)

Propellers

2x Azimuth propellers each 1.000 kW

1x forward

1x aft

Deck load total

750 t

Number of passengers

390

Number of cars

125

Cars/trailers

12 trailers + 55 cars

Tank capacities

LNG: 125 m³

Fuel oil: 22 m³

Fresh water: 27 m³

Manager

Fjord1 ASA
Strandavegen 15
6905 Florø
Norway

Registered owner

Fjord1 ASA
Strandavegen 15
6905 Florø
Norway

Previous owners

25/05/2010 - 04/09/ 2012 Fjord1 MRF AS, Molde - Norway

Sister ships

Moldefjord

Romsdalsfjord

Korsfjord

Latest data adjustment

02 September 2019
