Norwegian Sea 01 June 2019 |
 |
| Norwegian Sea 01/06/19 |
|
Name |

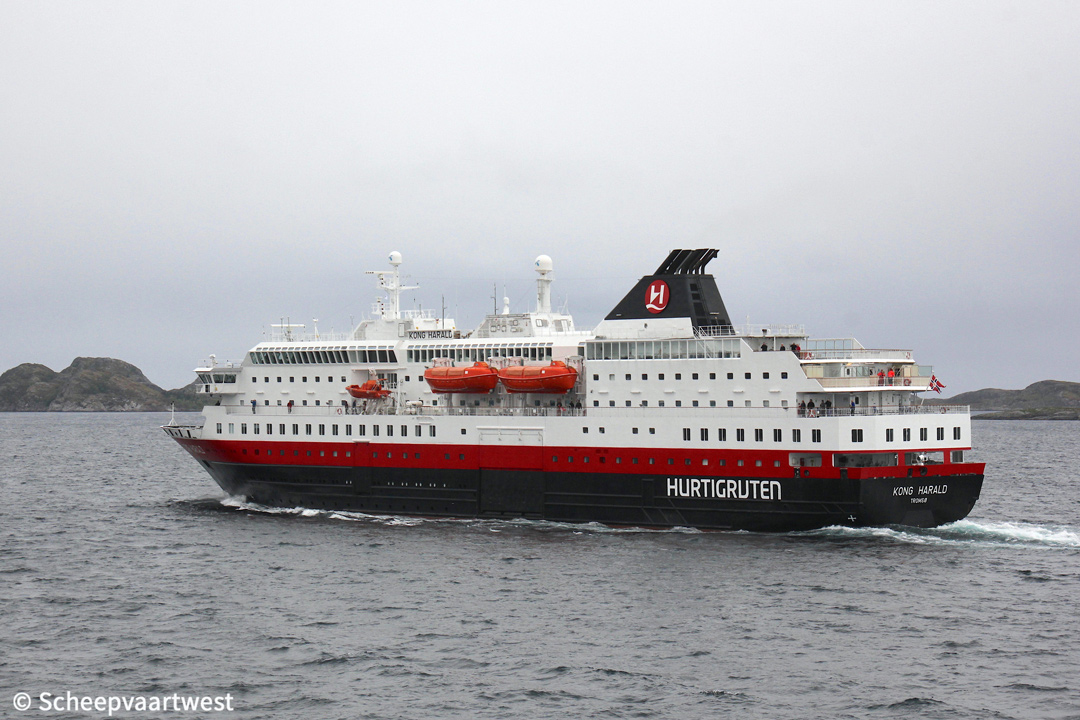

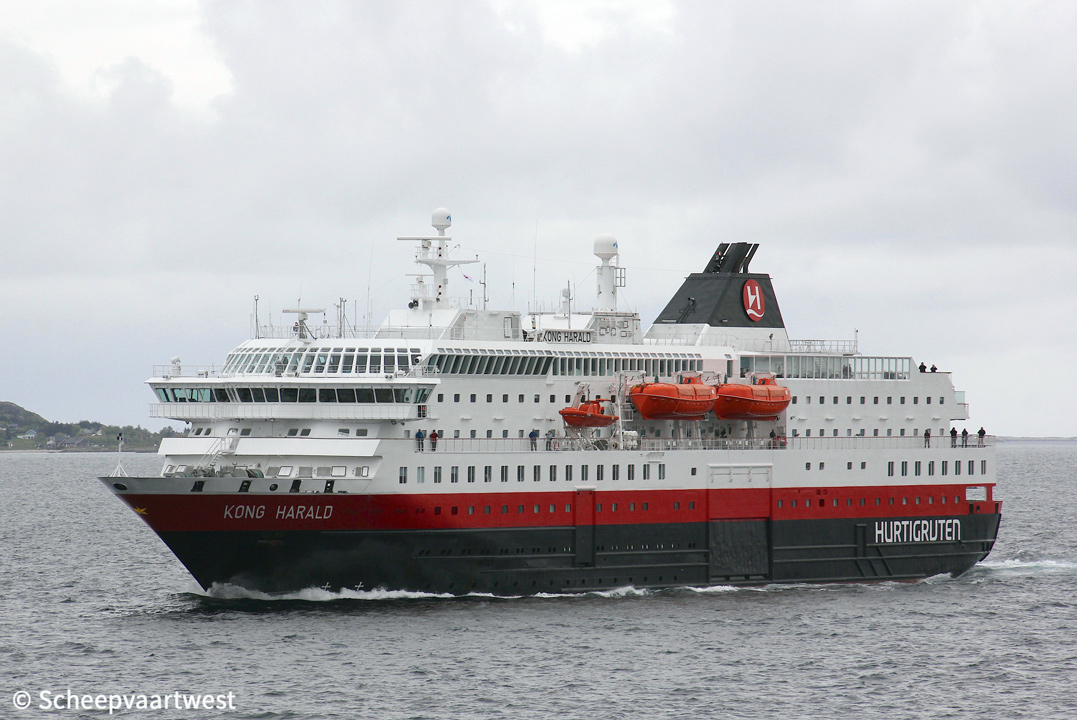

KONG HARALD |
|
Type |
Roll-On/Roll-Off cargo ship - Ferry |
|
IMO-number |
9039119 |
|
Call sign |
LGIY |
|
Flag |
Norway |
|
Port of registry |
Tromsø |
|
GT |
11.204 t |
|
DWT |
902 t |
|
NT |
4.153 t |
|
Length |
121,80 m overall 103,80 m between perpendiculars |
|
Breadth |
23,40 m extreme 19,20 m moulded |
|
Draught |
Max: 4,70 m |
|
Depth |
10,30 m |
|
Speed |
Max: 180 knots Service: 15,0 knots |
|
Route |
Bergen - Kirkenes |
|
Built |
1993 Refit: 2016 |
|
Keel laid |
07/02/1992 |
|
Launch date |
28/11/1992 |
|
Date of completion |
05/06/1993 |
|
Builder |
Volkswerft GmbH |
|
Yard number |
101 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 9 |
|
Main engine |
2x Krupp MaK 6M552C - 4 stroke 6 cylinder combustion 450 x 520 mm engines total output 9.000 kW / 12.237 bhp at 500 rpm |
|
Propellers |
2x Kamewa controllable pitch propellers - diameter 3,34 m |
|
Boilers |
2x Auxiliary boiler, exhaust gas heated - 10,0 bar 1x Auxiliary boiler, oil/gas fired - 9,0 b |
|
Shaft generator |
2x 2.300 kW each |
|
Generators |
2x BMV KRG-8 main diesel generatorsets each 1.200 kW |
|
Emergency generator |
1x Detroit Diesel diesel generatorset 212 kW |
|
Bow thruster |
2x Brunvoll each 790 kW; Forward 1x Retractable Ulstein TCNS 73/50 azimuth 1.200 bhp, aft |
|
General cargo |
791 m³ |
|
Number of cars |
50 |
|
Car space |
919 m² |
|
Passengers decks |
6 |
|
Number of passengers |
623 |
|
Number of berths |
490 in 230 cabins |
|
Tank capacities |
Ballast: 715 m³ |
|
Crew |
32 |
|
Manager |
Hurtigruten Cruise AS |
|
Operator |
Troms Fylkes D/S A/S |
|
Previous operators |
06/1993 - 03/2006 Troms Fylkes Dampskibsselskap ASA (TFDS) - Norway |
|
Registered owner |
Hurtigruten Cruise AS |
|
Sister ships |
1993 Richard With - IMO 9040429 1994 Nordlys- IMO 9048914 |
|
Latest data adjustment |
31 July 2019 |
