Westerschelde 06 August 2018 |
 |
| Westerschelde 01/04/19 |
|
Name |

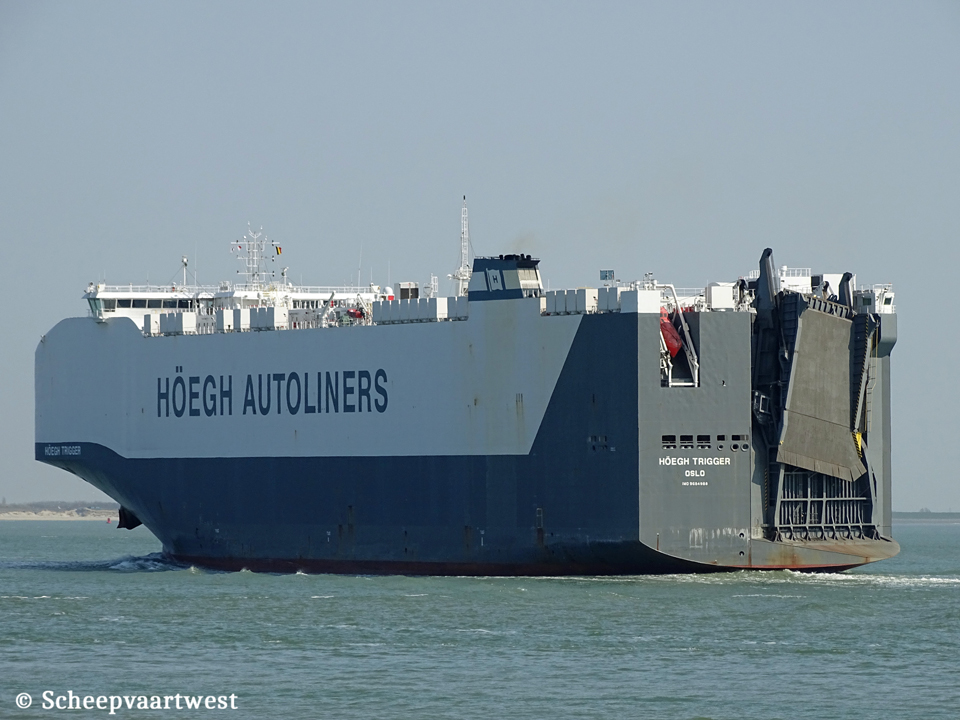

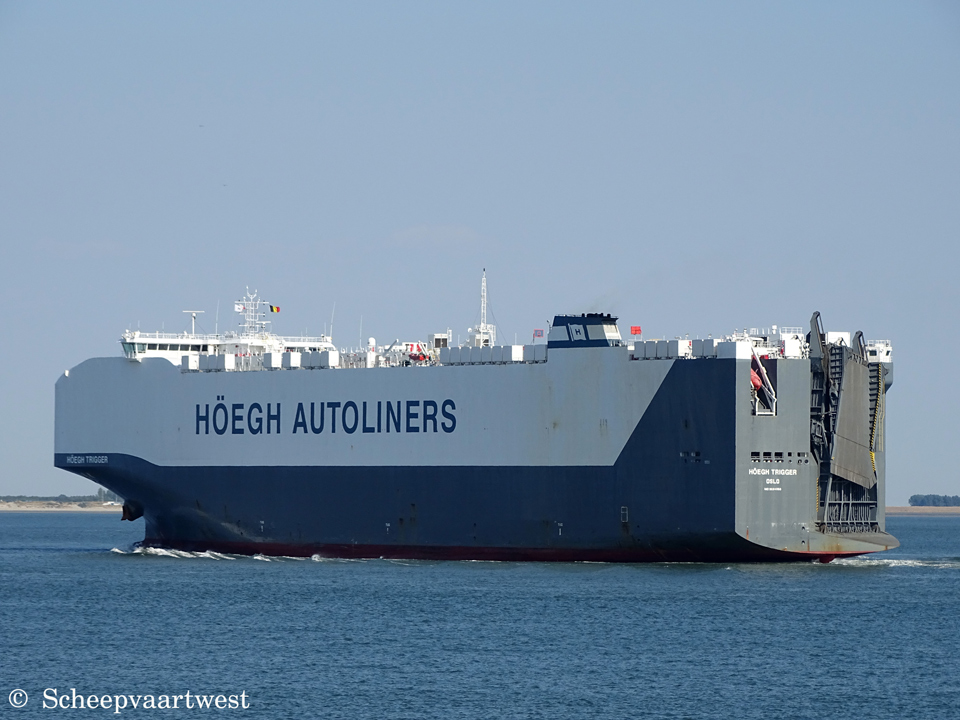

HÖEGH TRIGGER |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCTC - Pure Car and Truck Carrier - Post-Panamax |
|
IMO-number |
9684988 |
|
Call sign |
LAUK7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
76.420 t |
|
DWT |
22.088 t |
|
NT |
23.242 t |
|
Length |
199,94 m overall 193,08 m between perpendiculars |
|
Breadth |
40,77 m extreme 36,50 m moulded |
|
Draught |
Max: 10,32 m |
|
Air draft |
46,90 m |
|
Depth |
14,40 m |
|
Speed |
Max: 19,0 knots |
|
Built |
2015 |
|
Keel laid |
25/06/2014 |
|
Launch date |
17/06/2015 |
|
Date of completion |
17/11/2015 |
|
Builder |
Xiamen Shipbuilding Industry Co., Ltd. Xiamen China |
|
Yard number |
462B |
|
Hull material |
Steel |
|
Hull type |
Double bottom Single side |
|
Main engine |
1x MAN-B&W 6S60ME-C - 2 stroke 6 cylinder combustion engine 11.735 kW |
|
Propellers |
1x Fixed pitch propeller Builder: Nakashima propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Exhaust) Mission OS-2000 1x Auxiliary boiler, oil/gas fired (Oil fired) Builder: Alfa Laval Aalborg |
|
Generators |
1x 5L21/31 main diesel generatorset 950 kW 2x 9L21/31 main diesel generatorsets each 1.850 kW Builder: CSSC marine power Co., Ltd. |
|
Emergency generator |
1x Cummins QSM11 diesel generatorset |
|
Bow thruster |
1.800 kW |
|
Number of decks |
14 Hoistable: 5 |
|
Deck space |
71.400 m² |
|
Number of cars |
8.500 |
|
Door openings |
Stern: 12,00 x 6,50 m Side: 6,50 x 6,50 m |
|
Ramps |
Stern: 45,00 m / 375 t Side: 25,00 m / 22 t |
|
Tank capacities |
Ballast: 6.907 m³ |
|
Anchor equipment |
Length: 715,00 t Diameter: 87 mm |
|
Manager |
Hoegh Technical Management Inc. |
|
ISM manager |
Höegh Autoliners Management AS |
|
Registered owner |
Höegh Autoliners Shipping AS Oslo Norway |
|
Latest data adjustment |
30 June 2021 |
