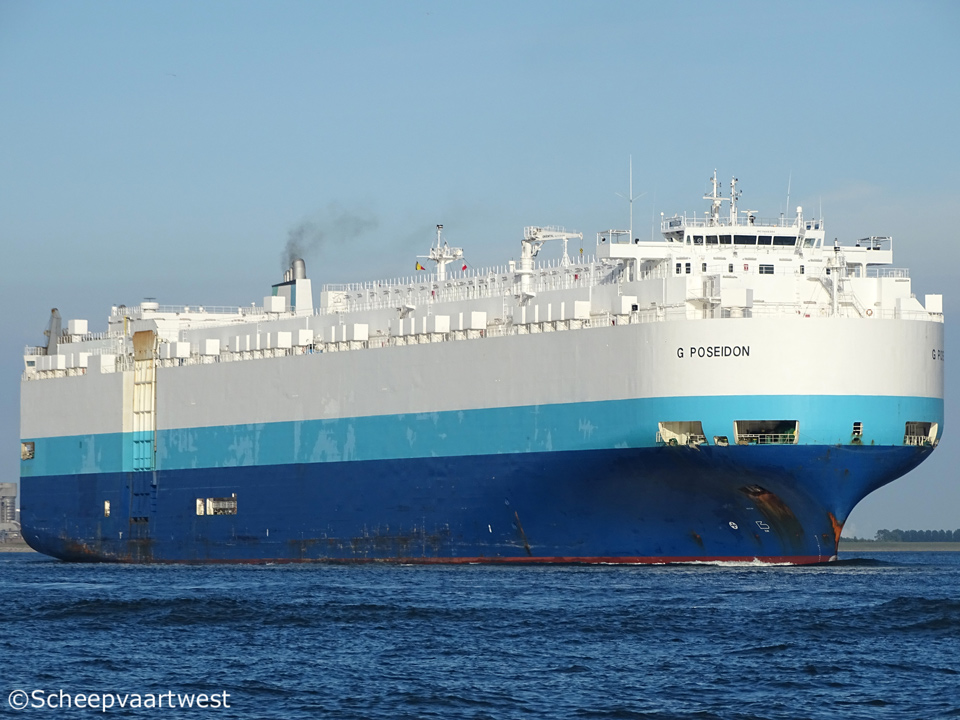

Westerschelde 31 May 2017 |
 |
 |
 |
||

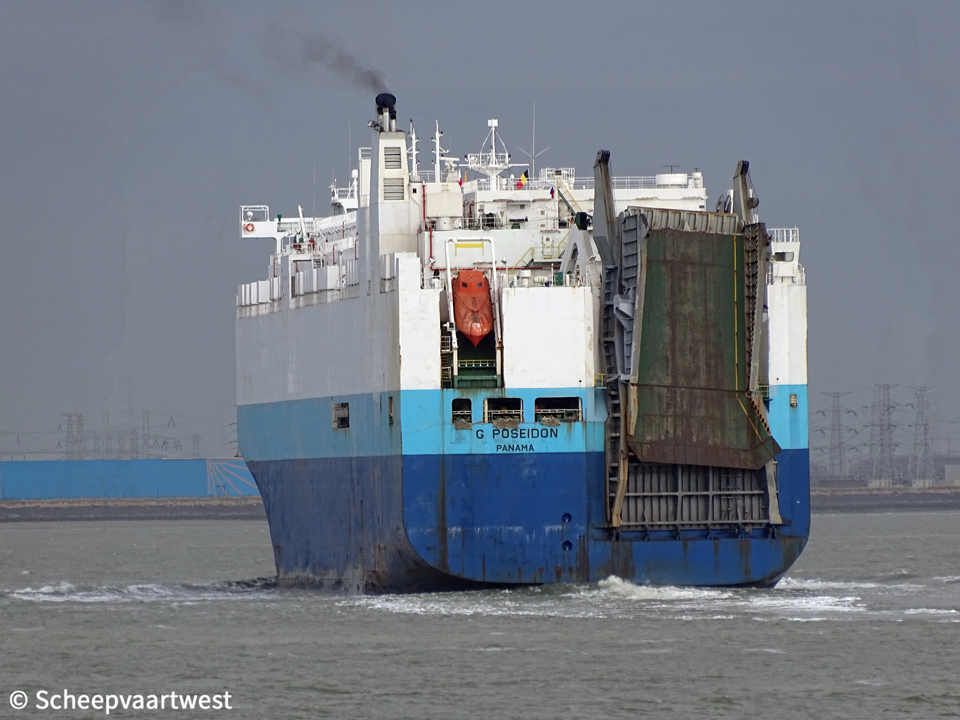

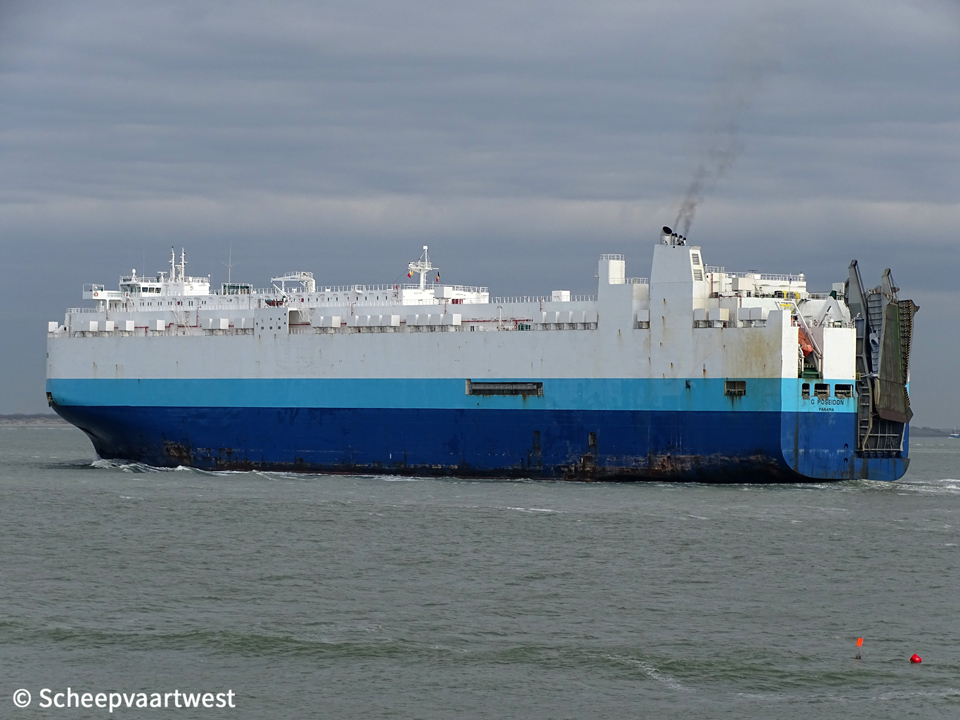

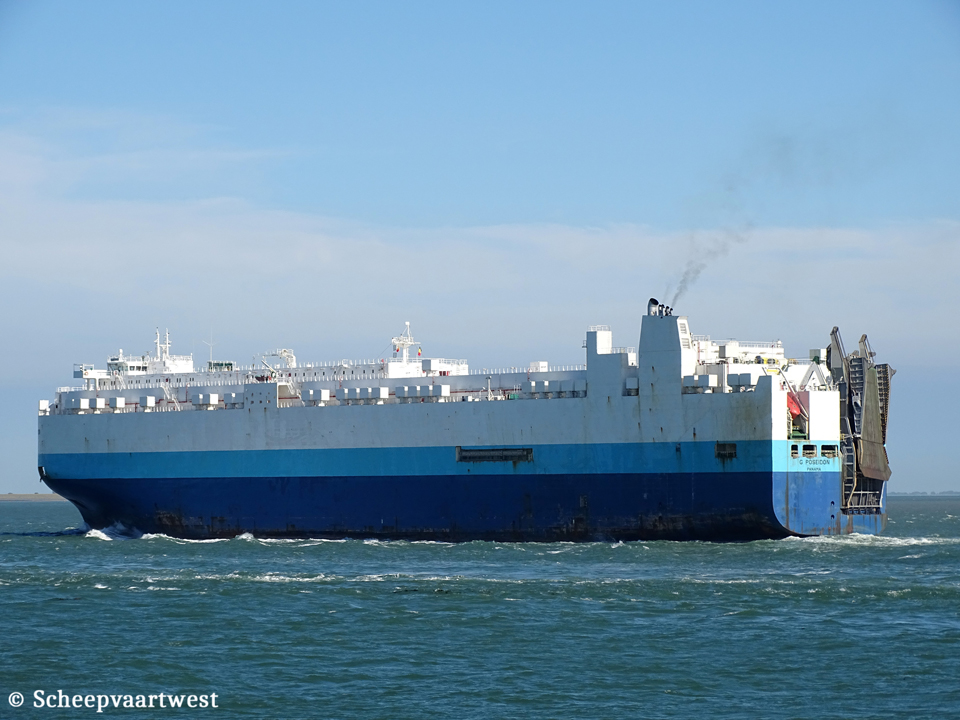

| Westerschelde 02/04/20 | Westerschelde 02/04/20 | Westerschelde 01/08/20 |
|
Name |
G POSEIDON |
|
Previous names |
2011 - 06/2014 B Ladybug |
|
Type |
Roll-On/Roll-Off carrier - Pure Car and Truck Carrier Vehicle carrier |
|
IMO-number |
9445394 |
|
Call sign |
HP6652 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
72.408 t |
|
DWT |
Summer: 27.003 t |
|
NT |
26.226 t |
|
Length |
232,39 m overall 222,40 m between perpendiculars |
|
Breadth |
32,31 m extreme |
|
Draught |
10,02 m |
|
Depth |
32,64 m |
|
Speed |
20,0 knots |
|
Built |
2011 |
|
Keel laid |
10/05/2010 |
|
Launch date |
17/07/2010 |
|
Date of completion |
03/03/2011 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Samho South Korea |
|
Yard number |
S399 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/HHI 8S60ME-C8 - 2 stroke 8 cylinder 600 x 2.400 mm combustion engine 19.040 kW / 31.640 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Builder: Kangrim Heavy Industries Co.,Ltd. |
|
Generators |
3x Hyundai 7H21/32 main diesel generatorsets Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Bow thruster |
1x 1.500 kW |
|
Emergency generator |
1x Doosan AD086TIS diesel generatorset Manufacturer: Doosan Infracore Co., Ltd. |
|
Number of cars |
8.011 |
|
Number of ramps |
2 |
|
Tank capacities |
Ballast: 12.849,5 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 87 m |
|
Crew |
22 |
|
ISM & commercial manager |
Doriko Ltd. 13th floor, Sunhwa Building 89 Seosomum-Ro Chung-Ku Seoul South Korea |
|
Registered owner |
G Poseidon Corporation Care of Doriko Ltd. Room 1307, Sunhwa Building, 5-2, Sunhwa-dong, Jung-gu, Seoul, 100-731 South Korea |
|
Chartered |
Hyundai Glovis |
|
Latest data adjustment |
13 June 2022 |
