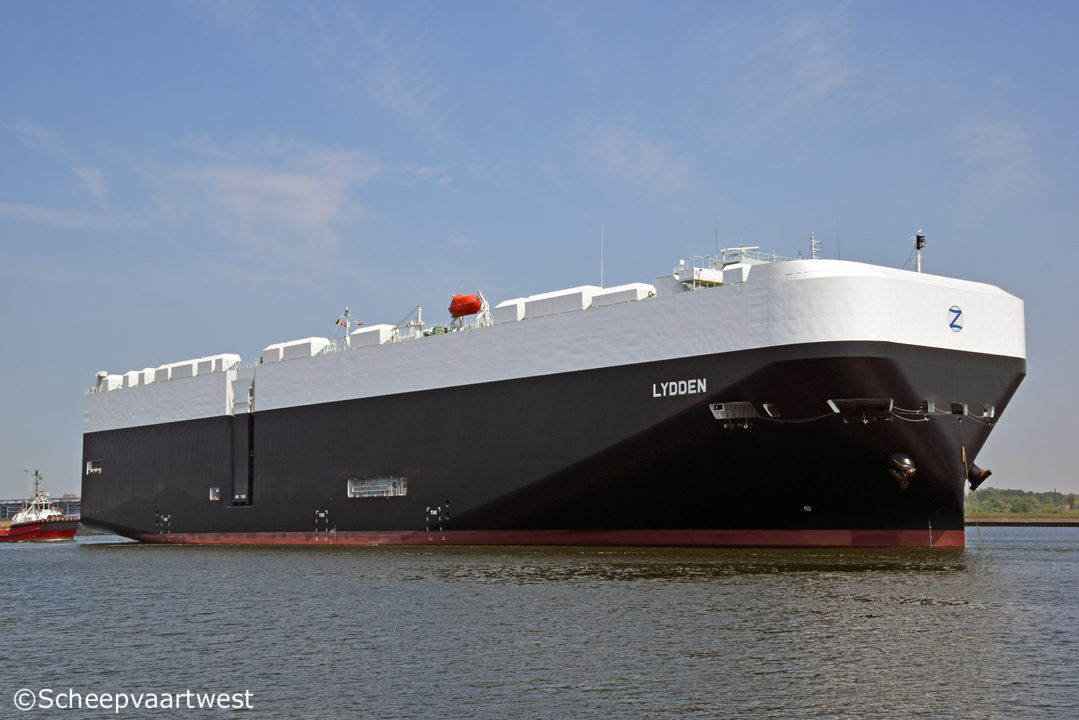

Lydden 03

Zeebrugge 22 May 2018

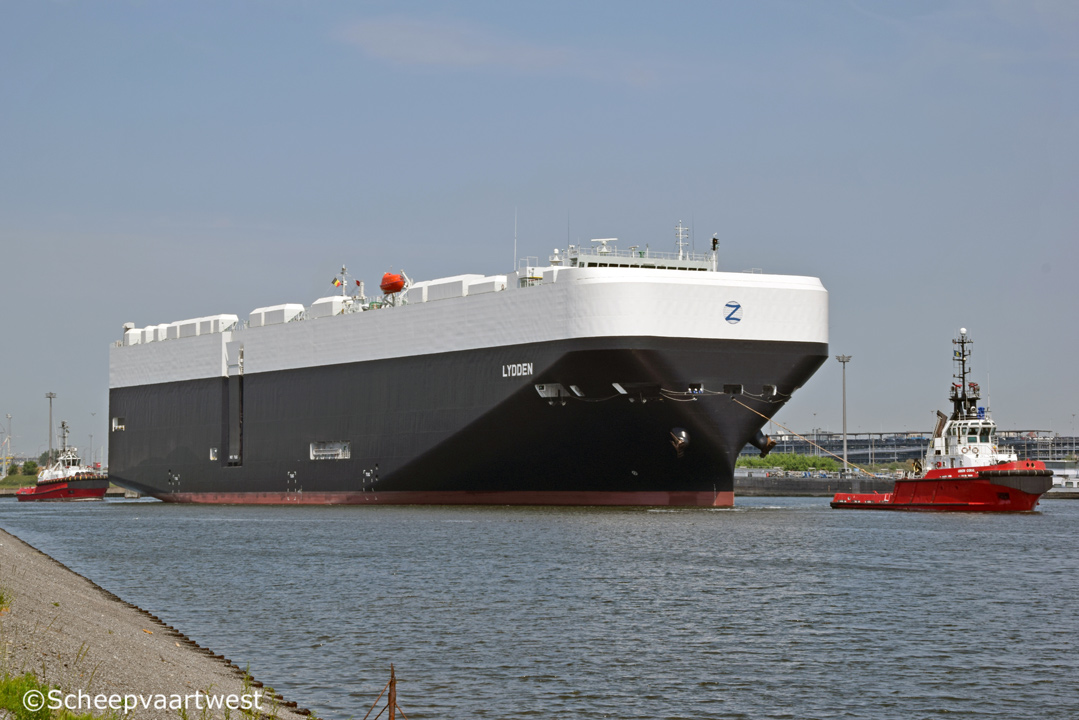

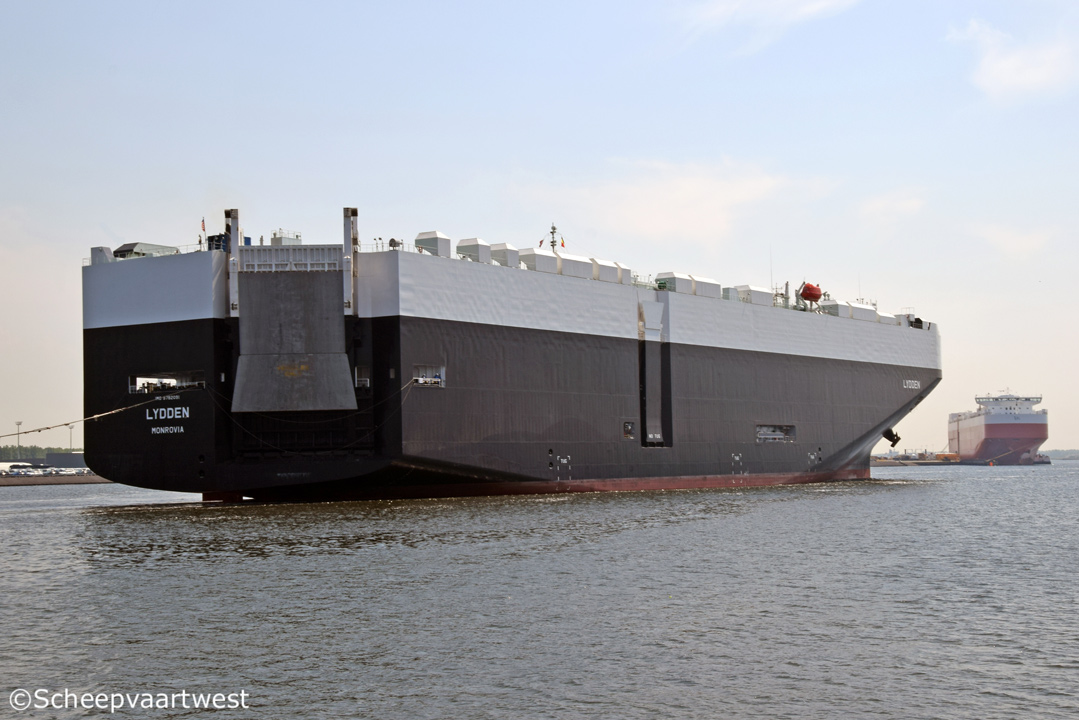

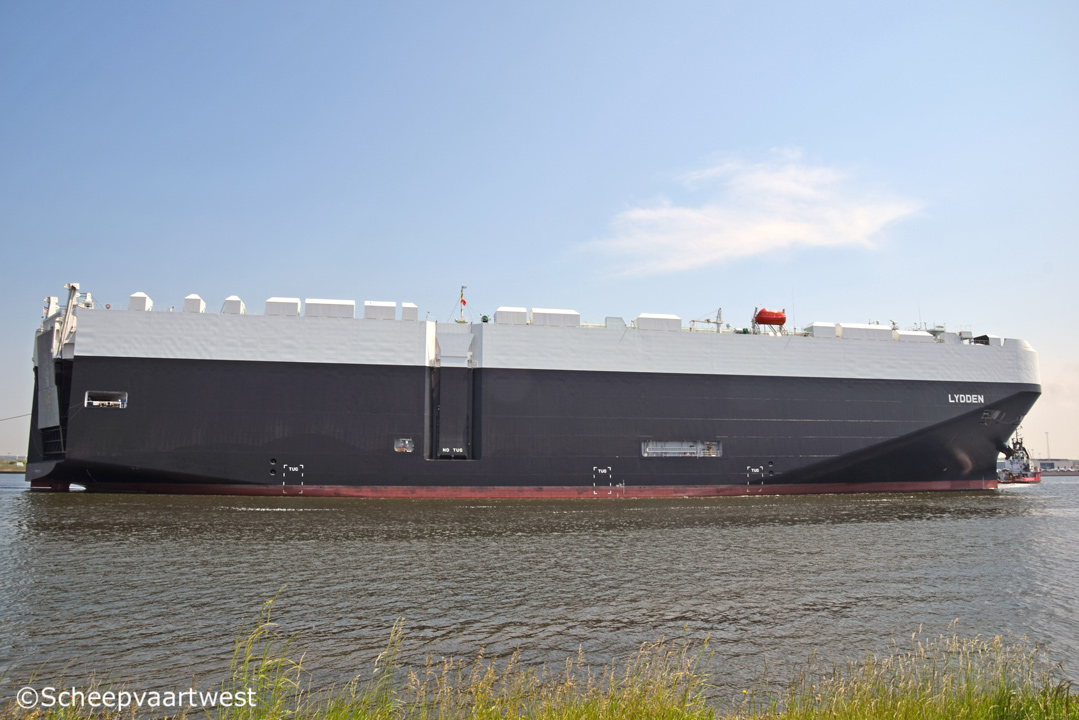

Lydden 04   Lydden 07   Lydden 01
Zeebrugge 22/05/18 Zeebrugge 22/05/18 Zeebrugge 22/05/18



Name

LYDDEN

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9782091

Call sign

D5PY2

Flag

Liberia

Port of registry

Monrovia

GT

72.684 t registered

Suez: 79.635 t

DWT

Summer: 18.168 t

Winter: 17.004 t

NT

22.138 t registered

Panama: 72.443 t

Suez: 74.909 t

Displacement

38.487 t

Light ship

20.319 t

Length

199,96 m

Breadth

38,00 m

Draft

Summer: 9,73 m

Winter: 9,53 m

Moulded L x B x D

196,00 x 38,00 x 14,68 m

Registered L x B x D

196,00 x 38,00 x 21,15 m

Freeboard

Summer: 4.994 mm

Depth

14,68 m moulded

Speed

20,8 knots

Built

2018

Keel laid

01/12/2015

Launch date

06/11/2017

Date of completion

20/03/2018

Builder

Shin Kurushima Dockyard Co., Ltd.
Japan

Yard number

5952

Hull material

Steel

Main engine

1x 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.200 kW at 104,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 660 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,75 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators total 4.375 kVA

Number of cars

7.429

Tank capacities

Fuel oil: 2.852,40 m³

fresh water; 437,84 m³

Manager

Zodiac Maritime Limited
5th Floor, Portman House
2 Portman Street
London,W1H 6DU
United Kingdom

Registered owner

Fair Wind Navigation, S.A.

Latest data adjustment

26 June 2018
