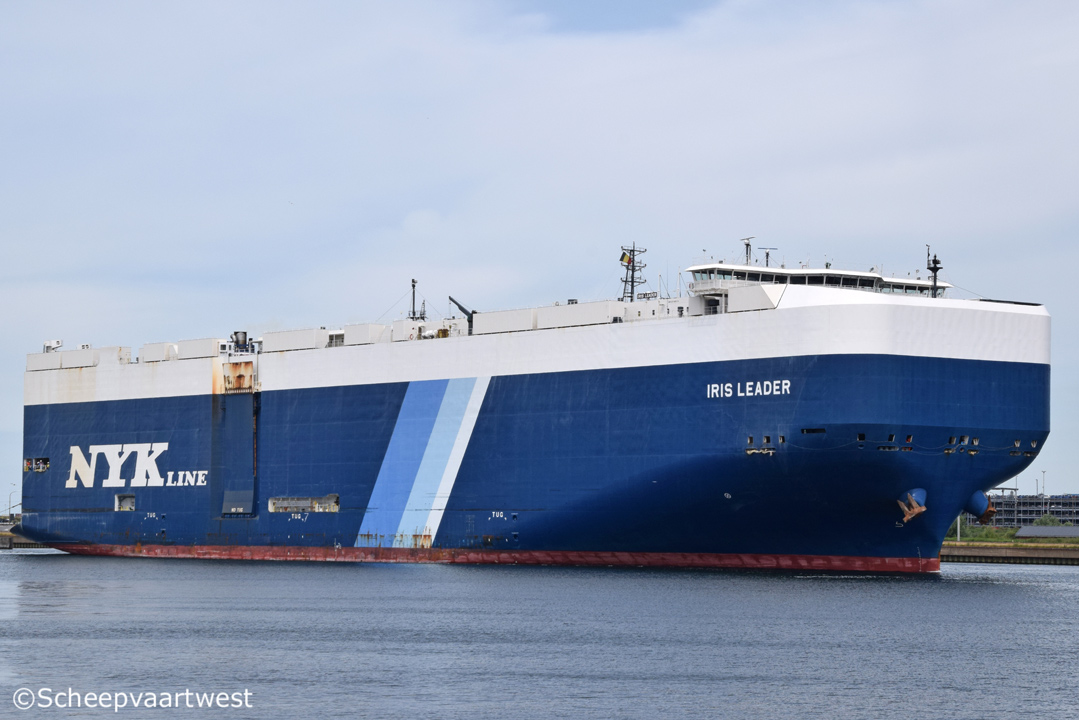

Iris Leader 01

Zeebrugge 23 June 2018

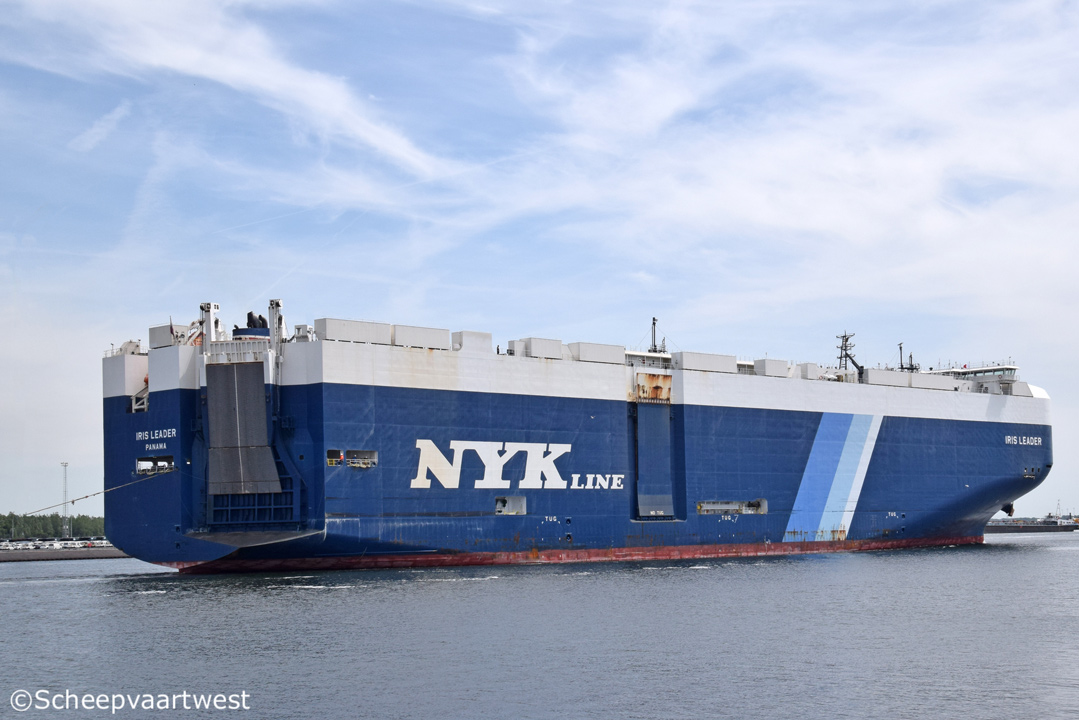

Iris Leader 04   Iris Leader 05
Zeebrugge 23/06/18 Zeebrugge 23/06/18



Name

IRIS LEADER

Type

Roll-On/Roll-Off carrier - Vehicle carrier

IMO-number

9748019

Call sign

3FLB7

Flag

Republic of Panama

Port of registry

Panama City

GT

70.826 t registered

DWT

20.853 t

NT

23.217 t registered

Length

199,99 m

Breadth

34,80 m

Draught

Summer: 10,62 m

Moulded L x B x D

192,00 x 34,80 x 15,29 m

Registered Lx B x D

194,17 x 34,80 x 21,96 m

Freeboard

Summer: 4.706 mm

Depth

15,29 m moulded

Speed

Trial: 22,4 knots

Built

2015

Keel laid

30/06/2014

Launch date

12/09/2015

Date of completion

11/12/2015

Builder

Imabari Shipbuilding Co., Ltd. Marugame Headquarters
Japan

Yard number

1620

Hull material

Steel

Main engine

1x 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.800 kW at 105,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 590 mm

Propellers

1

Boilers

1x Auxiliary Vertical boiler - 6,9 bar

Evaporation: 4,66 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

5x Generators total 5.225 kVA

Number of cars

7.125

Tank capacities

Fuel oil: 3.158,84 m³

Fresh water: 718,03 m³

Manager

NYK Shipmanagement Ptr Ltd.

Operator

NYK-Line

Registered owner

Nobleza Maritima S.A.

Latest data adjustment

26 June 2018
