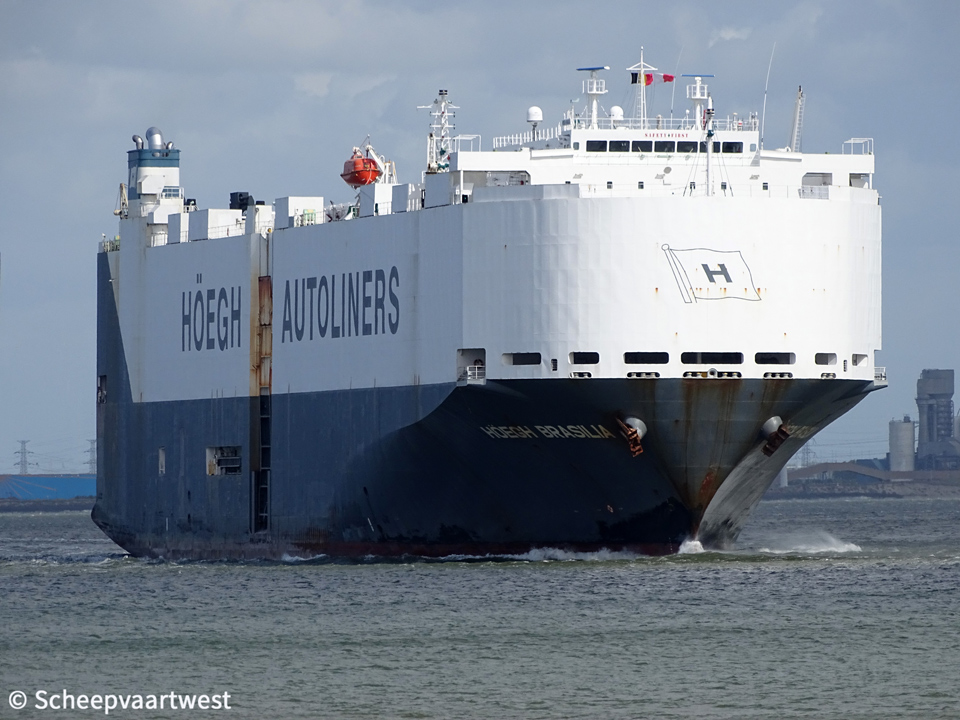

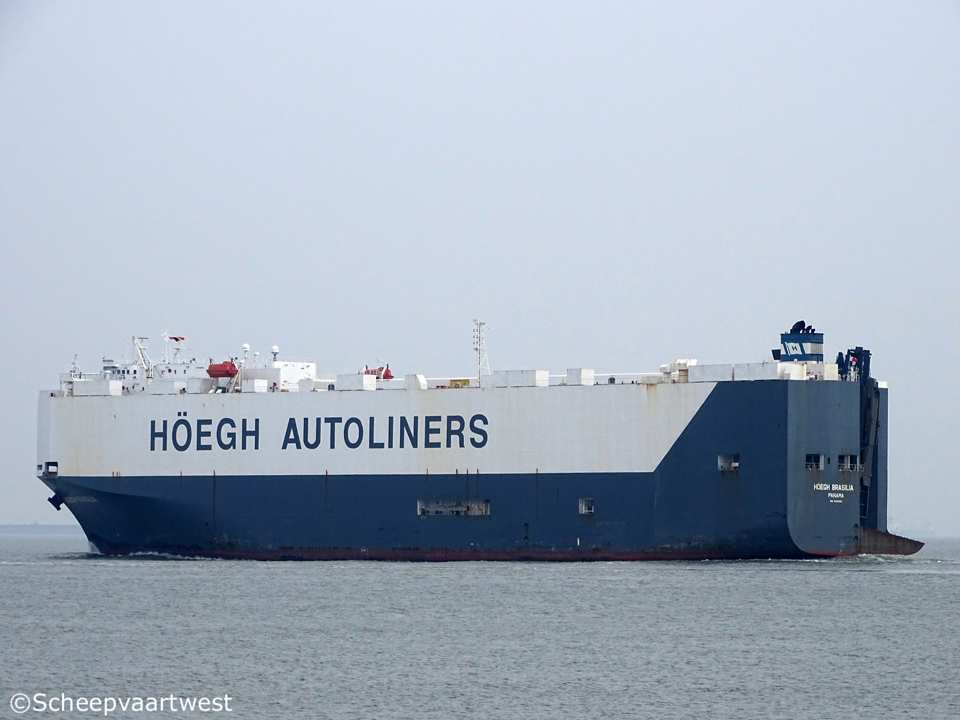

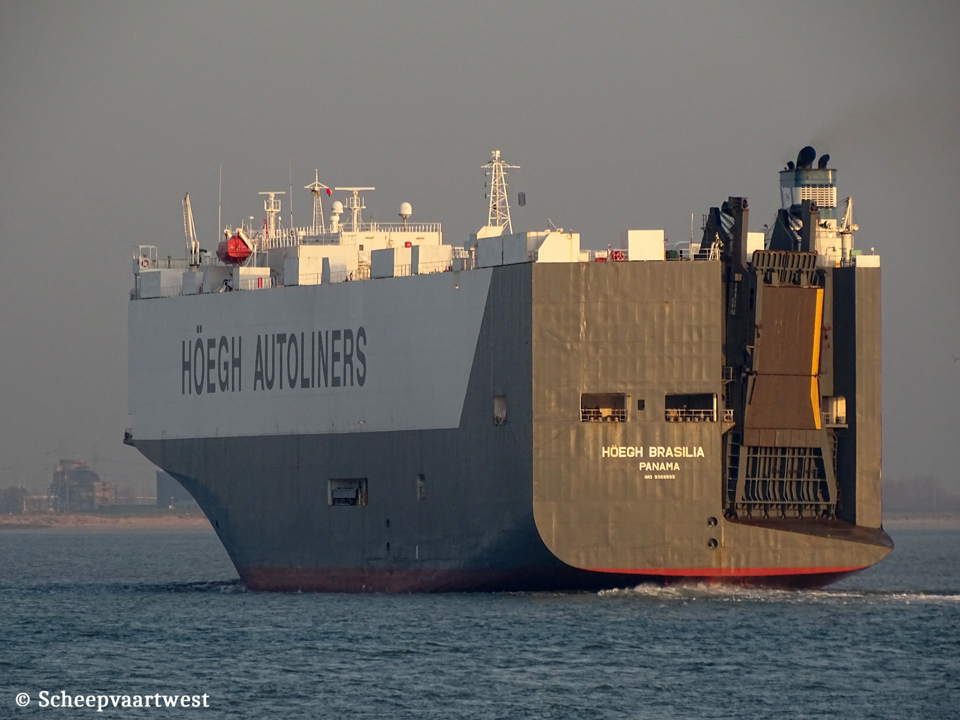

Höegh Brasilia 01

Westerschelde 25 March 2018



Name

HÖEGH BRASILIA

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Rure Car and Truck Carrier

IMO-number

9368895

Call sign

3FHU3

Flag

Republic of Panama

Port of registry

Panama City

GT

51.731 t registered

DWT

Summer: 17.252 t

NT

15.519 t registered

Length

179,90 m overall

Breadth

32,20 m moulded

Draught

Summer:9,62 m

Moulded L x B x D

170,00 x 32,20 x 15,07 m

Registered L x B x D

174,00 x 32,20 x 21,62 m

Freeboard

Summer: 5.485 mm

Depth

15,07 m moulded

Speed

Max: 21,1 knots

Built

2007

Keel laid

05/06/2006

Launch date

03/11/2006

Date of completion

19/04/2007

Builder

Tsuneishi Heavy Industries (Cebu) Inc.
Balamban
Philippines

Yard number

089

Hull material

Steel

Hull type

Single hull

Main engine

1x Mitsui/MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 14.120 kW / 19.203 bhp at 100,0 rpm

Manufacturer: Engineering & Shipbuilding Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 610 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 3,35 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 3.725 kVA

Number of cars

4.379

Ramp capacity

Max door width: 13,80 m

Max deck height: 5,10 m

Max ramp capacity: 100 t

Tank capacities

Fuel oil: 3.414 m³

Fresh water: 441 m³

Manager

Union Marine Management Services Pte Ltd.
3 HarbourFront Place

#12-01 HarbourFront Tower 2

Singapore - 099254

Repuiblic of Singapore

Operator

Höegh Autoliners
Drammensveien 134
Oslo
Norway

Registered owner

Chijin Shipping S.A.

Japan

Latest data adjustment

05 May 2018
