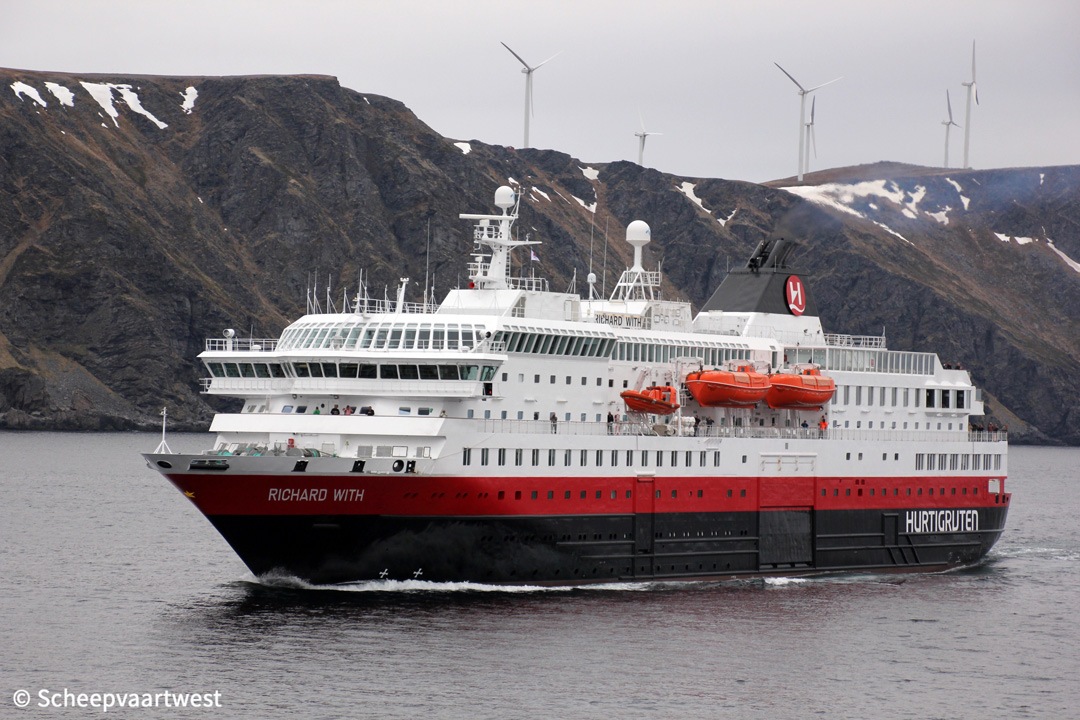

Sorrøysundet, Norway 27 September 2017 |
 |
 |
 |
||
| Sorrøysundet 27/09/17 | Norwegian Sea 05/06/19 | Norwegian Sea 05/06/19 |
|
Name |
RICHARD WITH |
|
Type |
Roll-On/Roll-Off passengers vessel - Car ferry |
|
IMO-number |
9040429 |
|
Call sign |
LGWH |
|
Flag |
Norway |
|
Port of registry |
Tromsø |
|
GT |
11.205 t |
|
DWT |
Summer: 850 t |
|
NT |
4.153 t |
|
Displacement |
6.260 t |
|
Length |
121,80 m overall 103,80 m between perpendiculars |
|
Breadth |
23,40 m extreme 19,20 m moulded |
|
Draught |
4,70 m |
|
Lane metres |
600 m |
|
Depth |
10,30 m |
|
Speed |
Service: 15,0 knots Max.: 18,6 knots |
|
Routes |
Bergen - Kirkenes |
|
Built |
1993 Refit: 2013 / 2018 |
|
Keel laid |
31/03/1992 |
|
Launch date |
14/02/1993 |
|
Date of completion |
22/11/1993 |
|
Builder |
VEB Volkswert GmbH Stralsund |
|
Yard number |
103 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 9 |
|
Main engine |
2x Krupp MaK 6M552C - 4 stroke 6 cylinder 450 x 520 mm combustion engines 9.000 kW / 12.237 bhp at 500 rpm |
|
Propellers |
2x Kamewa controllable pitch propeller - Diameter: 3,34 m |
|
Boilers |
2x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x Bergen KRG-8 main diesel generatorsets each 1.200 kW |
|
Emergency generator |
1x Diesel generatorset 265 kVA |
|
Bow thruster |
2x Brunvoll each 790 kW, forward 1x Brunvoll each 790 kW, aft |
|
Insulated cargo capacity |
880 m³ |
|
Passengers decks |
6 |
|
Number of cars |
50 |
|
Car space |
919 m² |
|
Number of cargo decks |
1 |
|
Passengers deck |
6 |
|
Total decks |
8 |
|
Number of passengers |
691 |
|
Number of berths |
466 |
|
Number of cabins |
219 |
|
Tank capacities |
Water ballast: 733,5 m³ Fuel oil: 679 m³ |
|
Crew |
32 |
|
Manager |
Hurtigruten Cruise AS |
|
Operator |
Hurtigruten ASA |
|
Previous operators |
11/1993 - 12/2002 Ofotens og Vesteraalens Dampskibsselskab ASA (OVDS), Narvik - Norway 12/2002 - 12/2005 Richard With KS, Eggesbønes - Norway Operator:12/2002 - 03/2006 Ofotens og Vesteraalens Dampskibsselskab ASA (OVDS), Narvik - Norway 12/2005 Kystruten KS, Oslo- Norway |
|
Registered owner |
Coastal I AS |
|
Previous shipping company |
Ofoten & Vesteraalens Dampskibsselskab A/S, Bodø/Narvik - Norway |
|
Latest data adjustment |
18 November 2019 |
