Westerschelde 20 July 2017 |
|
Name |

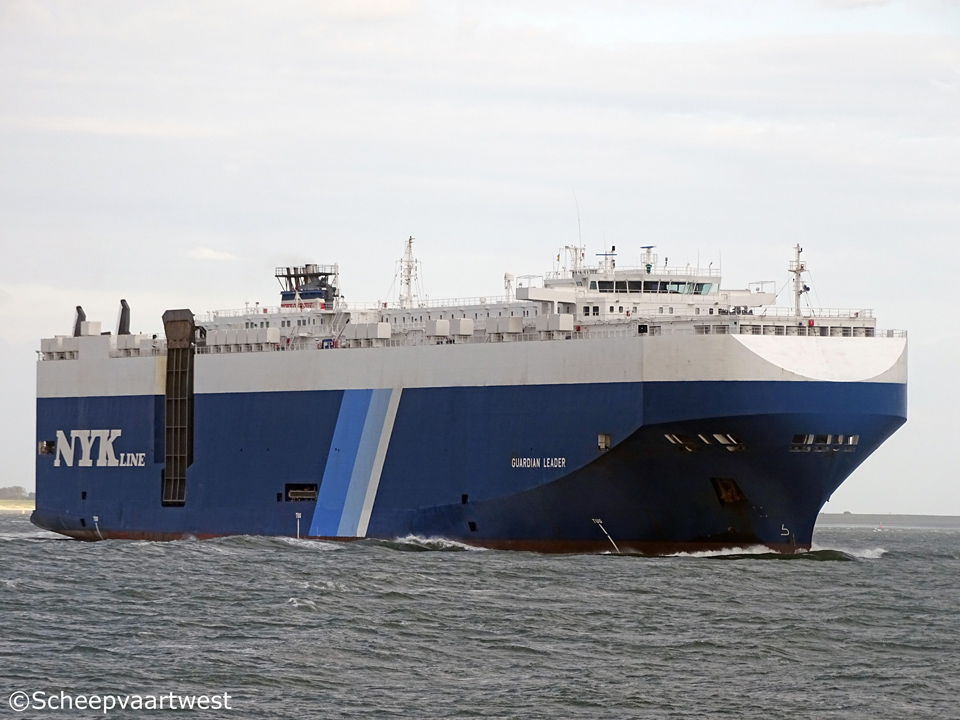

GUARDIAN LEADER |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCC - Pure Car Carrier |
|
IMO-number |
9388716 |
|
Call sign |
C6WZ2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
Summer: 21.182 t |
|
NT |
21.037 t |
|
Length |
199,98 m overall 187,91 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
10,00 m |
|
Air draft |
46,00 m lightship |
|
Depth |
19,98 m moulded |
|
Speed |
Max.: 20,2 knots |
|
Built |
2008 |
|
Keel laid |
28.09.2007 |
|
Launch date |
14.06.2008 |
|
Date of completion |
23.07.2008 |
|
Builder |
Stocznia Gdynia S.A. |
|
Yard number |
8168/21 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse bulkheads: 3 |
|
Number of decks |
14 |
|
Main engine |
1x H. Cegielski/Wärtsilä NSD 7RTA 62U - 2 stroke sigle acting 7 cylinder 600 x 2.400 mm diesel engine MCR: 15.540 kW at 113 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated Builder: Aalborg Industries A/S |
|
Generators |
3x MAN B&W 7L28/32H main diesel generatorsets |
|
Emergency generator |
1x MAN D2866 LXE30 diesel generatorset |
|
Bow thruster |
1x Brunvoll FU 80 LTC 2250 - 1.300 kW |
|
Car decks |
13 |
|
Numpber of cars |
6.658 |
|
Car deck areas |
Total: 54.900 m² |
|
Ro-Ro ramps |
1x Starboard: 25,00 x 7,00 m 22 t 1x Starboard aft: 38,00 x 7,00 m 150 t |
|
Tank capacity |
Fuel oil: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Potable water: 260 m³ Ballast water: 7.400 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew size |
29 |
|
Manager |
Stamco Ship Management Co. Ltd. |
|
Operator |
NYK RoRo |
|
Registered owner |
Guardian Maritime Limited Athens |
|
Latest data adjustment |
25 September 2017 |
