Kattegat 01

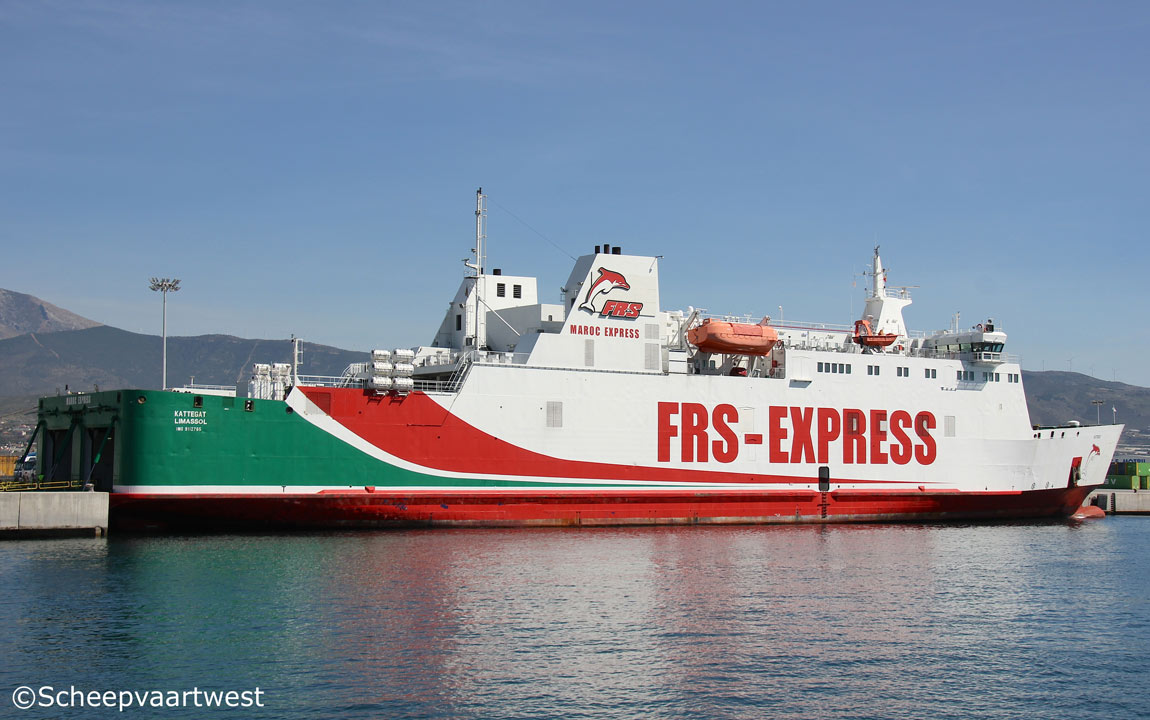

Motril - Spain 07 March 2017



Name

KATTEGAT

Previous names

04.1996 - 09.2011 Maren mols
09.2011 - 02.2014 Kattegat

Type

Roll-On/Roll-Off carrier - Passengers ferry

IMO-number

9112765

Call sign

5BKX3

Flag

Cyprus

Port of registry

Limassol

Previous flags

04.1996 - 09.2011 Denmark, Odden Færgehavn - Call sign: OZGO

GT

14.379 t

DWT

4.418 t

NT

4.313 t

Length

136,40 m overall125,30 m between perpendiculars

Breadth

24,00 m

Draught

5,50 m

Lanemetres

1.240 m

Freeboard

600 mm

Depth

13,85 m

Speed

Max.: 21,9 knots

Routes

05.1996 - 12.199 Ebeltoft - Odden
01.2000 -10.2013 Århus - Kalundborg
10.2013 - 04.2014 Algeciras - TangerMotril - Tanger

Built

1996

Launch date

06.10.1995

Date of completion

19.04.1996

Builder

Orskov Christensens Staalskibsvaerft A/S
Denmark

Yard number

191

Hull material

Steel

Watertight compartments

14

Continuous decks

9

Main engine

2x MAN B&W 9L35MC - 2 stroke 9 cylinder 350 x 1.050 mm diesel engines each 8.612 kW / 11.700 hp at 210 rpmBuilt: 1995Builder: MAN B & W DIesel A/S Alpha Diesel, Frederikshavn - Denmark

Propellers

2x Screw propeller controllable pitch - aft at 210 rpm

Boilers

1x CHM 102,80 m² - 5,0 bar

Electric installations

Power voltage: 400 VLighting voltage: 220 VFrequency: 50 Hz

Shaft generator

2x Each 1.385 kVA - 1.108 kW

Generators

1x Generatorset 344 kVA - 275 kW - 1.340 HP2x Generatorsets each 1.581 kVA - 1.265 kW - 1.340 hp

Bow thruster

2

Number of passengers

616

Number of cars

344

Tank capacities

Fuel oil: 321 m³

Manager

Förde Reederei Seetouristik

Operator

FRS Iberia S.L.

Registered owner

Paschamo Shipping Company LimitedLimassol
Cyprus

Previous owners

04.1996 - 09.2011 Mols Linien A/S, Danmark
09.2011 - 10.2013 Operator: Kattegatruten A/S (FRS), Århus, Danmark

Sister ships

Tanger Express - Ex Mette Mols

Latest data adjustment

12 April 2017
