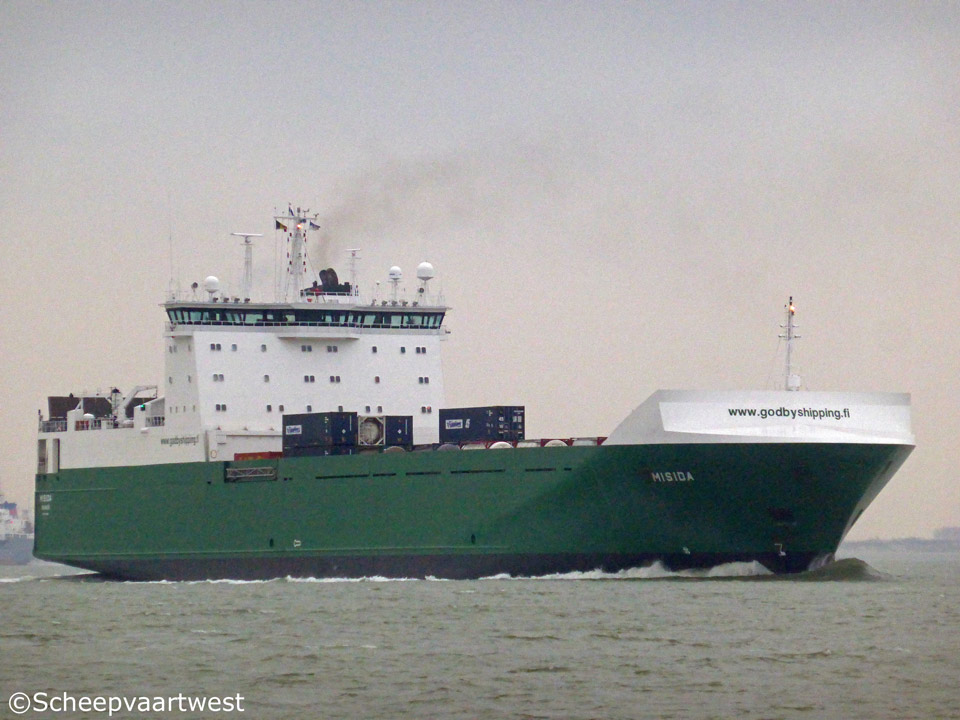

Westerschelde 13 April 2016 |
 |
|

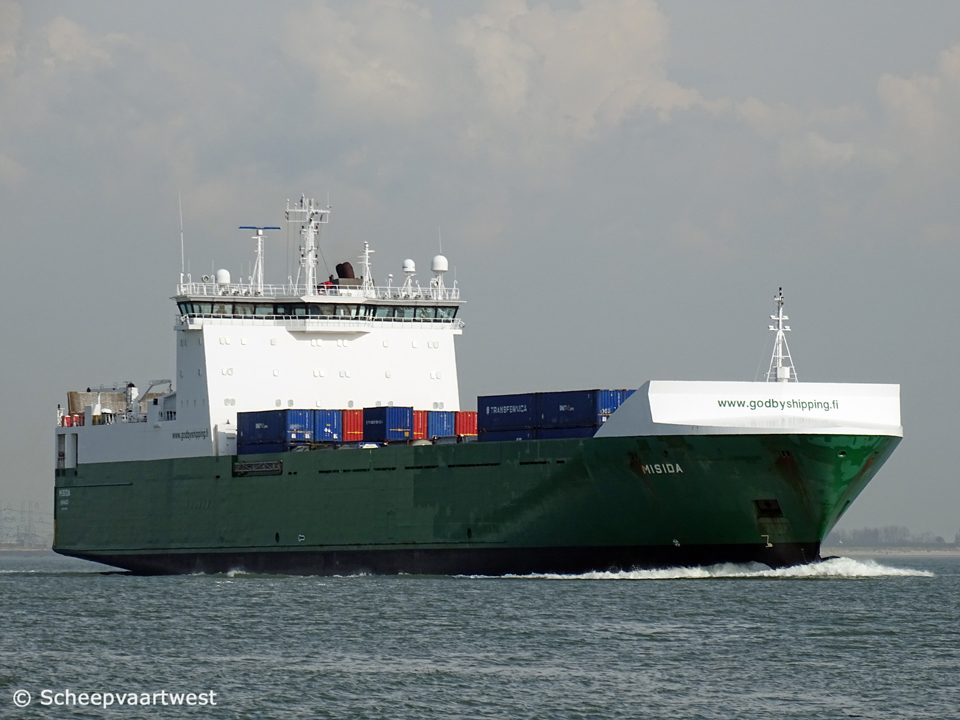

| Westerschelde 15/03/15 | |
|
Name |
MISIDA |
|
Type |
Roll-On/Roll-Off carrier - Equipped for carriage of containers |
|
IMO-number |
9348948 |
|
Call sign |
OJNC |
|
Flag |
Finland |
|
Port of registry |
Brändö (Braendoe) |
|
GT |
15.586 t |
|
DWT |
Summer: 11.407 t |
|
NT |
4.676 t |
|
Number of 20ft containers |
On deck: 484 |
|
Number of 40ft containers |
On deck: 242 |
|
Reefer capacity |
48 reefer plugs on main deck and weather deck Reefer plugs: 4 pole, 380/440 V, 50/60 Hz, 32 A |
|
Length |
165,75 m overall 155,40 m between perpendiculars |
|
Breadth |
25,60 m extreme 23,40 m moulded |
|
Draught |
Summer: 7,26 m |
|
Depth |
14,80 m |
|
Speed |
Service: 19,0 knots Max.: 20,0 knots |
|
Built |
2007 |
|
Keel laid |
20/12/2005 |
|
Launch date |
27/10/2007 |
|
Date of completion |
20/12/2007 |
|
Builder |
Sietas Schiffswerft GmbH & Co. Hamburg-Neuenfelde Germany |
|
Yard number |
1282 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
3 |
|
Continuous decks |
2 |
|
Main engine |
2x Wärtsilä 6L46F - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine total each Mcr 7.500 kW / 10.197 hp at 600 rpm Total: 15.000 kW / 20.394 hp Builder: Wärtsilä Italia SpA - Italy |
|
Propellers |
1x Controllable pitch propeller - aft at 151,0 rpm |
|
Rudder |
1 Blades Becker |
|
Boilers |
2x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 99,0 m² 1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 59,0 m² Builder: GESAB Hoch-Temperatur Industrieanlagen GmbH |
|
Electric installations |
1x Plant - 400 V - 400 kVA 1x Plant - 400 V - 400 kVA 1x Plant - 400 V - 400 kVA 1x Plant - 400 V - 2.750 kVA 1x Plant - 400 V - 155 kVA 1x Plant - 24 V - 170 Ah 1x Plant - 24 V - 180 Ah |
|
Shaft generator |
1x 2.200 kW / 2.750 kVA - 400 Volt 60 Hz |
|
Generators |
3x MAN D2876 LE301 - 4 stroke 6 cylinder 128 x 166 diesel engines each Mcr 350 kW connected with generators each 320 kW / 400 kVA |
|
Emergency generator |
1x Scania D9 95 diesel generatorset 155 kVA |
|
Batteries |
2x Batteries for start emergency engine each 180 Ah 2x Batteries for UPS radio each 170 Ah |
|
Compressed air receivers |
2x Receivers: each 1.800 litres - 30,0 bar 1x Receiver: 10 litres - 30,0 bar 1x Receiver: 750 litres - 10,0 bar |
|
Thruster |
1x Tunnel thruster 1.100kW / 1.496 bhp, forward 1x Tunnel thruster 600 kW / 816 bhp; aft |
|
RoRo capacity |
Weather deck: Area: 2.610 m² Lane metres: 859 m Max. load: 2,5 t/m² Main deck: Area: 2.554 m² Lane metres: 820 m Max. load: 5,0 t/m² Lower deck: Area: 1.516 m² Lane metres: 476 m Max. load: 8,0 t/m² |
|
Cargo handling equipment |
Stern ramp: 13,00 x 21,00 m (L x B), total load 200 t Fixed ramp main deck - tank top, slope <8° Fixed ramp main deck - weather deck, slope <7° Hydraulic door in front of “garage” 13,75 x 5,00 m Air drying plant for cargo holds |
|
Tank capacities |
Fuel oil: 1.030 m³ MGO: 76 m³ Water ballast: 6.700 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Length: 577,50 m Diameter: 60 mm |
|
Accommodation |
For 12 drivers in 6 cabins |
|
ISM & commercial manager |
Godby Shipping Ab Södragatan 13 AX-22100 Mariehamn Aland Finland |
|
Registered owner |
Oy Trailer-Link Ab Södragatan 13 AX-22100 Mariehamn Aland Finland |
|
Latest data adjustment |
10 July 2023 |
