Westerschelde 11 April 2017 |
 |
|
| Westerschelde 09/08/16 | |
|
Name |

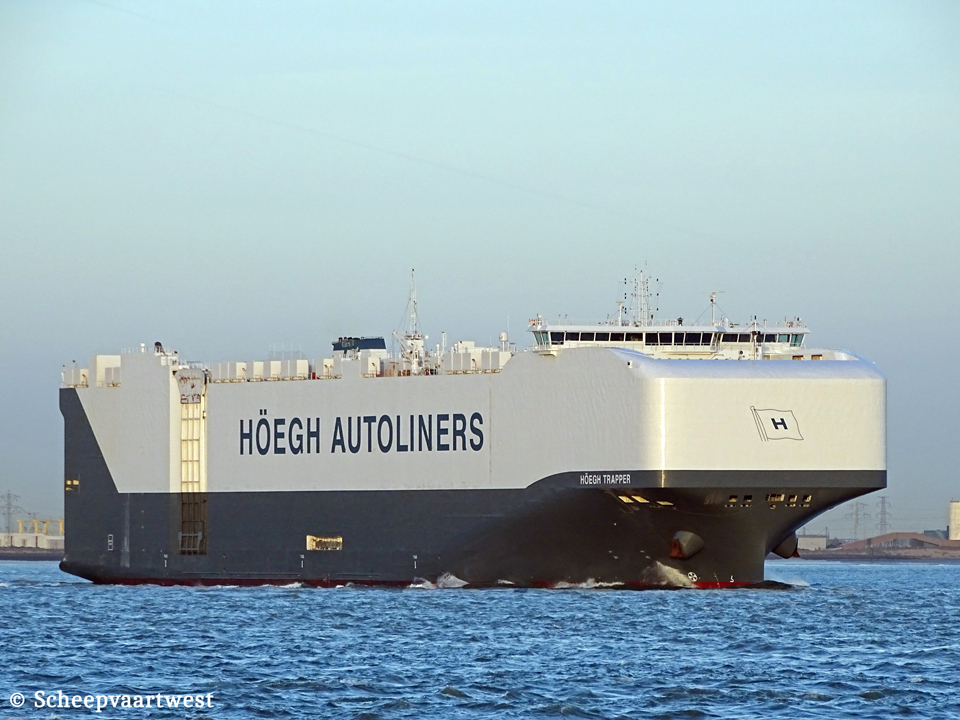

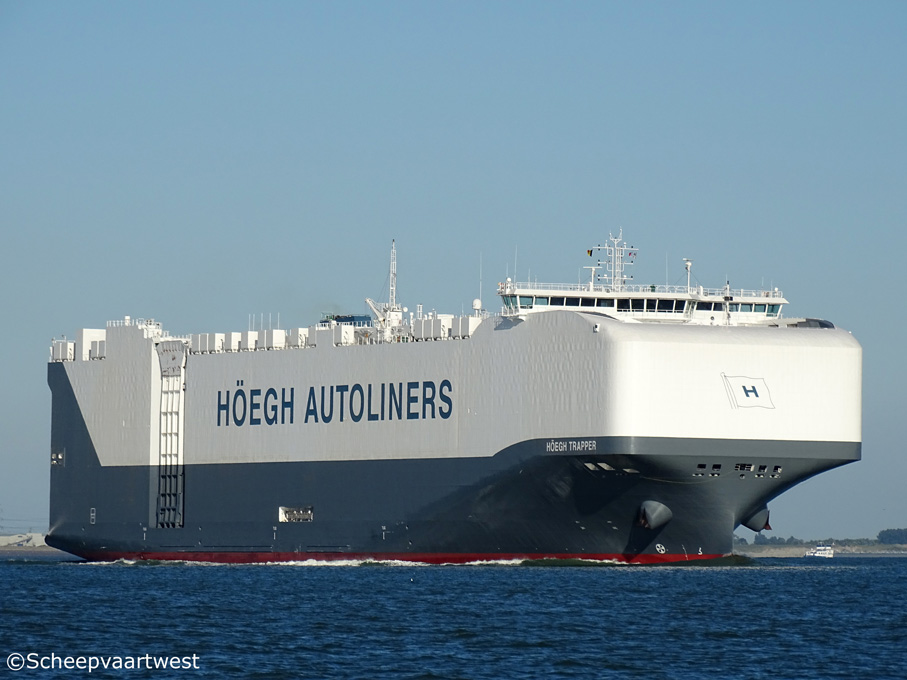

HÖEGH TRAPPER |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier PCTC - Pure car and truck carriers |
|
IMO-number |
9706918 |
|
Call sign |
LAUM7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
76.420 t |
|
DWT |
Summer: 20.766 t |
|
NT |
23.242 t |
|
Length |
199,89 m overall 193,08 m between perpendiculars |
|
Breadth |
40,74 m extreme 36,50 m moulded |
|
Draught |
10,31 m |
|
Air draft |
46,50 m |
|
Depth |
14,40 m |
|
Speed |
19,0 knots |
|
Built |
2016 |
|
Keel laid |
25/06/2014 |
|
Launch date |
29/12/2015 |
|
Date of completion |
06/06/2016 |
|
Builder |
Xiamen Shipbuilding Industries Co. Ltd. Iamen China |
|
Yard number |
462D |
|
Hull material |
Steel |
|
Hull type |
Double bottom Single side |
|
Main engine |
1x MAN-B&W 6S60ME-C - 2 stroke 6 cylinder combustion engine 11.735 kW Builder: MAN Diesel & Turbo, branch of MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil fired 1x Auxiliary boiler, oil/gas fired (Exhaust) Manufacturer: Alfa Laval Aalborg |
|
Generators |
2x MAN 9L21/31 main diesel generatorsets 1.850 kW 1x MAN 5L21/31 main diesel generatorset 950 kW Manufacturer: CSSC marine power Co., Ltd. |
|
Emergency generator |
1x Cummins QSM11 diesel generatorset |
|
Bow thruster |
1x 1.800 kW |
|
Number of decks |
14 |
|
Hoistable decks |
5 |
|
Car capacity |
8.500 |
|
Tank capacities |
Ballast: 6.907 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 87 mm |
|
Crew |
23 |
|
Commercial manager |
Hoegh Technical Management Inc. |
|
ISM manager |
Höegh Autoliners Management AS Drammensveien 134 0277 Oslo Norway |
|
Operator |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
Registered owner |
OCY Trapper Limited Vault 17, Upper Floor Pinto Wharf Valetta Waterfront Floriana Frn 1913 Malta |
|
Latest data adjustment |
07 June 2023 |
