Westerschelde 31 July 2019 |
 |
 |
 |
 |
 |
||||
| Westerschelde 31/07/19 | Westerschelde 09/10/15 | Westerschelde 24/10/18 | Westerschelde 10/10/19 | Westerschelde 28/02/18 | ||||
|
Name |

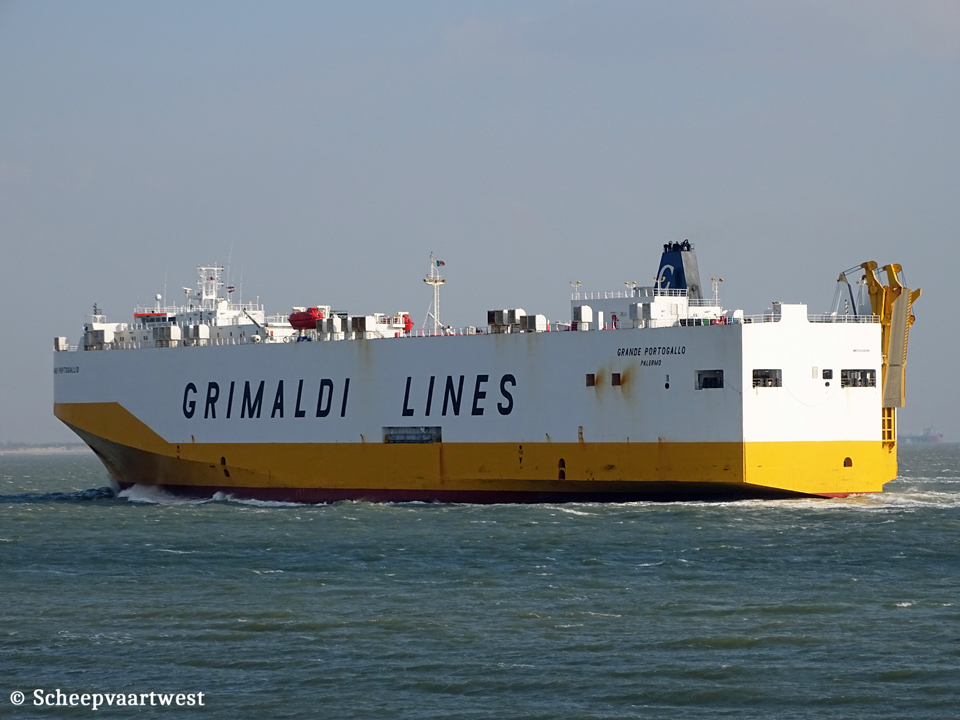

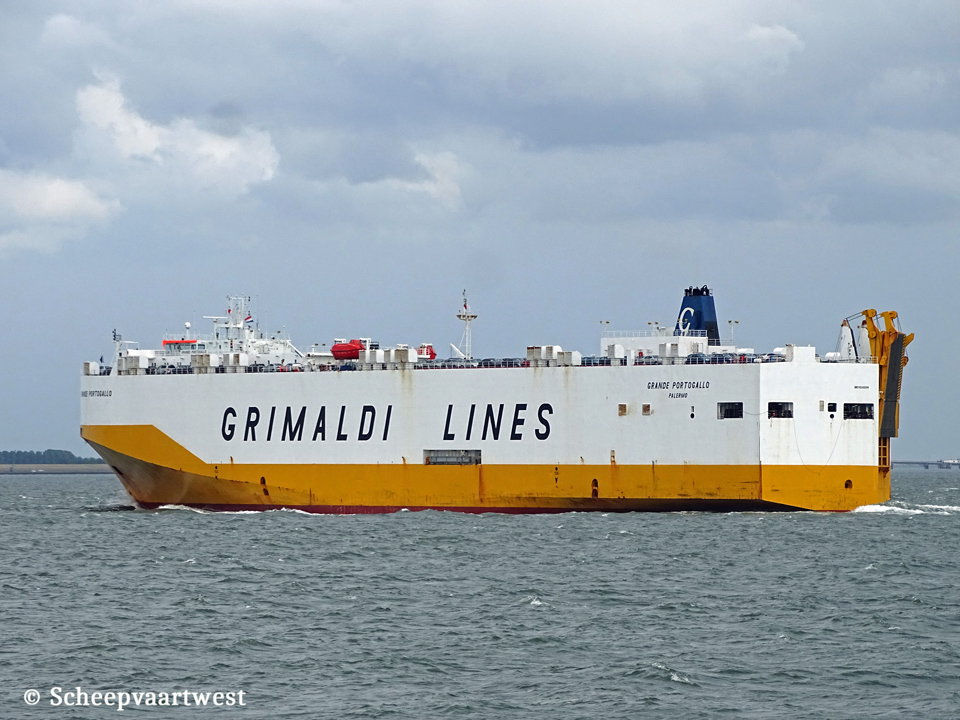

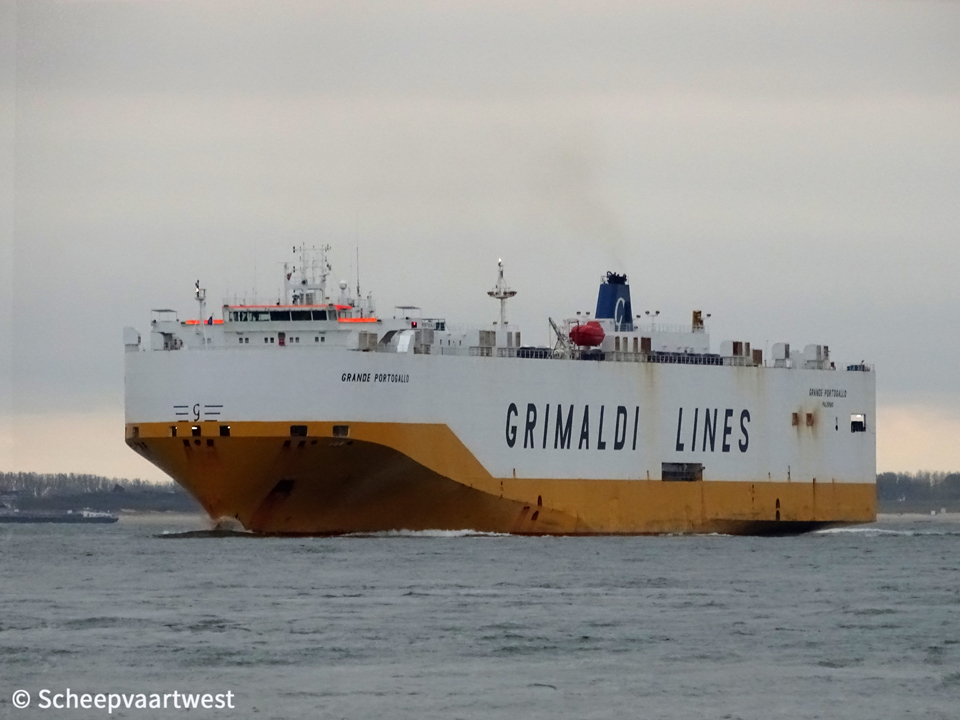

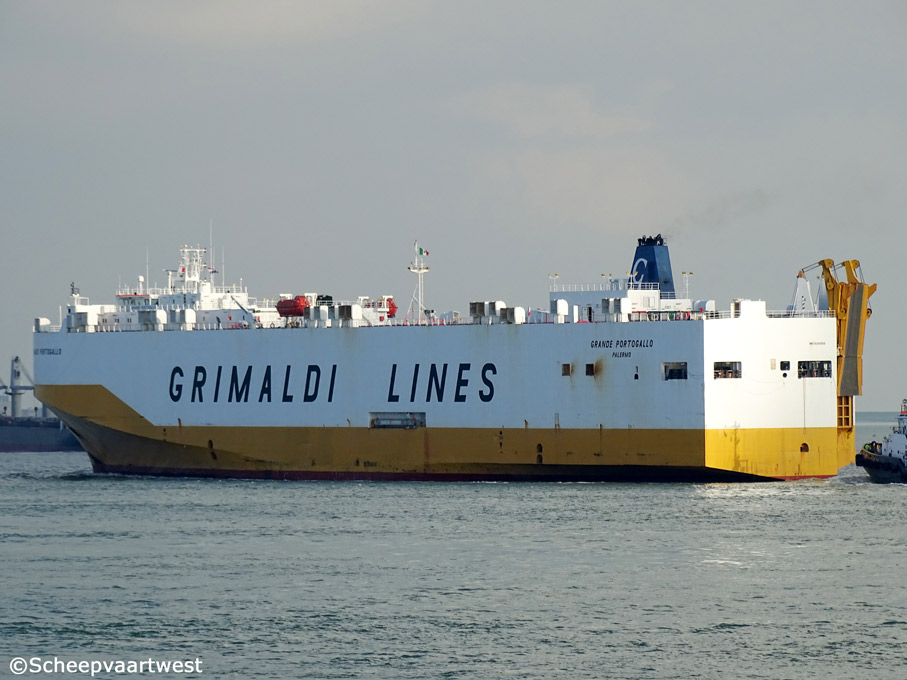

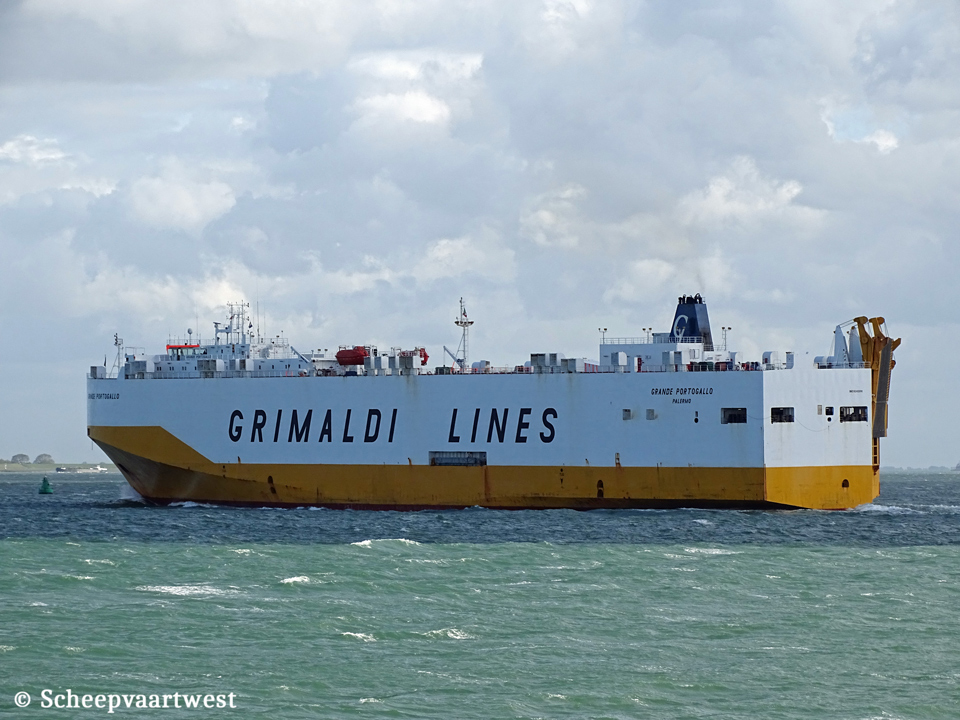

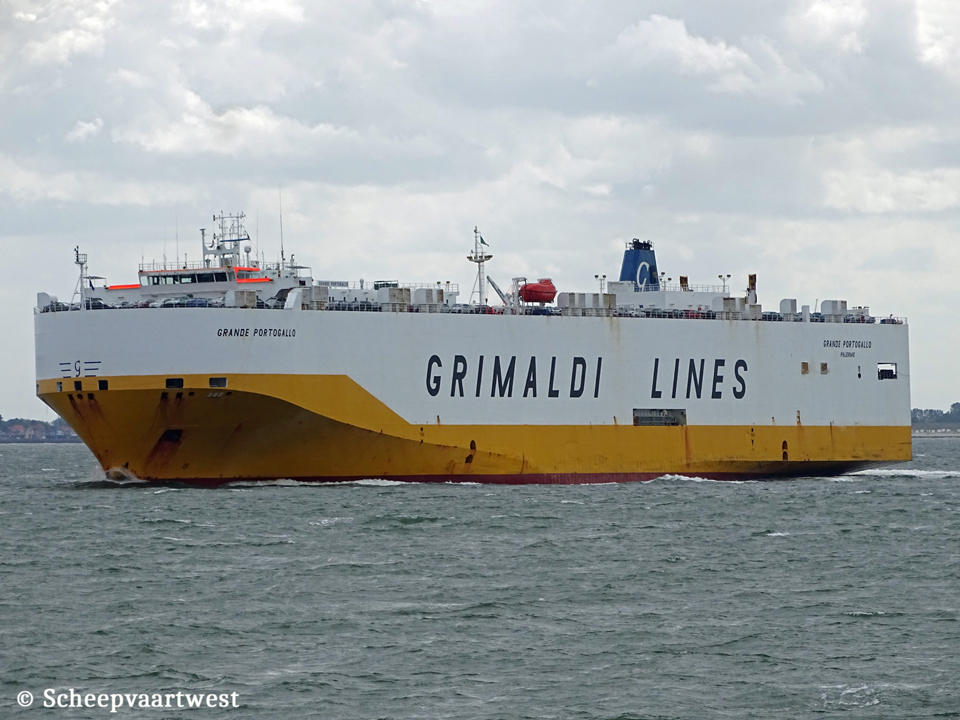

GRANDE PORTOGALLO |
|
Type |
Roll-On/Roll-Off car carrier |
|
IMO-number |
9245598 |
|
Call sign |
IBZW |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
37.752 t |
|
DWT |
Summer: 12.609 t |
|
NT |
13.441 t |
|
Displacement |
24.825 t |
|
Number of 20ft containers |
880 |
|
Length |
176,50 m overall 167,53 m between perpendiculars |
|
Breadth |
31,13 m moulded |
|
Draught |
8,75 m |
|
Depth |
14,46 m |
|
Lane metres |
3.100 m |
|
Speed |
Max: 20,3 knots |
|
Built |
2002 |
|
Keel laid |
07/09/2001 |
|
Launch date |
06/04/2002 |
|
Delivery date |
11/07/2002 |
|
Builder |
Uljanik Shipyard Pula Croatia |
|
Yard number |
440 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 7S50MC-C - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 11.044 kW / 15.042 hp at 127 rpm Builder: Uljanik Brodogradiliste d.d., Pula - Croatia |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
4x Generatorsets total 3.868 kW |
|
Bow thrusters |
1 x 1.000 kW, forward 1 x 800 kW, aft |
|
Number of complete decks |
8 |
|
Number of partial decks |
3 |
|
Number of cars |
4.632 |
|
Number of passengers |
12 |
|
Ramp |
SWL: 100 t Ton/axle 25 t Width: 6,50 m Height: 4,80 m |
|
Manager |
Grimaldi Euromed S.P.A. |
|
Operator |
Grimaldi Group Via Marchese Campodisola, 13 80133 Naples Italy |
|
Registered owner |
Grimaldi Euromed S.P.A. |
|
Latest data adjustment |
16 February 2024 |
