Name |

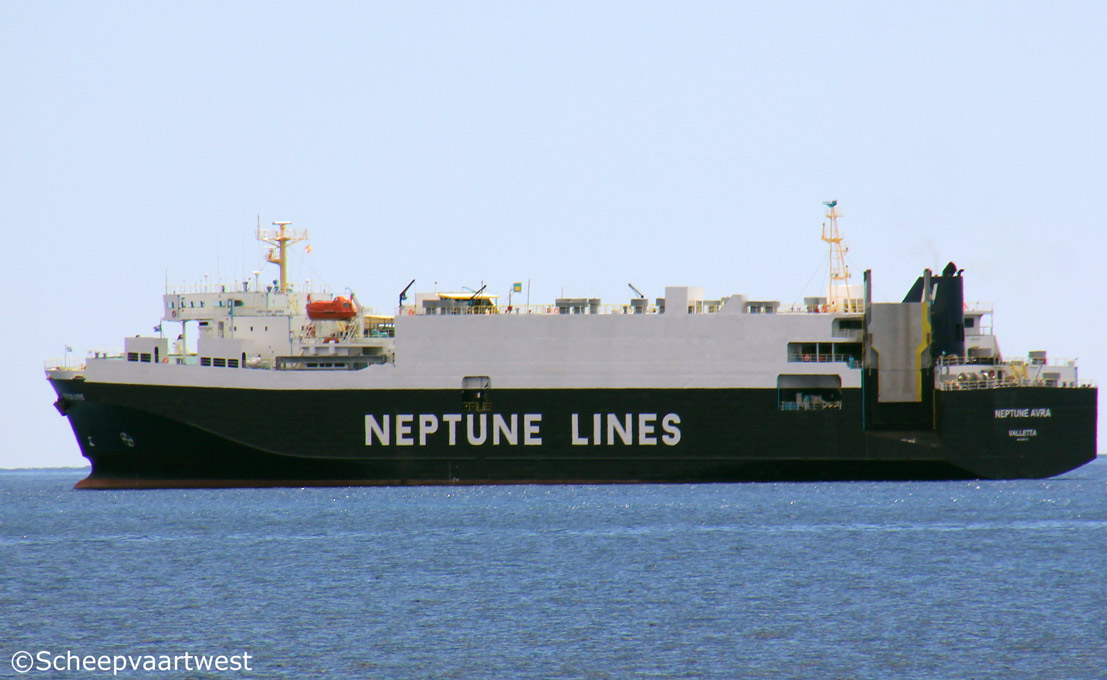

NEPTUNE AVRA |
|
Previous names |
1989 - 09.1999 Hokkaido Maru |
|
Type |
Roll-On/Roll-Off vehicle carrier |
|
IMO-number |
8807155 |
|
Call sign |
9HKH6 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
19.220 t registered |
|
DWT |
Summer: 5.797 t |
|
NT |
5.766 t registered |
|
Length |
155,02 m overall |
|
Breadth |
23,60 m moulded |
|
Draught |
Summer: 6,62 m |
|
Moulded L x B x D |
146,00 x 23,60 x 9,10 m |
|
Registered L x B x D |
150,15 x 23,60 x 16,50 m |
|
Lanemetres for trailers |
680 |
|
Freeboard |
Summer: 2.512 mm |
|
Depth |
9,10 m moulded |
|
Speed |
Max: 23,9 knots Service: 20,5 knots |
|
Built |
1989 |
|
Keel laid |
05.10.1988 |
|
Launch date |
13.01.1989 |
|
Date of completion |
16.03.1989 |
|
Builder |
Kawasaki Heavy Industries, Ltd. Sakaide Works |
|
Yard number |
1413 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
6 |
|
Main engine |
1x MAN B&W 9L50MC - 2 stroke single acting 9 cylinder 500 x 1.620 mm diesel engine - 10.738 kW / 14.601 bhp at 141,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 500 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 5,9 bar Evaporation: 2,92 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators - 2.860 kVA |
|
Number of decks |
4 |
|
Number of cars |
1.500 |
|
Number of trailers |
109 |
|
Ramps |
Height: 4,60 m Width: 4,50 m Ramp safe working load (SWL): 45 t |
|
Number of passengers |
12 |
|
Tank capacity |
Fuel oil: 1.047 m² Fresh water: 198 m³ Water ballast: 3.578 m³ |
|
Manager |
Neptune Lines Shipping & Managing Enterprises S.A. |
|
Operator |
Neptune Lines |
|
Registered owner |
Sea Urchin Shipping Co., Ltd. |
|
Latest data adjustment |
29 March 2015 |
