| Westerschelde 27 May 2018 |
 |
|
| Zeebrugge 28/06/10 | |
|
Name |

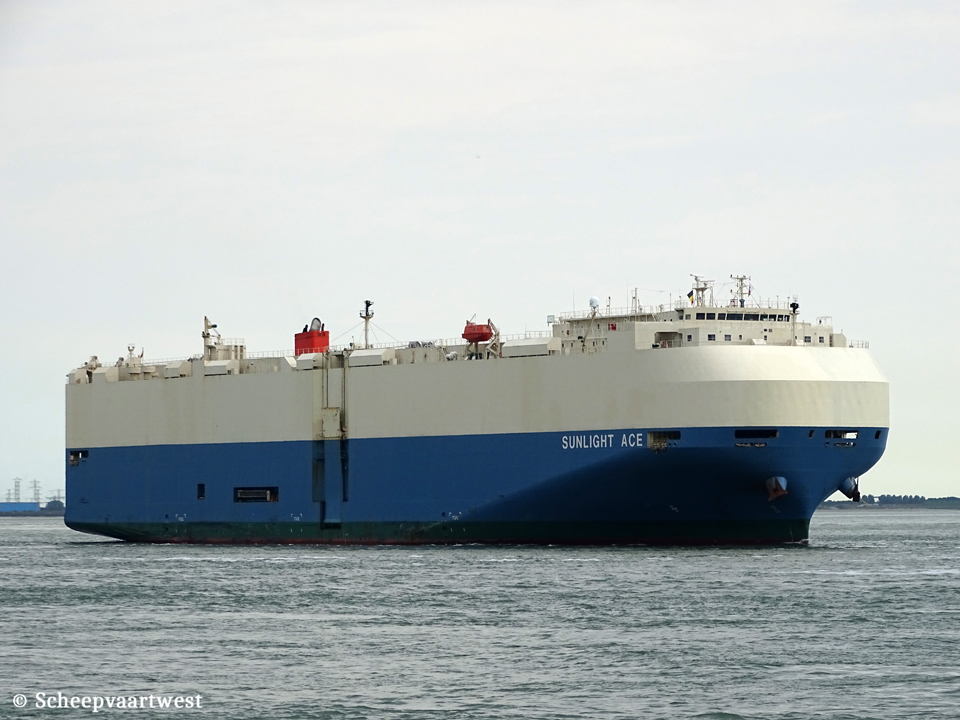

SUNLIGHT ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9338864 |
|
Call sign |
3EID4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flag |
2009 - 2020 Bahamas, Nassau - Call sign: C6XP8 |
|
GT |
58.911 t registered |
|
DWT |
18.855 t |
|
NT |
18.195 m registered |
|
Length |
199,95 m overall |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
192,86 x 32,20 x 21,19 m |
|
Draught |
Summer: 9,816 m |
|
Freeboard |
Summer: 4.914 mm |
|
Depth |
21,19 m registered |
|
Speed |
20,0 knots |
|
Built |
2009 |
|
Keel laid |
04/09/2008 |
|
Launch date |
22/01/2009 |
|
Date of completion |
23/06/2009 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
704 |
|
Hull type |
Single hull |
|
Main engine |
1x MAN B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 combustion engine 15.130 kW / 20.289 bhp at 100,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Number of screws |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boiler |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,98 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 3.900 kVA |
|
Bow thruster |
1x 1.510 kW |
|
Car capacity |
6.233 |
|
Nuber of ramps |
2 |
|
Tank capacities |
Fuel oil: 2.951 m³ Fresh water: 398 m³ Water ballast: 7.233 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
21 |
|
Commercial manager
|
Kansai Steamship Co., Ltd. 16-14, Shinkawa 1-chome, Chuo-ku Tokyo, 104-0033 Japan |
|
Previous manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Registered owner |
Polar Bear S.A. Care of Kansai Steamship Co Ltd. 16-14, Shinkawa 1-chome, Chuo-ku Tokyo, 104-0033 Japan |
|
Previous owner |
2009 - 2011 Aurora Car Maritime Transport S.A. 2011 Snowcape Car Carriers SA |
|
Latest data adjustment |
11 December 2022 |
