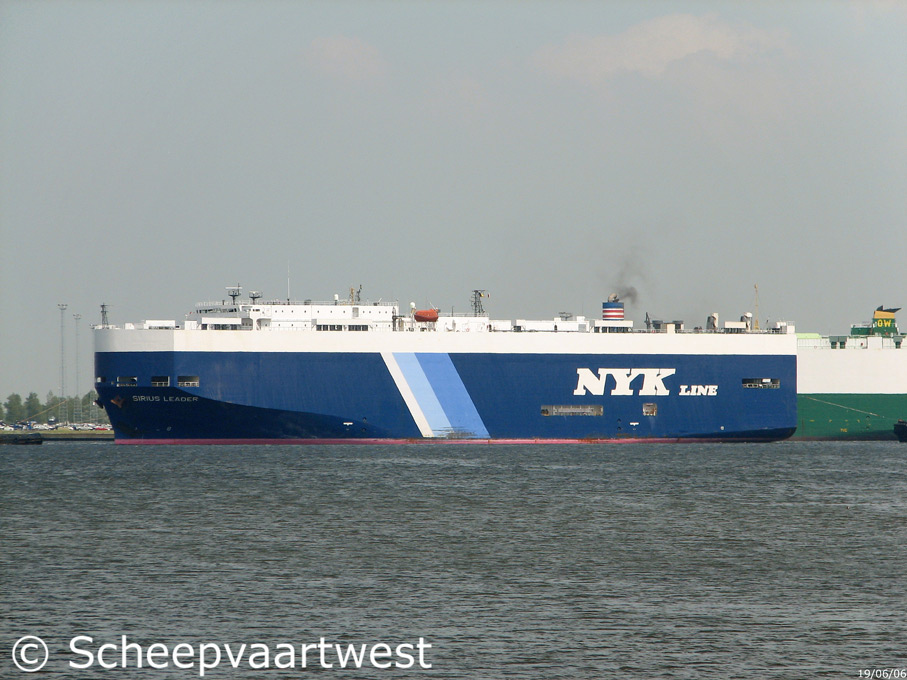

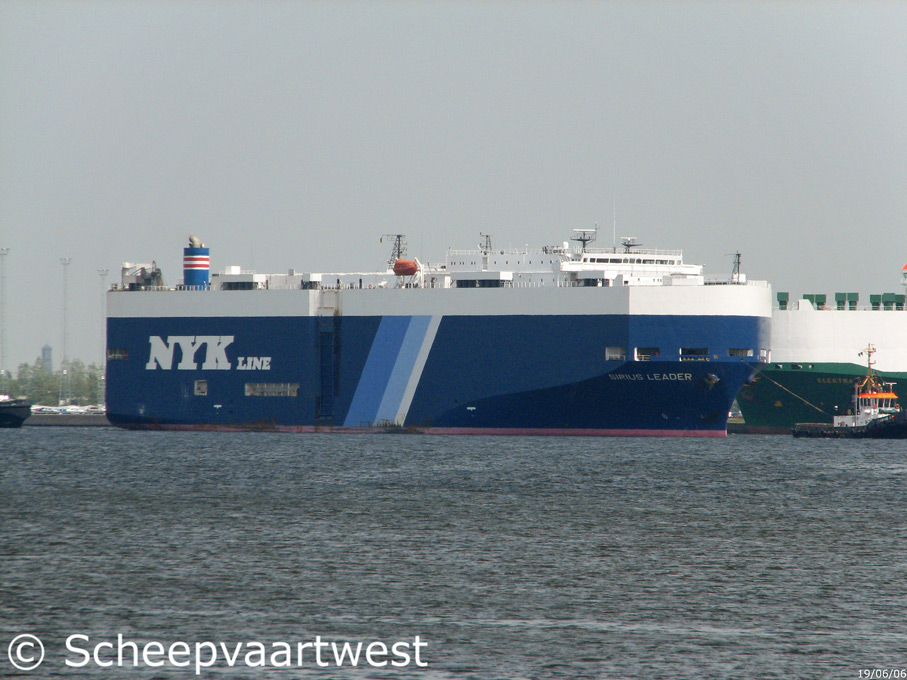

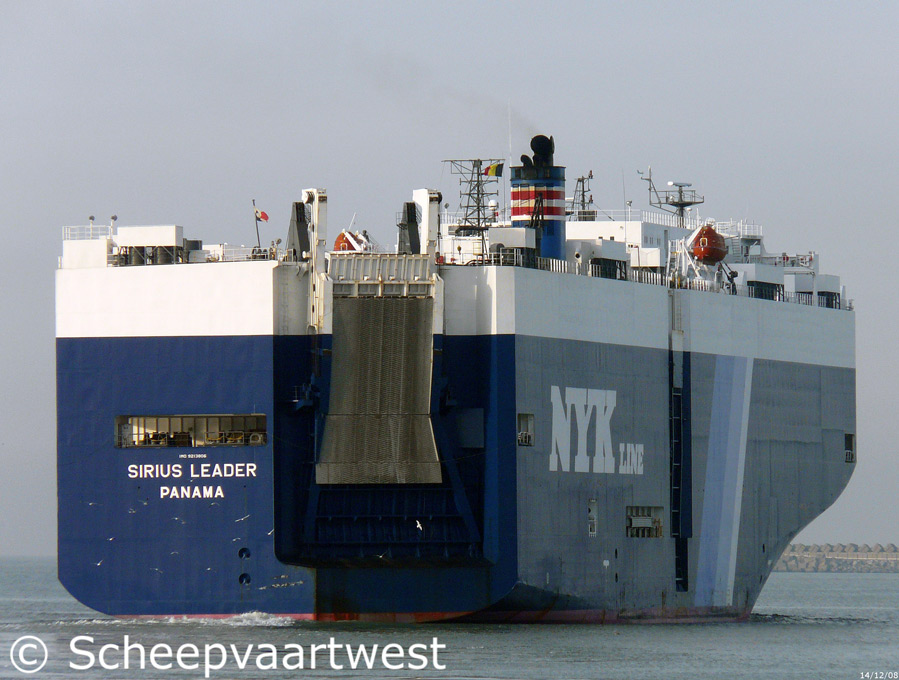

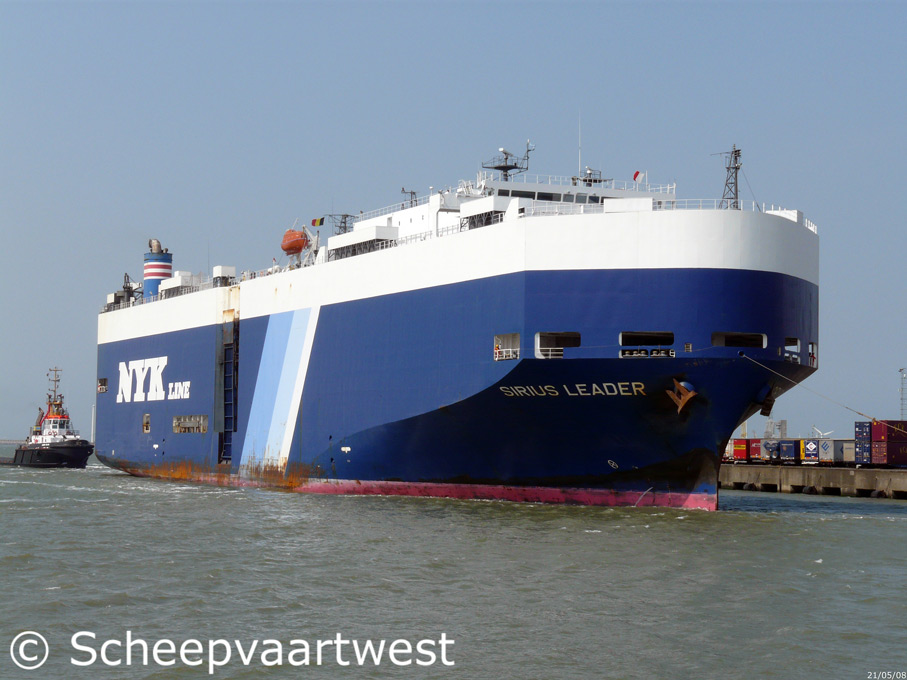

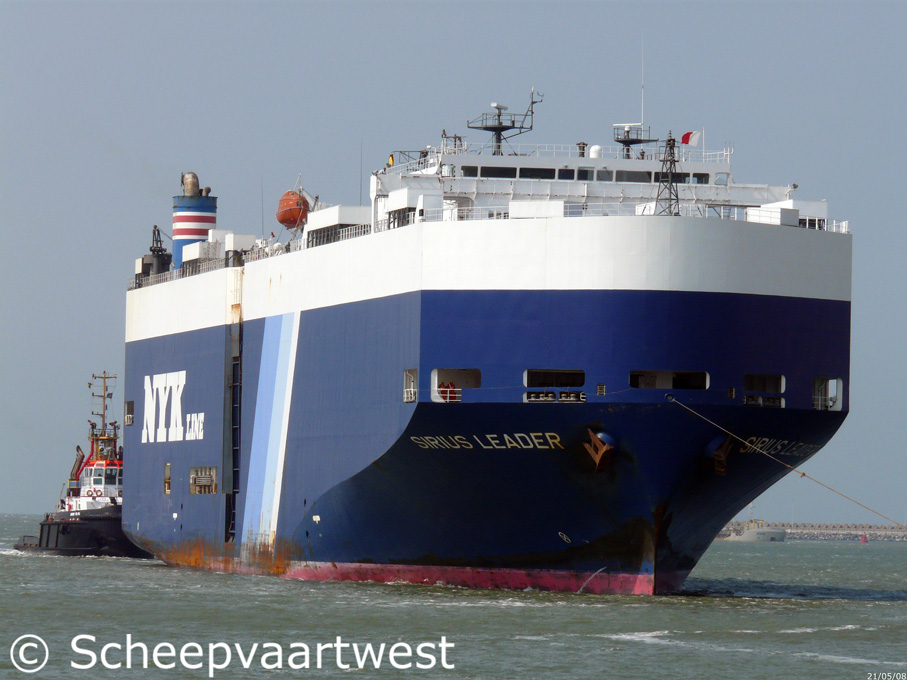

| Zeebrugge 21 May 2008 |
 |
 |
 |
|
|||
| Zeebrugge 21/05/08 | Zeebrugge 19/06/06 | Zeebrugge 19/06/06 | Zeebrugge 14/12/08 |
|
Name |
SIRIUS LEADER |
|
Type |
Vehicles Carrier |
|
IMO-number |
9213806 |
|
Call sign |
H3KF |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
51.496 t |
|
DWT |
Summer: 16.451 t |
|
NT |
15.449 t |
|
Length |
180,00 m overall 172,73 m registered |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
170,00 x 32,26 x 14,95 m |
|
Registered L x B x D |
172,73 x 32,26 x 21,56 m |
|
Draught |
Summer: 9,625 m |
|
Freeboard |
Summer: 5.365 mm |
|
Depth |
14,95 m moulded |
|
Speed |
Service: 19,3 knots Trial: 22,0 knots |
|
Built |
2000 |
|
Keel laid |
22.12.1999 |
|
Launch date |
23.05.2000 |
|
Date of completion |
25.07.2000 |
|
Builder |
Sumitomo Heavy Industries Ltd. |
|
Yard number |
1261 |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer - 2 stroke single acting 7 cylinder 620 x 2.150 mm diesel engine - 13.540 at 107,0 rpm Manufacturer: Diesel United |
|
Number of screws |
1 |
|
Boiler |
1 Auxiliary vertical boiler - 7,9 bar Evaporation: 4,23 t/h Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
4x Main diesel generatorsets each 4.620 kVA |
|
Car capacity |
4.323 |
|
High car cap. height 2,0 m |
3.938 |
|
Ramp loadable |
100 t |
|
Tank capacities |
Fuel oil: 3.180 m³ Fresh water: 354 m³ Water ballast: 6.593 m³ |
|
Lifting equipment |
3x Cranes - SWL 4,0 t each |
|
Manager |
Hachiuma Steamship Co. Ltd. |
|
Shipping company |
Nippon Yusen Kaisha (NYK) |
|
Registered owner |
Sirius Maritime Shipholding S. A. |
