| Zeebrugge 14 August 2008 |
 |
| Zeebrugge 15/08/08 |
|
Name |

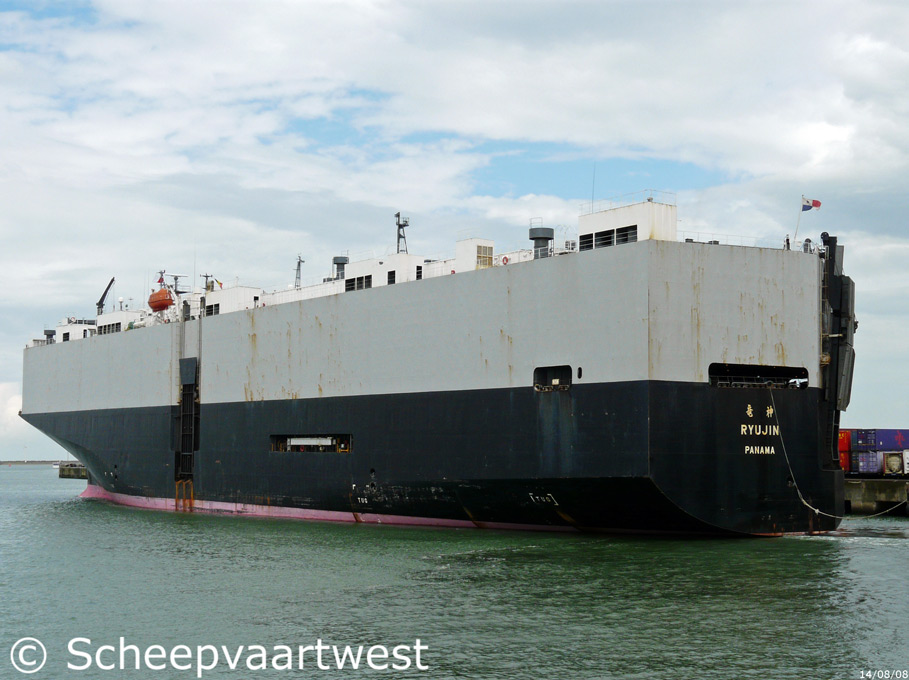

RYUJIN |
|
Type |
Vehicles Carrier |
|
IMO-number |
9055486 |
|
Call sign |
3FSU3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
47.737 t |
|
Summer DWT |
14.080 t |
|
NT |
14.322 t |
|
Length |
180,00 m overall 170,00 m between perpendiculars 172,92 m registered |
|
Breadth |
32,20 m over all |
|
Moulded L x B x D |
170,00 x 32,20 x 12,35 m |
|
Registered L x B x D |
172,92 x 32,20 x 20,80 m |
|
Draught |
Summer: 8,818 m |
|
Freeboard |
Summer: 3.556 mm |
|
Depth |
12,35 m moulded |
|
Speed |
19,0 knots |
|
Built |
1993 |
|
Keel laid |
30.01.1992 |
|
Launch date |
12.08.1993 |
|
Date of build |
17.11.1993 |
|
Builder |
Oshima Shipbuilding Co. Ltd. Japan |
|
Yard number |
10163 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi - 2 stroke single acting 7 cylinder 600 x 1.900 mm diesel engine - 10.811 kW at 110,0 rpm Manufacturer: Mitsubishi Heavy Industries Ltd. |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,93 t/h Manufacturer: Gadelius Sanwa |
|
Generators |
4x Main diesel generatorsets each 3.214 kVA |
|
Cargo capacity |
Cars: 4.759 Cars / trucks: 2.337 / 285 |
|
Tank capacities |
Fuel oil: 2.055 m³ Fresh water: 446 m³ Water ballast: 6.352 m³ |
|
Lifting capacity |
2x Cranes SWL - 4,0 t each |
|
Manager |
Imabari Senpaku Co. Ltd. Ehime Japan |
|
Operator |
NYK - Nippon Yusen Kaisha Line |
|
Owner |
IMA Lines Co. S.A. |
