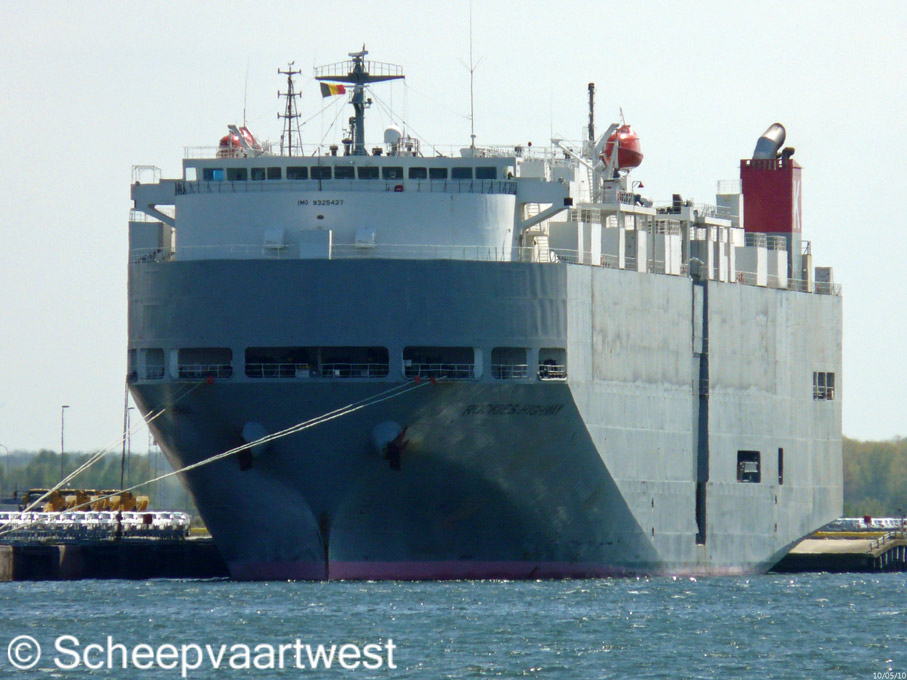

| Zeebrugge 10 May 2010 |
 |
|
| Westerschelde 17/02/18 | |
|
Name |
ROCKIES HIGHWAY |
|
Type |
Vehicles carrier |
|
IMO-number |
9325427 |
|
Call sign |
3EGN5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
44.364 t registered |
|
DWT |
12.828 t |
|
NT |
13.310 t registered |
|
Length |
183,00 m overall |
|
Breadth |
30,20 m |
|
Draught |
Summer: 8,60 m |
|
Moulded L x B x D |
170,40 x 30,20 x 10,75 m |
|
Registered L x B x D |
174,31 x 30,20 x 20,94 m |
|
Freeboard |
Summer: 2.055 mm |
|
Depth |
20,94 m registered |
|
Speed |
21,0 knots |
|
Built |
2006 |
|
Keel laid |
23/02/2006 |
|
Launch date |
28/06/2006 |
|
Date of completion |
29/11/2006 |
|
Builder |
Naikai Zosen Corporation Setoda Shipyard Hiroshima Japan |
|
Yard number |
696 |
|
Hull type |
Double hull |
|
Main engine |
1x Kawasaki/MAN-B&W 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 11.620 kW / 15.798 hp at 105,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 2,60 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.185 kVA |
|
Car capacity |
4.318 |
|
Tank capacities |
Fuel oil: 2.207 m³ Fresh water: 361 m³ Water ballast: 9.715 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
23 |
|
Manager |
Fukunaga Kaiun Co., Ltd. 5-8, Tokiwahigashi-Machi Saiki City, Oita 876-0851 Japan |
|
Operator |
K-Line - Kawasaki Kisen Kaisha Line |
|
Registered owner |
NSF Line (Panama) S.A. |
|
Scrapped |
15/11/2020 Beached at Alang - India by Triveni Shipbreakers |
|
Latest data adjustment |
19 April 2024 |
