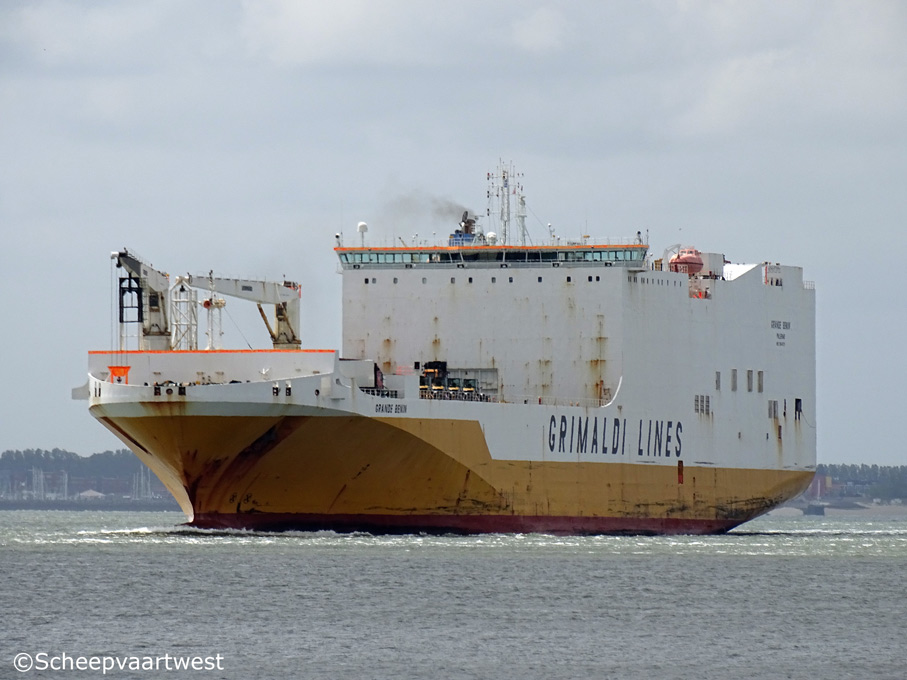

Grande Benin 02

Westerschelde 25 May 2016

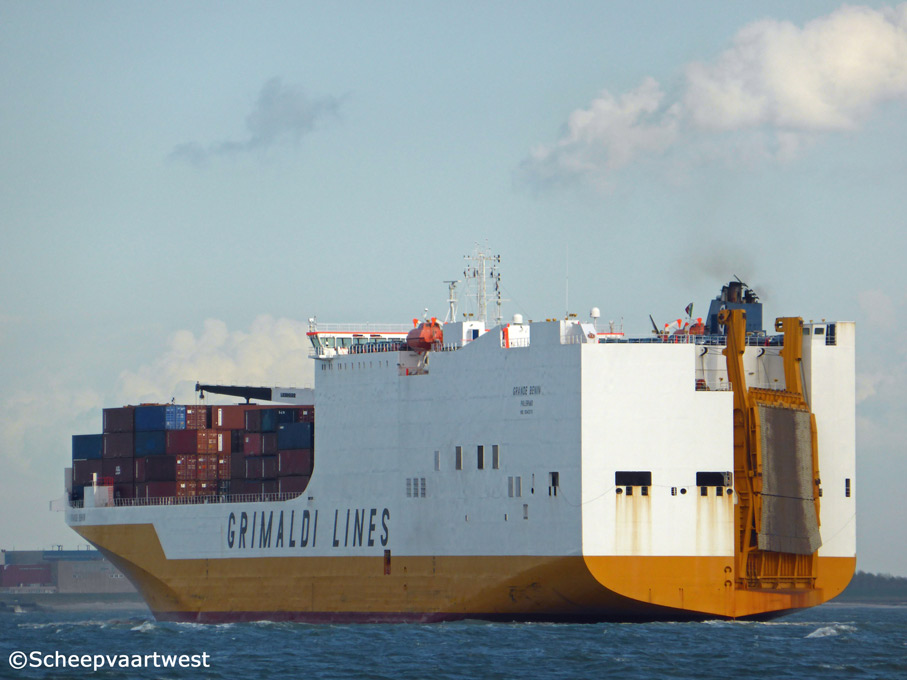

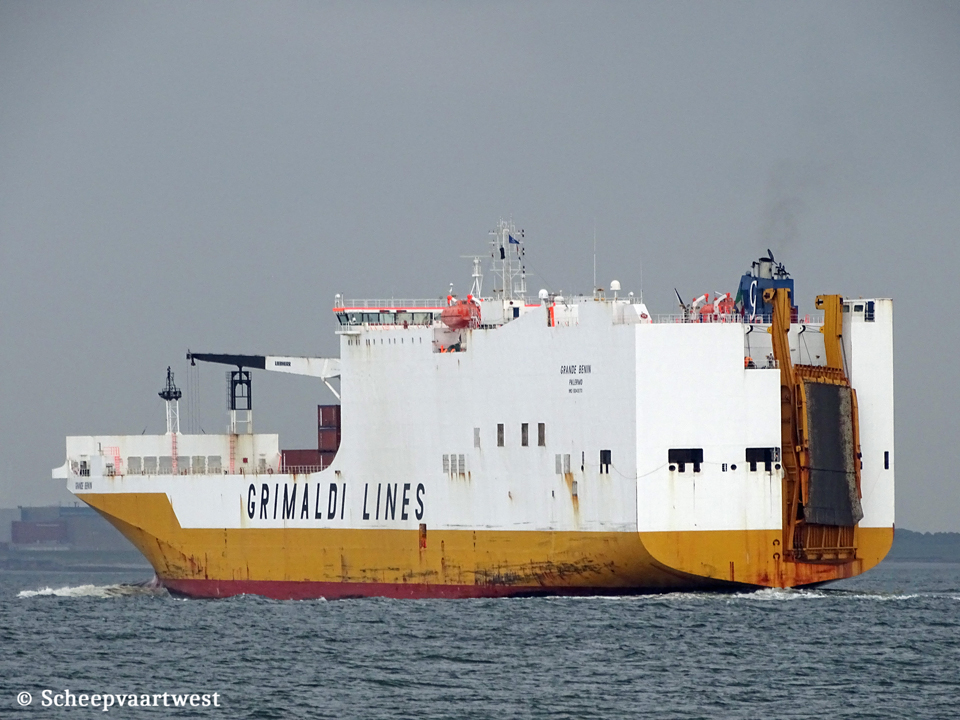

Grande Benin 01   Grande Benin IMO 9343170 04
Westerschelde 08/04/14   Westerschelde 19/05/17


Name

GRANDE BENIN

Type

Vehicle Carriers - Roll-On/Roll-Off cargo vessel

IMO-number

9343170

Call sign

ICEX

Flag

Italy

Port of registry

Palermo

GT

47.218 t

DWT

Summer: 26.097 t

NT

14.134 t

Number of 20ft containers

1.360

Reefer containers

25

Length

210,92 m overall

196,80 m between perpendiculars

Breadth

32,36 m

Draught

Max.: 9,75 m

Depth

21,53 m

Speed

Max.: 21,9 knots

Service: 21,0 knots

Built

2009

Keel laid

30/10/2008

Launch date

25/04/2009

Date of completion

27/08/2009

Builder

Uljanik Shipyard

Pula

Croatia

Yard number

474

Hull material

Steel

Hull type

Single hull, Double bottom

Main engine

1x MAN-B&W 8S60MC-C - 2 stroke single acting 8 cylinder 600 x 2.400 mm combustion engine 12.640 kW / 17.185 hp at 105,0 rpm

Builder: Uljanik Strojogradnja dd - Croatia

Propellers

1x Controllable pitch propeller - aft at 105,0 rpm

Shaft generator

1x 1.400 kW

Generators

4x Main diesel generatorset each 1.180 kW

Thusters

2x 1.000 kW, forwards

1x 1.000 kW, stern

Number of complete decks

4

Number of partial decks

8

Number of car capacity

3.890

Number of trucks

194

Cargo gear

2x Cranes - SWL 40,0 each

Number of passengers

12

Manager

Grimaldi Group

Napoli

Italy

Operator

Grimaldi Line

Owner

Inarme - Industria Armatori meridionale SpA

Grimaldi Group

Napoli

Italy

Latest data adjustment

18 September 2023
