Westerschelde 17 April 2016 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 17/04/16 | Westerschelde 06/04/14 | Antwerpen 24/10/14 | Westerschelde 18/09/16 | Westerschelde 17/10/17 | Westerschelde 01/08/16 | |||||
|
Name |

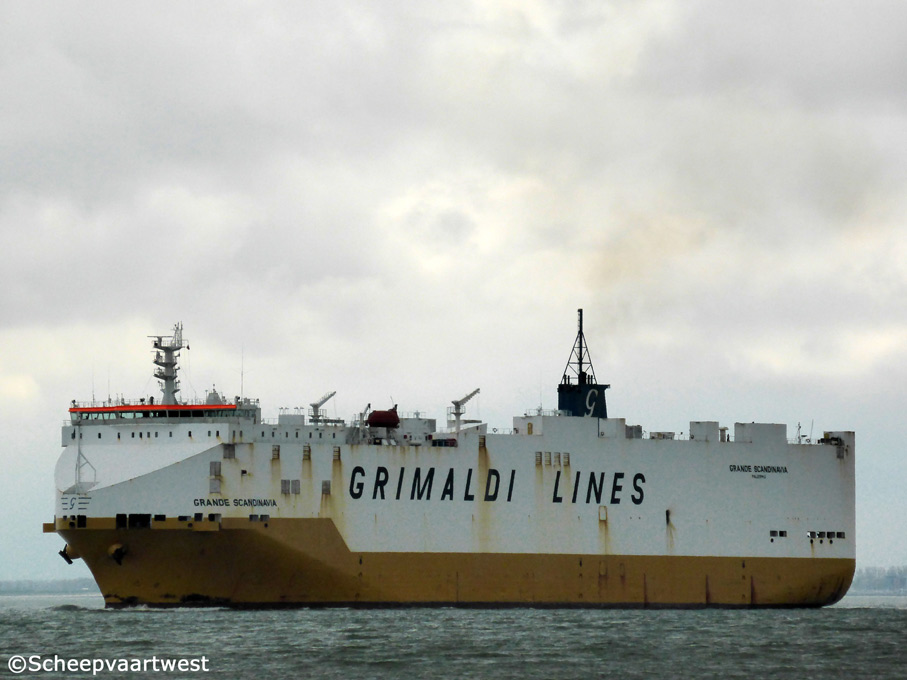

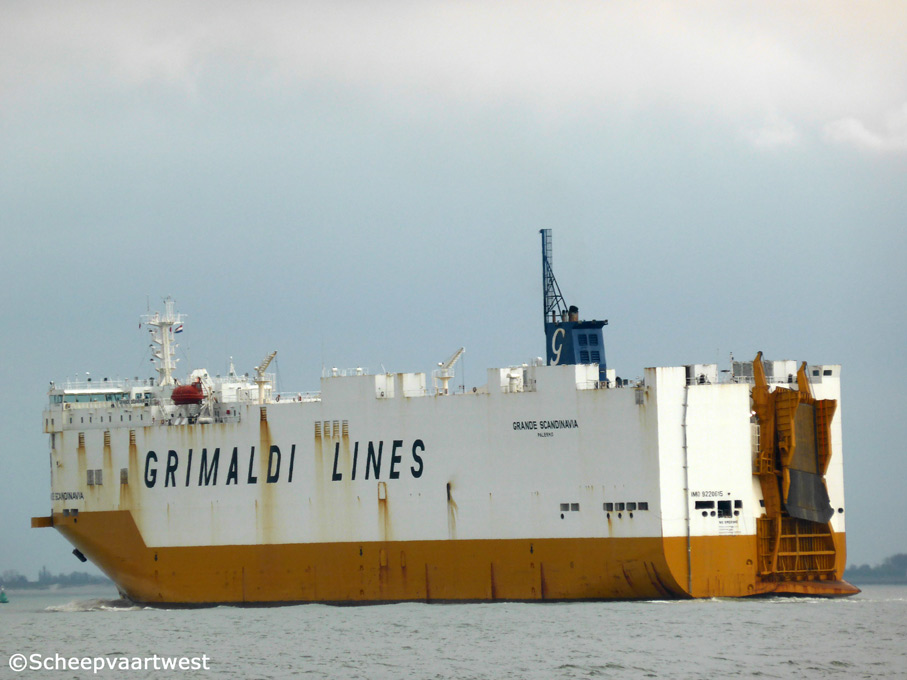

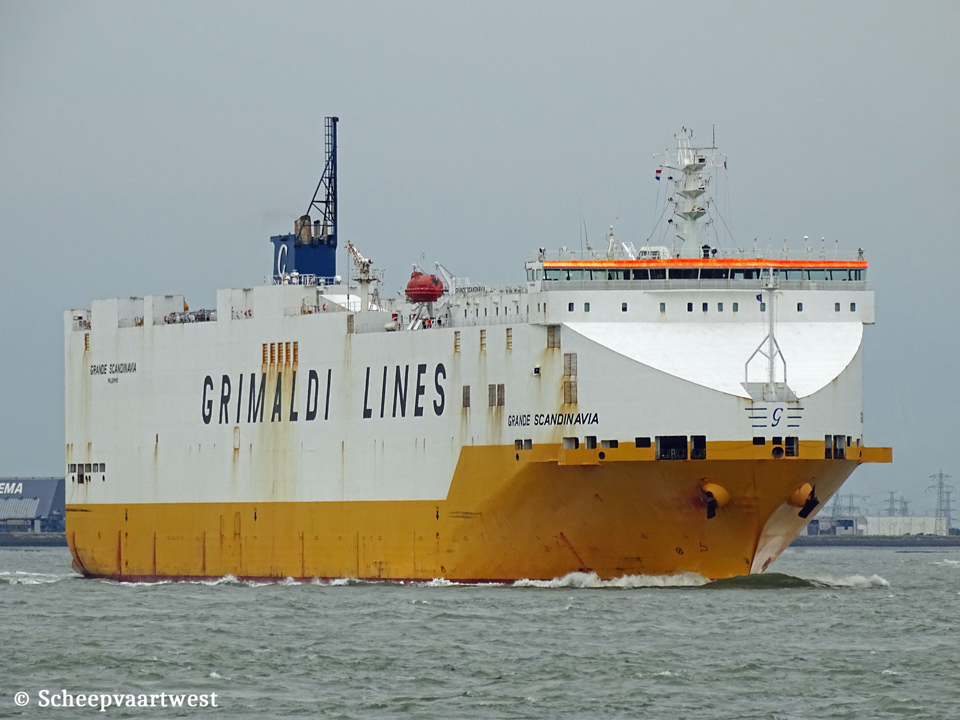

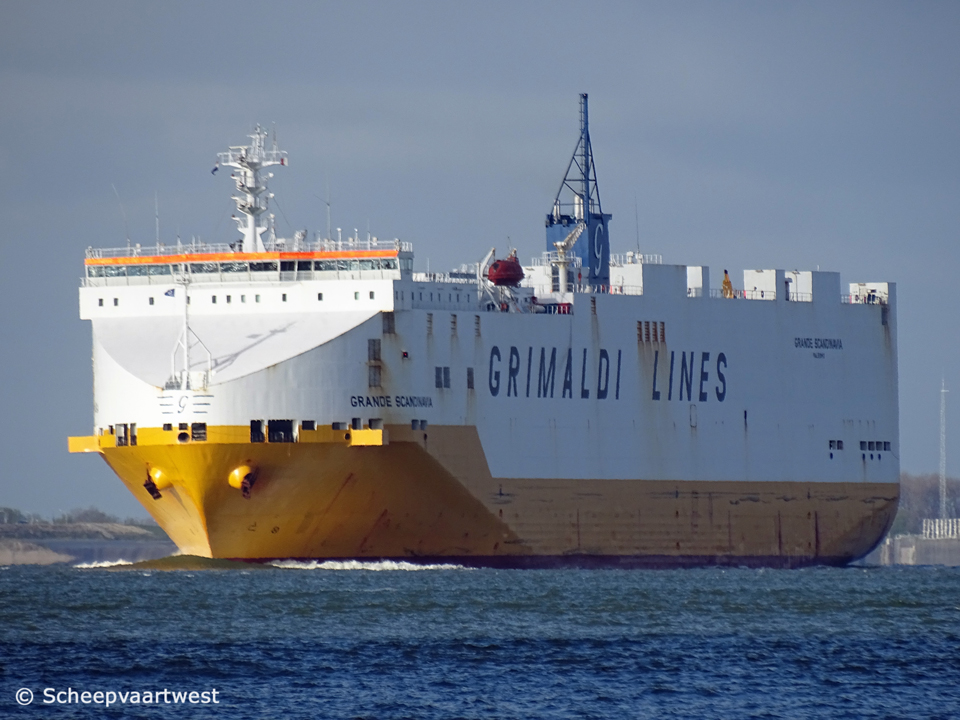

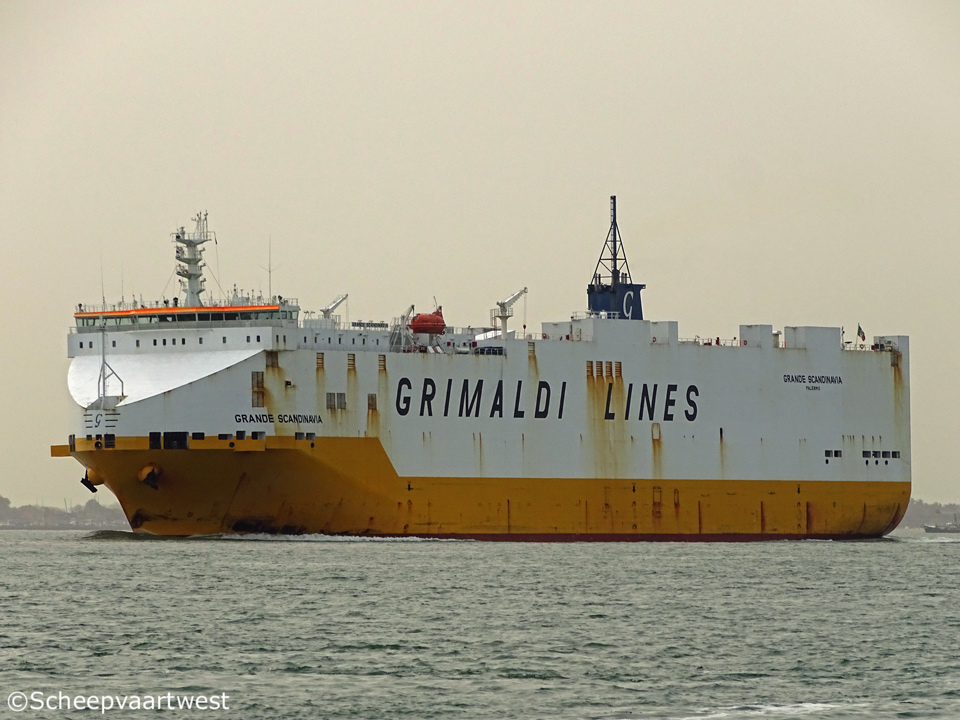

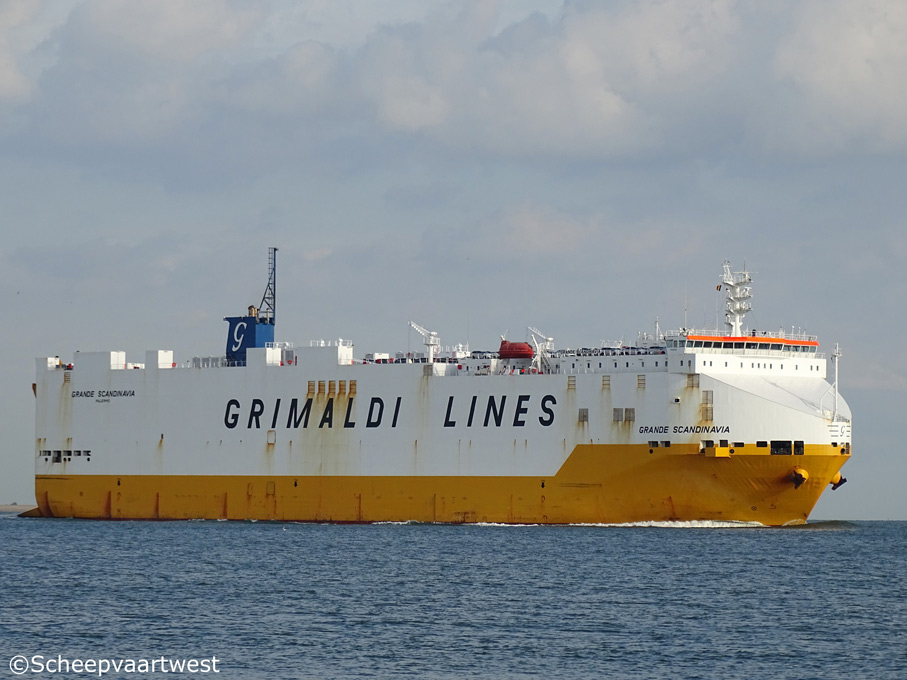

GRANDE SCANDINAVIA |
|
Type |
Roll-On/Roll-Off vessel - Vehicle carrier |
|
IMO-number |
9220615 |
|
Call sign |
IBNF |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
52.485 t |
|
DWT |
Summer: 18.440 t |
|
Number of 20ft containers |
753 |
|
Length |
181,20 m overall 165,00 m between perpendiculars |
|
Breadth |
32,25 m overall |
|
Draught |
Max.: 9,40 m |
|
Lane metres |
3.320 m |
|
Depth |
12,00 m |
|
Speed |
19,5 knots |
|
Built |
2001 |
|
Keel laid |
25/09/2000 |
|
Launch date |
16/12/2000 |
|
Date of completion |
27/03/2001 |
|
Delivery date |
09/04/2001 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Geoje South Korea |
|
Yard number |
4428 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer 7RTA62U - 7 cylinder 620 x 2.150 mm combustion engine 16.013 kW at 113,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Ramps |
1x Stern ramp - SWL 150 t |
|
Number of cars |
4.716 |
|
Manager |
Grimaldi Euromed SpA Naples Italy |
|
Operator |
Grimaldi Lines |
|
Owner |
Atlantica di Navigazione S.A. Palermo Italy |
|
Latest data adjustment |
12 July 2023 |
