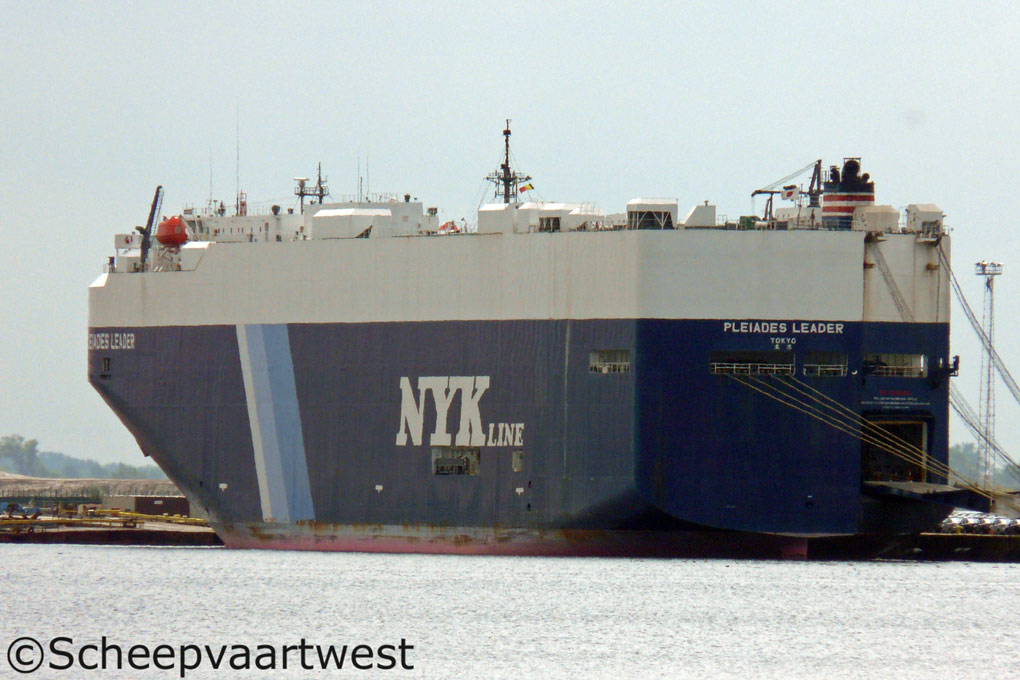

Pleiades Leader 02
Zeebrugge 05 August 2011



Name

PLEIADES LEADER

Type

Vehicles carrier

IMO-number

9426374

Call sign

7JGE

Flag

Japan

Port of registry

Tokyo

GT

62.994 t

DWT

21.462 t

NT

18.898 t

Length

199,94 m

Breadth

32,26 m

Draught

Summer: 10,325 m

Moulded L x B x D

190,00 x 32,26 x 15,00 m

Registered L x B x D

194,98 x 32,26 x 24,12 m

Freeboard

Summer: 4.714 mm

Depth

15,00 m moulded

Speed

Service: 19,3 knots

Max.: 21,5 knots

Built

2009

Keel laid

11.11.2008

Launch date

31.08.2009

Date of completion

13.11.2009

Builder

Shin Kurushima Toyohashi Shipbuilding C0., Ltd.
Toyohashi
Japan

Yard number

3626

Hull type

Single hull

Main engine

1x 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine -15.540 kW at 104,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Number of screws

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boiler

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,77 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Main diesel generatorsets each 4.325 kVA

Car capacity

6.332

Tank capacities

Fuel oil: 3.144 m³

Fresh water: 531 m³

Water ballast: 8.831 m³

Lifting equipment

3x Cranes - SWL 4,0 t each

1x Elevator - SWL 350 kg

Crew

23

Manager

NYK Shipmanagement Pte. Ltd.
15-01, HarbourFront Tower One, 1, Harbourfront Place
Singapore. 098633
Republic of Singapore

Operator

NYK - Nippon Yusen Kaisha Line

Registered owner

Strawberry Leasing Ltd.
3-2, Marunouchi 2-chome
Chiyoda-ku, Tokyo-to, 100-0005
Japan
