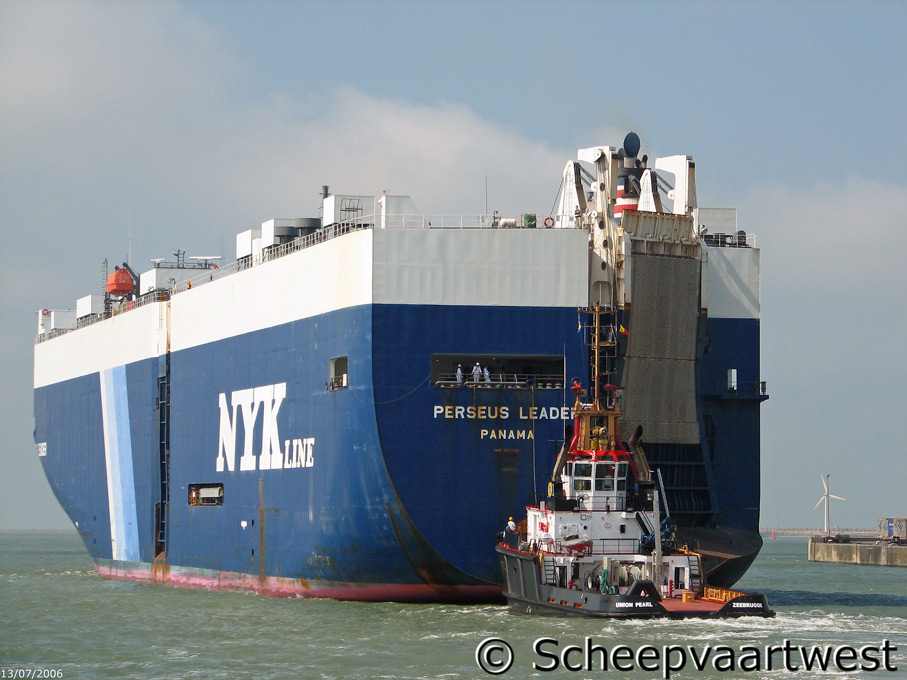

| Zeebrugge 13 July 2006 |
|
Name |
PERSEUS LEADER |
|
Type |
Vehicles Carrier |
|
IMO-number |
9177430 |
|
Call sign |
3FBO9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
57.449 t |
|
DWT |
21.503 t |
|
NT |
17.235 t |
|
Length |
199,94 m overall 194,27 m registered |
|
Breadth |
32,20 m overall |
|
Moulded L x B x D |
190,00 x 32,20 x 15,32 m |
|
Registered L x B x D |
194,27 x 32,20 x 23,53 m |
|
Draught |
Summer: 10,07 m |
|
Freeboard |
Summer: 5.295 mm |
|
Depth |
15,32 m moulded |
|
Speed |
Service: 19,6 knots Trial: 20,9 knots |
|
Built |
1999 |
|
Keel laid |
02.04.1998 |
|
Launch date |
20.11.1998 |
|
Date of build |
27.01.1999 |
|
Builder |
Imabari Shipbuilding Zosen |
|
Yard number |
1304 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.121 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 4,99 t/h Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
4x Main diesel generatorsets each 4.275 kVA |
|
Number of cars |
5.066 |
|
High car cap. 2,0 m |
4.274 |
|
Ramp loadable |
150 t |
|
Tank capacities |
Fuel oil: 3.288 m³ Fresh water: 420 m³ Water ballast: 9.293 m³ |
|
Lifting equipment |
3x Cranes - SWL 0,9 t each 1x Cranes - SWL 4,0 t |
|
Manager |
Shoei Kisen Kaisha Co Ltd. |
|
Operator |
NYK-Line - Nippon Yusen Kaisha Line |
|
Registered owner |
Cypress Maritime |
