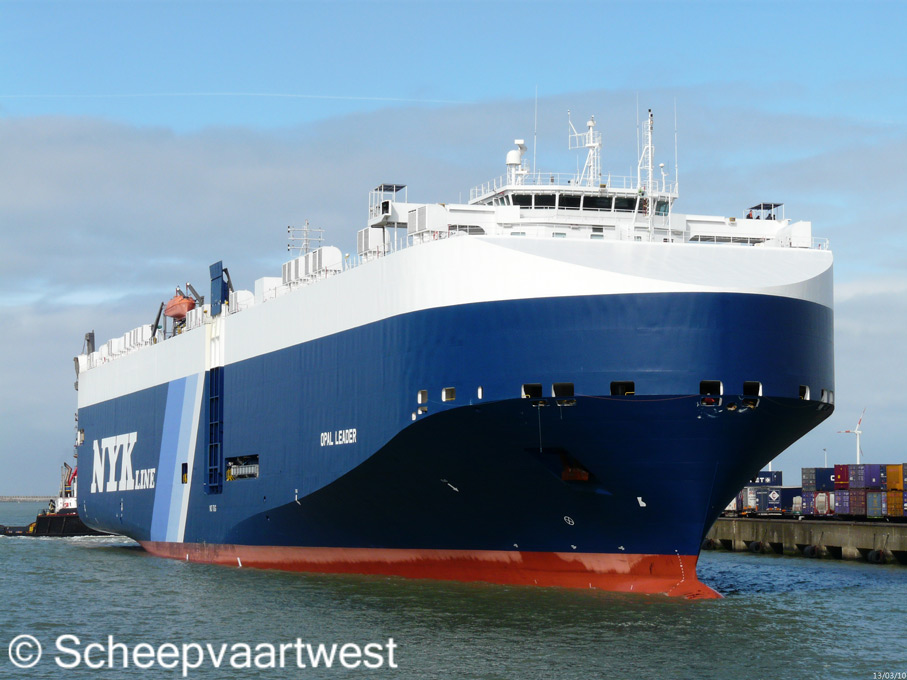

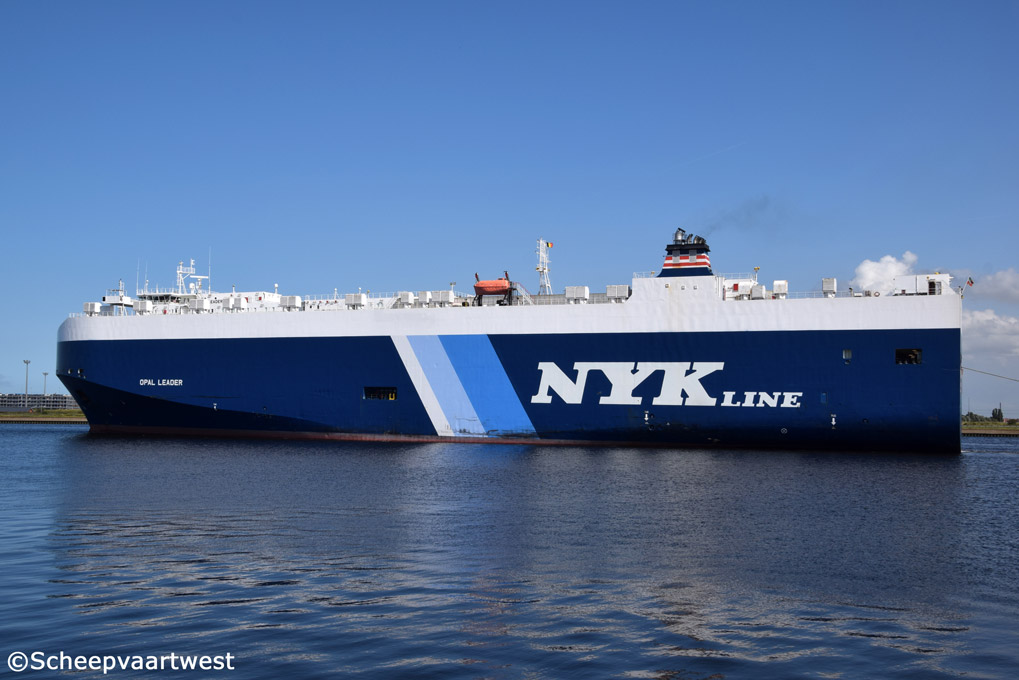

| Zeebrugge 13 March 2010 |
 |
 |
 |
 |
 |
 |
|||||

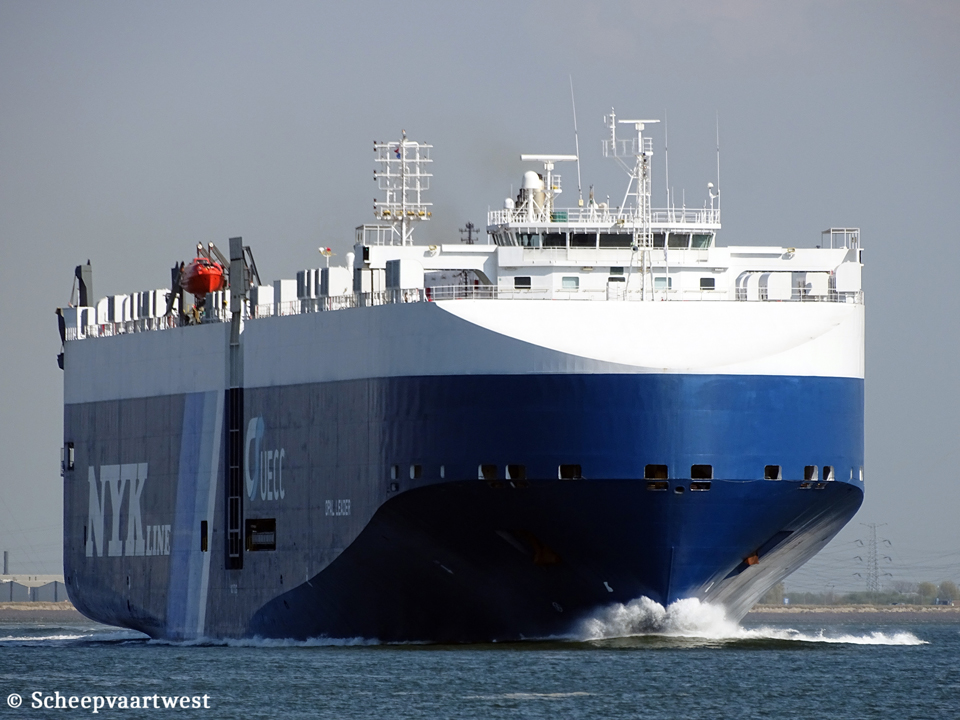

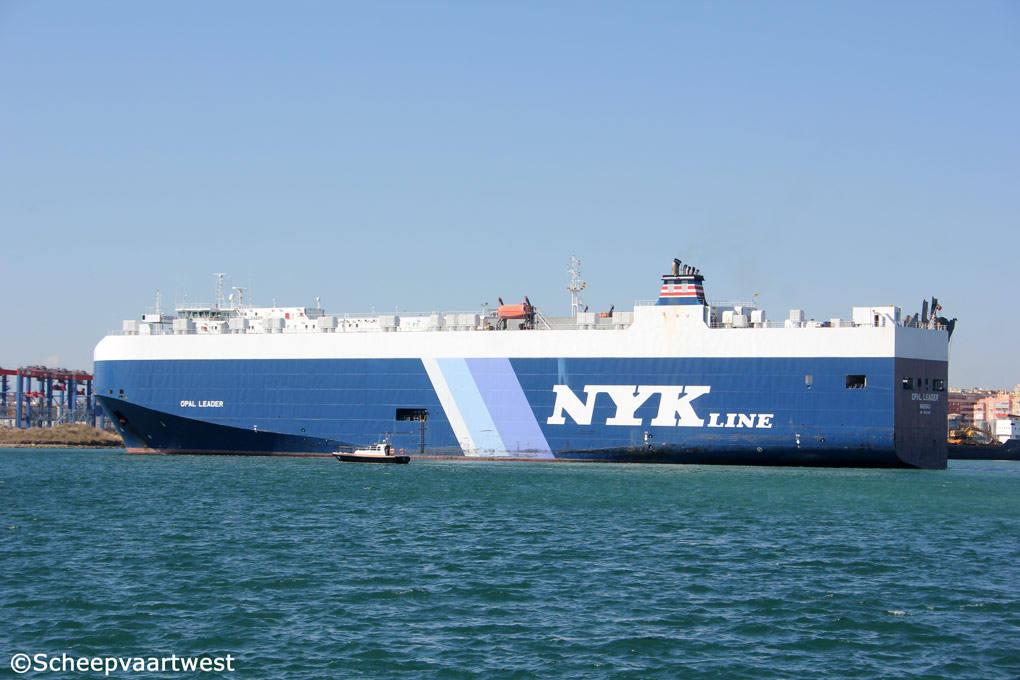

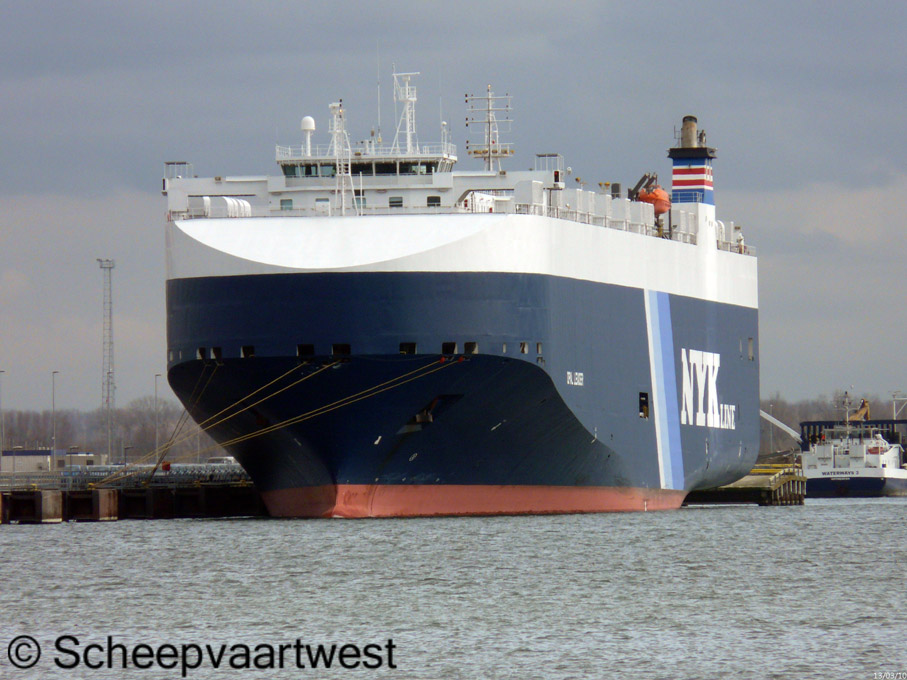

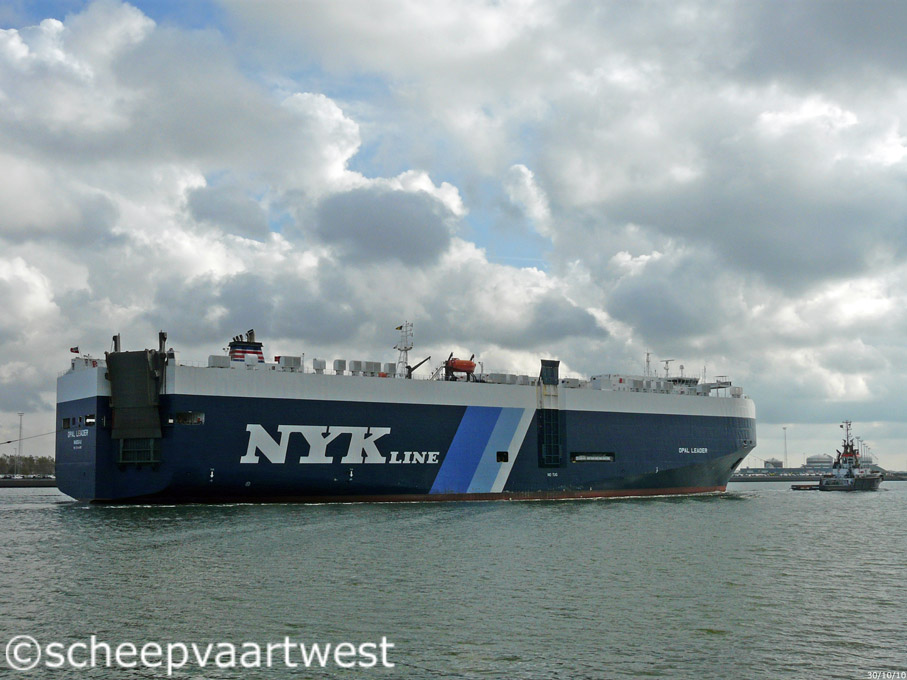

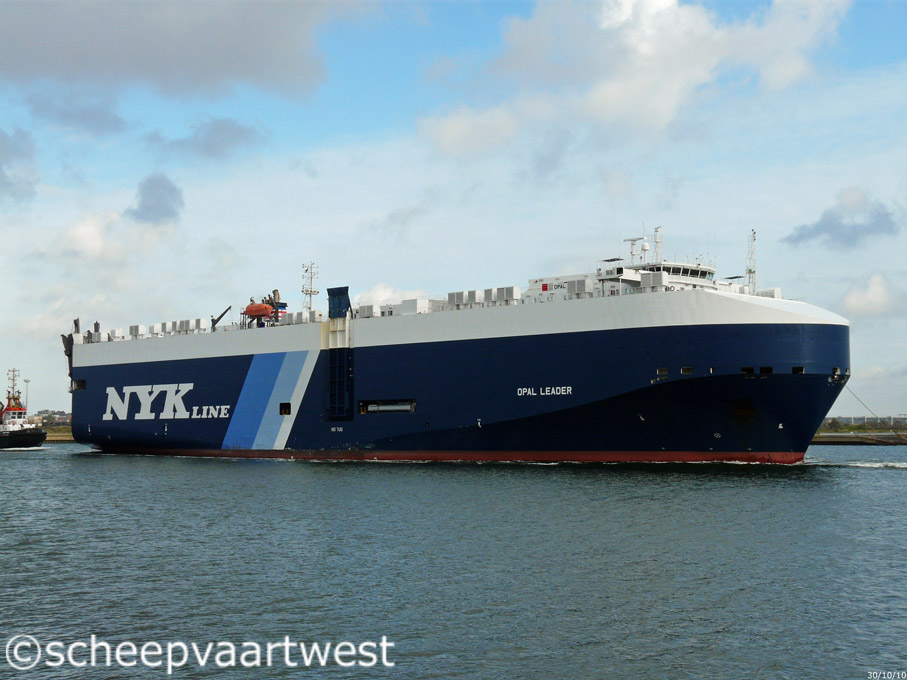

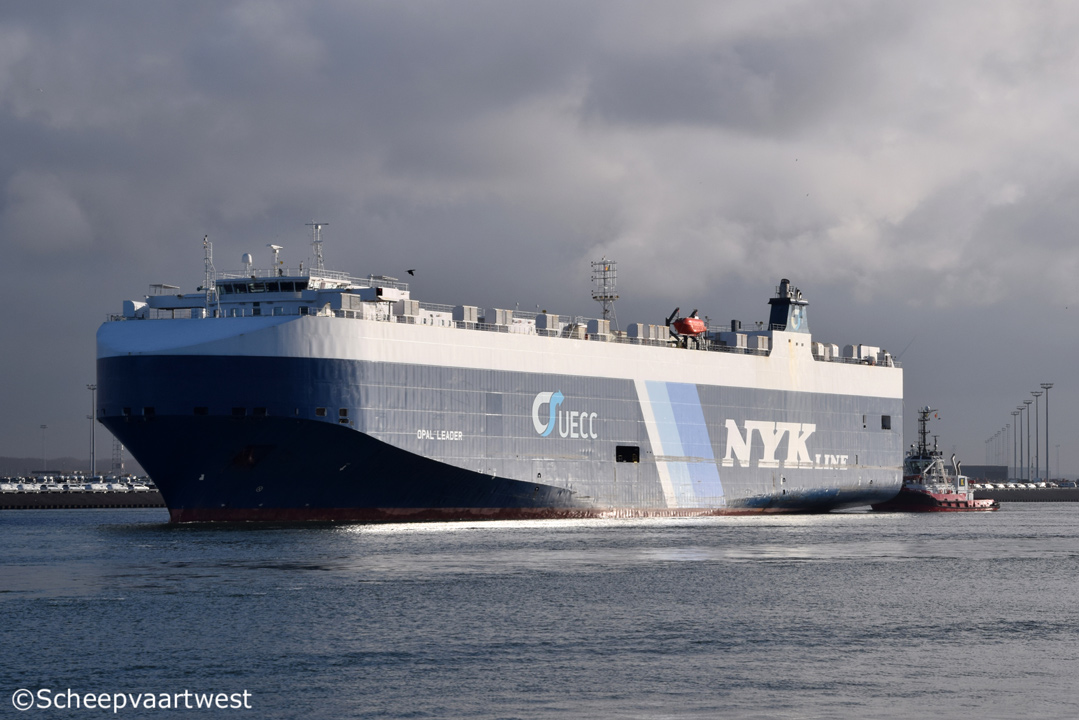

| Zeebrugge 13/03/10 | Zeebrugge 30/10/10 | Zeebrugge 30/10/10 | Zeebrugge 26/01/18 | Malaga, Spain 19/02/14 | Zeebrugge 28/08/15 | |||||
 |
 |
|||||||||

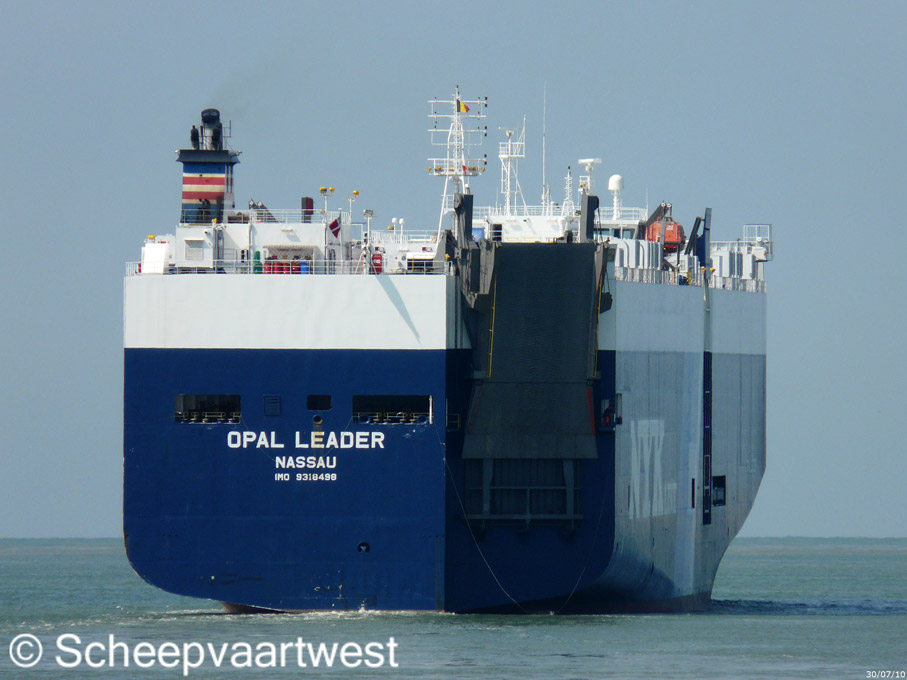

| Zeebrugge 30/07/10 | Westerschelde 14/04/17 | |||||||||
|
Name |
OPAL LEADER |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9318498 |
|
Call sign |
C6VT8 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GRT |
40.986 t |
|
DWT |
12.200 t |
|
NRT |
22.386 t |
|
Length |
176,00 m |
|
Breadth |
31,14 m extreme |
|
Draught |
Summer: 8,76 m |
|
Moulded L x B x D |
167,55 x 31,10 x 14,50 m |
|
Registered L x B x D |
167,55 x 31,10 x 14,50 m |
|
Freeboard |
Summer: 5.766 mm |
|
Depth |
14,50 m moulded |
|
Built |
2007 |
|
Keel laid |
15/07/2006 |
|
Launch date |
16/12/2006 |
|
Date of completion |
25/04/2007 |
|
Builder |
Uljanik Shipbuilding Industries Flaciusova 1 HR-52100 Pula Croatia |
|
Yard number |
466 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN 8S50MC-C Mk. VII - 2 stroke single acting 8 cylinder 500 x 2.000 mm combustion engine 12.640 kW / 17.185 hp at 127,0 rpm Manufacturer: Uljanik Strojogradnja d.d. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 547 mm |
|
Propeller |
1x Mono-block fixed pitch Propeller Builder: Wärtsilä |
|
Boilers |
1x Auxiliary boiler exhaust gas smoke tube EGB-F2243 - 11,0 bar Evaporation: 2,50 t/h 1x Auxiliary boiler, vertical shell KLN/VM - 2.5/7 - TPL Nova - 11,0 bar Evaporation: 3,50 t/h Manufacturer: Saacke Marine Systems |
|
Generators |
4x MAN-B&W 8L23/30H Main diesel generatorsets each 1/280 kW Builder: MAN Diesel SE |
|
Emergency generator |
1x Scania D19 diesel generatorset 150 kW Builder: Scania CV AB, Industrial & Marine Engines |
|
Bow thruster |
TT 1650 AUX controllable pitch thruster Builder: Rolls-Royce Marine AS - Propulsion Ulsteinvik |
|
Ramp |
Breadth: 7,80 m Height: 5,20 m Max. load: 120 t Max. axle load: 50 t |
|
Tank capacities |
Fuel oil: 3.096,60 m³ Fresh water: 214,70 m³ Water ballast: 3.900,90 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Crew |
23 |
|
Manager |
Wallem Shipmanagement Limited 12th Floor, Warwick House TaiKoo Place 979 King's Road, Island East Hong Kong |
|
Operator |
NYK-Line / Nippon Yusen Kaisha Line Japan |
|
Owner |
Payton Maritima S.A. Panama City Republic of Panama |
|
Latest data adjustment |
28 July 2023 |
