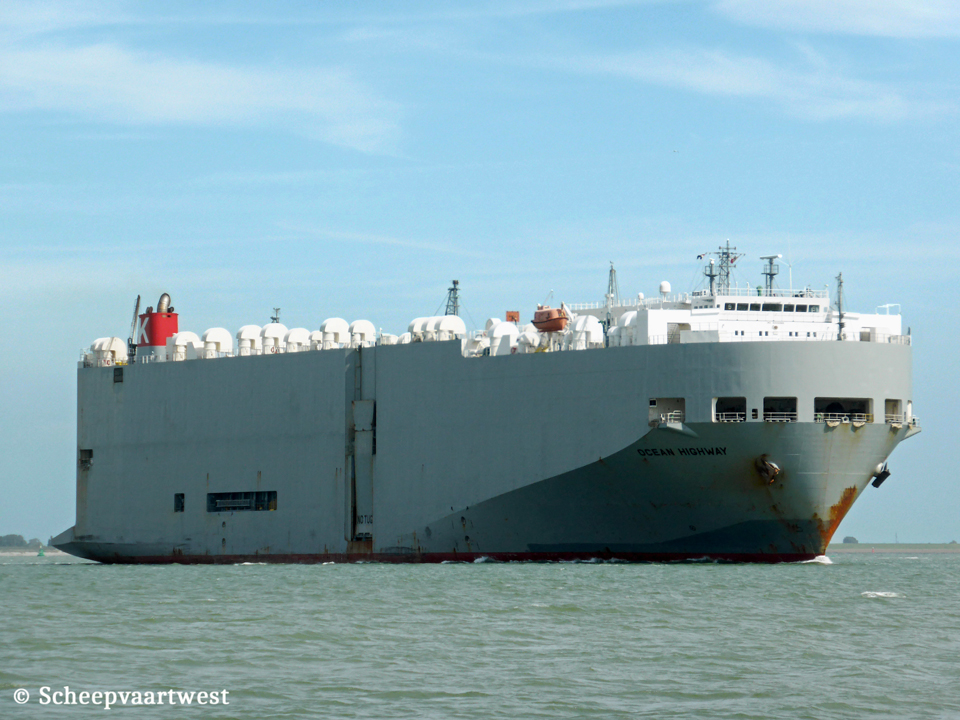

Ocean Highway 05

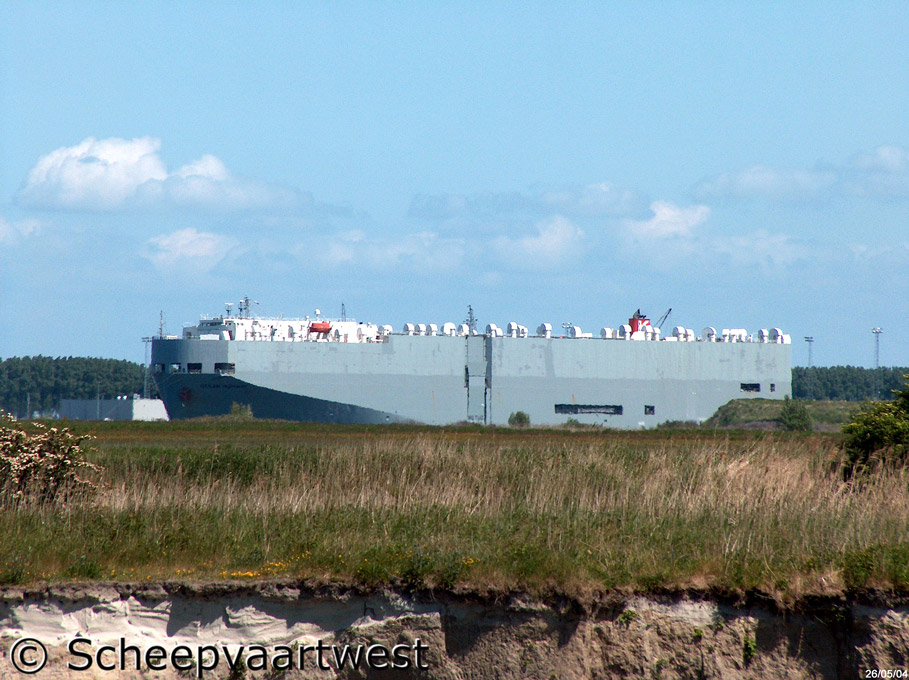

Zeebrugge 26 May 2005



Name

OCEAN HIGHWAY

Type

Vehicles Carrier
PCC - Pure Car Carrier

IMO-number

9205988

Call sign

H3IE

Flag

Republic of Panama

Port of registry

Panama

GT

49.212 t

DWT

16.733 t

NT

14.764 t

Length

179,15 m overall
170,00 m between perpendiculars

173,03 m registered

Breadth

32,20 m over all

Moulded L x B x D

170,00 x 32,20 x 14,95 m

Registered L x B x D

173,03 x 32,20 x 21,50 m

Draught

Summer: 9,67 m

Freeboard

Summer: 5.313 mm

Depth

14,95 m moulded

Service

Service: 20,0 knots

Trial: 22,5 knots

Built

2000

Keel laid

14.12.1999

Launch date

24.03.2000

Date of completion

07.07.2000

Builder

Hashihama Shipbuilding Co. Ltd.
Nakatado District
Kagawa
Tadotsu
Japan

Yard number

1175

Hull type

Single hull

Main engine

1x Kawasaki B&W 8S60MC - 2 stroke single acting 8 cylinder 600 x 2.292 mm diesel engine- 14.312 kW at 105 rpm

Manufacturer: Kawasaki Heavy Industries Ltd.

Number of screws

1

Boiler

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,60 t/h

Manufacturer: Osaka Boiler Mfg. Co. Ltd.

Generators

4x Main diesel generatorsets each 3.720 kVA

Cargo capacity

Cars: 5.052

Trailer: 279

Tank capacities

Fuel oil: 3.069 m³

Fresh water: 441 m³

Water ballast: 7.387 m³

Number of decks

11

Lifting equipment

1x Crane - SWL 3,0 t

2x Cranes - SWL 4,0 t each

Manager

Taiyo Nippon Kisen Co., Ltd.

2-2-3, Kaigandori, Chuo-Ku

Kobe
Japan

Operator

K-Line / Kawasaki Kisen Kaisha Line

Owner

Shenandoah Maritime S.A.
Panama
Republic of Panama

Registered owner

Shenandoah Maritime S.A.
