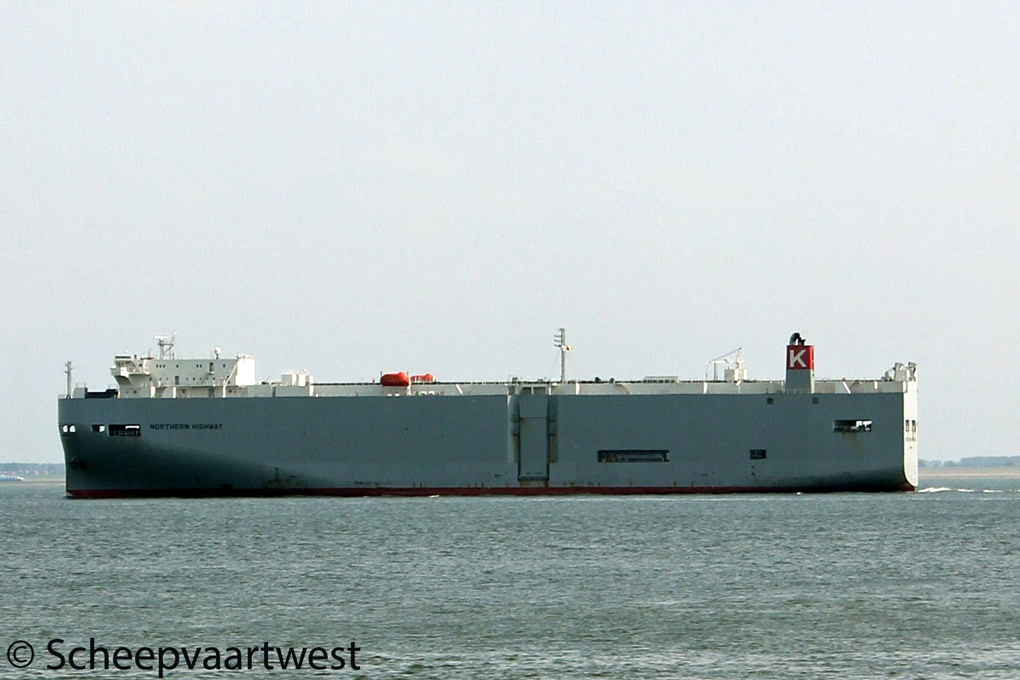

Northern Highway 01
Westerschelde 06 August 2013

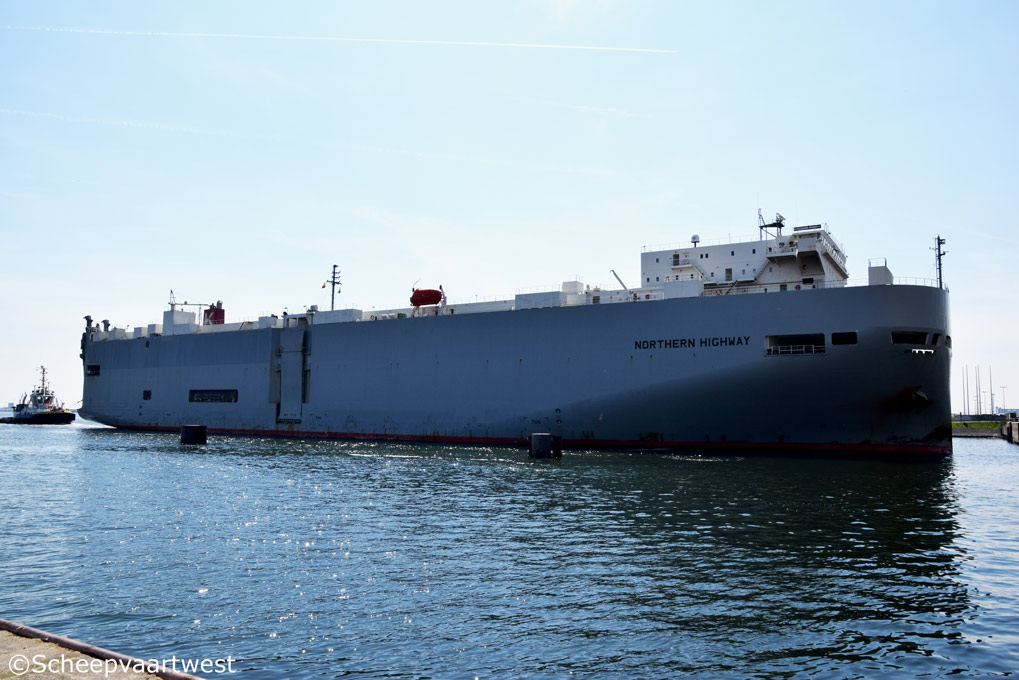

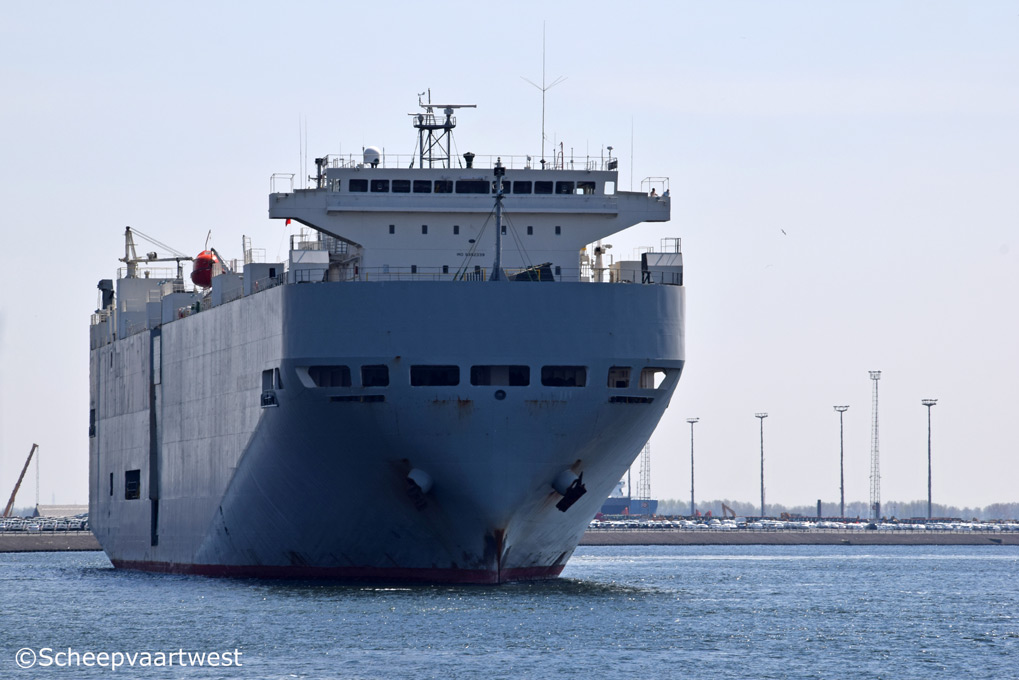

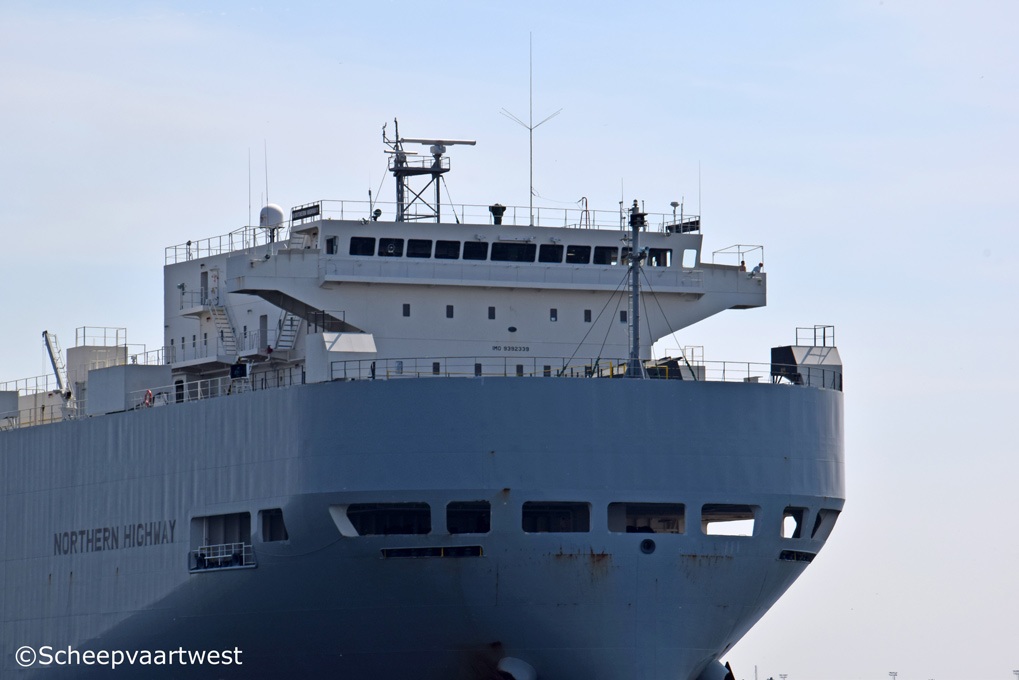

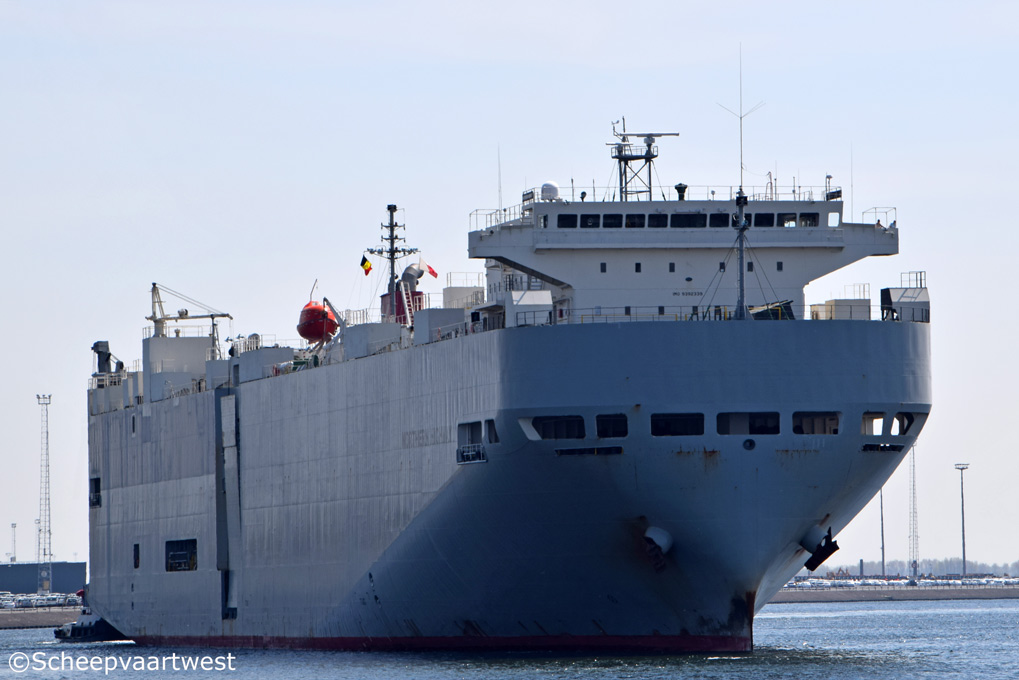

Northern Highway 03   Northern Highway 04   Northern Highway 08   Northern Highway 06
Zeebrugge 06/05/16 Zeebrugge 06/05/16 Zeebrugge 06/05/16 Zeebrugge 06/05/16



Name

NORTHERN HIGHWAY

Type

Vehicles carrier - Roll-On / Roll-Off carrier

PCTC - Pure car and Truck carrier

IMO-number

9392339

Call sign

3EVE6

Flag

Republic of panama

Port of registry

Panama City

GT

39.422 t

DWT

12.856 t

NT

11.827 t

Length

188,03 m overall

Breadth

28,00 m

Draught

Summer: 8,53 m

Moulded L x B x D

183,70 x 28,20 x 13,61 m

Registered L x B x D

183,70 x 28,20 x 19,81 m

Freeboard

Summer: 5.129 mm

Depth

13,61 m moulded

Speed

18,5 knots

Built

2009

Keel laid

07.11.2008

Launch date

09.03.2009

Date of completion

17.06.2009

Builder

Shin Kurushima Onishi Shipyard
Imabari
Japan

Yard number

5520

Hull material

Steel

Main engine

1x 2 stroke single acting 8 cylinder 500 x 1.950 mm diesel engine - 11.000 kW at 124,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 510 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,89 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Diesel generatorsets - 3.525 kVA

Number of cars

3.893

Tank capacities

Fuel oil: 2.792 m³

fresh water; 413 m³

Water ballast: 6.387 m³

Manager

Sugahara Kisen Co., Ltd.
Kure
Japan

Operator

K-Line - Kawasaki Kisen Kaisha Ltd.

Registered owner

Bright Carrier S.A.

Last data update

29 December 2013
