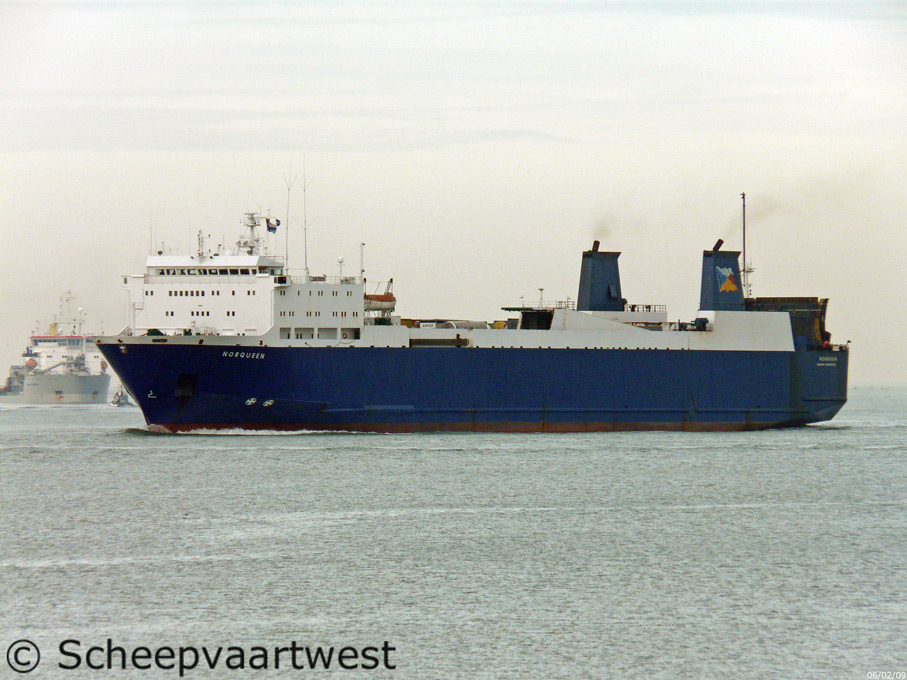

Norqueen - IMO 7902647

Name

NORQUEEN

Previous names

1980-1991 Bore Queen - Bore Line
1991-2002 Norqueen - P&O North Sea Ferries

Type

Roll-On/Roll-Off Cargo Vessel

IMO-number

7902647

Call sign

OIKQ

Flag

Finland

Port of registry

Helsinki - Helsingfors

GT

17.884 t

DWT

Summer: 11.400 t

NT

5.366 t

Length

170,93 m overall
158,80 m between perpendiculars

Breadth

23,04 m moulded

Draught

Summer: 7,62 m

Lane metres

2 067 m (+698 m)
(width 2,70 m basis, weather deck 2,90 m + hoistable deck 670 lane metres)

Freeboard

9.900 mm

Depth

17,51 m

Speed

Full draft: 117,5 knots
Trailer: 19,0 knots

Built

1980
Elongated: 1995

09.04.1980

22.12.1980

Builder

Rauma-Repola Oy
Savonlinna
Rauma
Finland

Yard number

261

Hull type

Single hull

Main engine

2x Krupp MaK 8M552AK - 12 000 kW total

Number of screws

2

Generators

3x Main diesel generatorsets each 710 kVA

Cargo deck

Abt 7.770 m²

Deck height

Main deck (Car deck uplifted): 7,10 m
Main deck (Car deck in use): 5,30 m / alt. 4,20 m
Car deck: 2,90 m (500 kg/m²) / alt. 1,80 m (170 kg/m²)
Tank top: 5,70 m

Cargo hold volume

(TT+MD): abt 29.150 m³

Car capacity

Abt 8 m²/car: 920

Trailer capacity

12 m trailers: abt 145

Ramps

Aft portside
Main deck to weather deck
Amids starboard
Main deck to tank top
To car deck: 31,70 m x 4,00 m
Stern ramp opening: 14,20 m/ 7,63 m free height

Bunker capacity

988 t

Number of passengers

12

Number of beds

12

Crew

30

Manager

Rettig Bore
Turku
Finland

Operator

P&O Ferries

Owner

Rettig Bore
Turku
Finland
