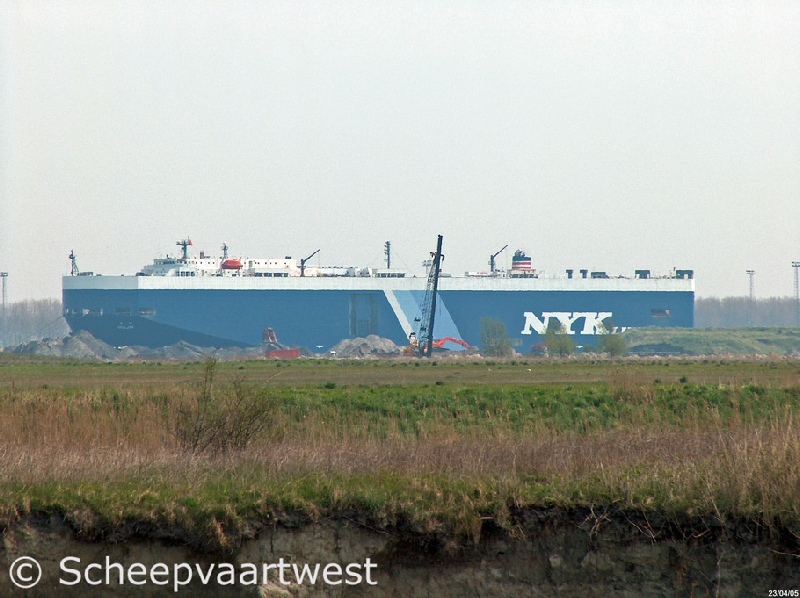

| Zeebrugge 23 April 2005 |
|
Name |
HOJIN |
|
Type |
Vehicles Carrier |
|
IMO-number |
8916267 |
|
Call sign |
YJYN8 |
|
Flag |
Vanuatu |
|
Port of registry |
Port Vila |
|
GT |
57.871 t |
|
DWT |
18.273 t |
|
NT |
17.362 t |
|
Length |
199,52 m overall 193,05 m registered |
|
Moulded L x B x D |
190,00 x 32,26 x 14,30 m |
|
Registered L x B x D |
193,05 x 32,26 x 23,04 m |
|
Breadth |
32,26 m over all |
|
Draught |
Summer: 9,824 m |
|
Freeboard |
Summer: 4.515 mm |
|
Depth |
13,40 m |
|
Speed |
19,25 knots |
|
Built |
1990 |
|
Keel laid |
06.09.1989 |
|
Launch date |
31.01.1990 |
|
Date of completion |
24.04.1990 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. |
|
Yard number |
2667 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi - 2 stroke single acting 8 cylinder 600 x 2.200 mm engine - 12.175 kW at 96,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,91 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.984 kVA |
|
Cargo capacity |
Cars: 4.681 TEU: 268 FEU: 75 |
|
High car cap. height 2,0 m |
4.702 |
|
Ramp loadable |
200 t |
|
Tank capacities |
Fuel oil: 2.588 m³ Fresh water: 429 m³ Water ballast: 8.304 m³ |
|
Cranes |
2x Crane SWL 4,0 t each |
|
Manager |
NYK Line Shipmanagement Pte. Ltd. |
|
Owner |
Nereus Shipholding S.A. Panama Republic of Panama |
