| Zeebrugge 11 May 2009 |
|
Name |

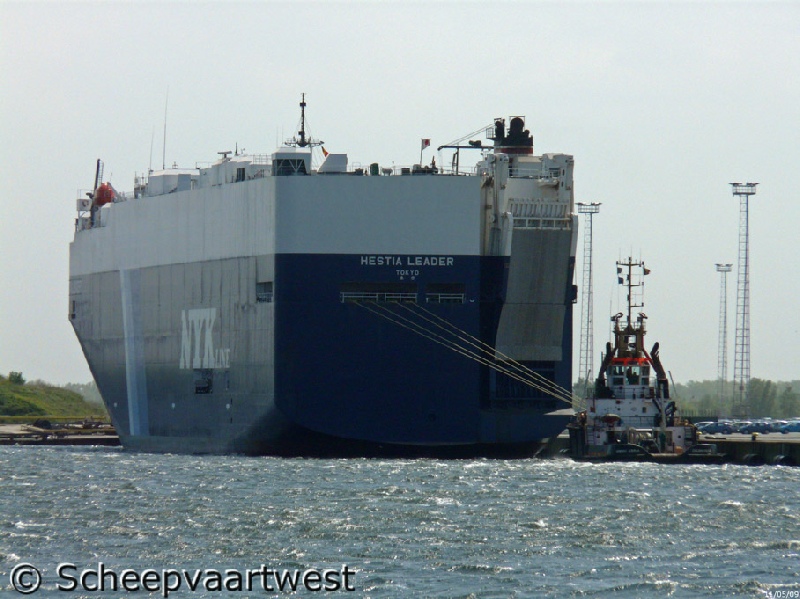

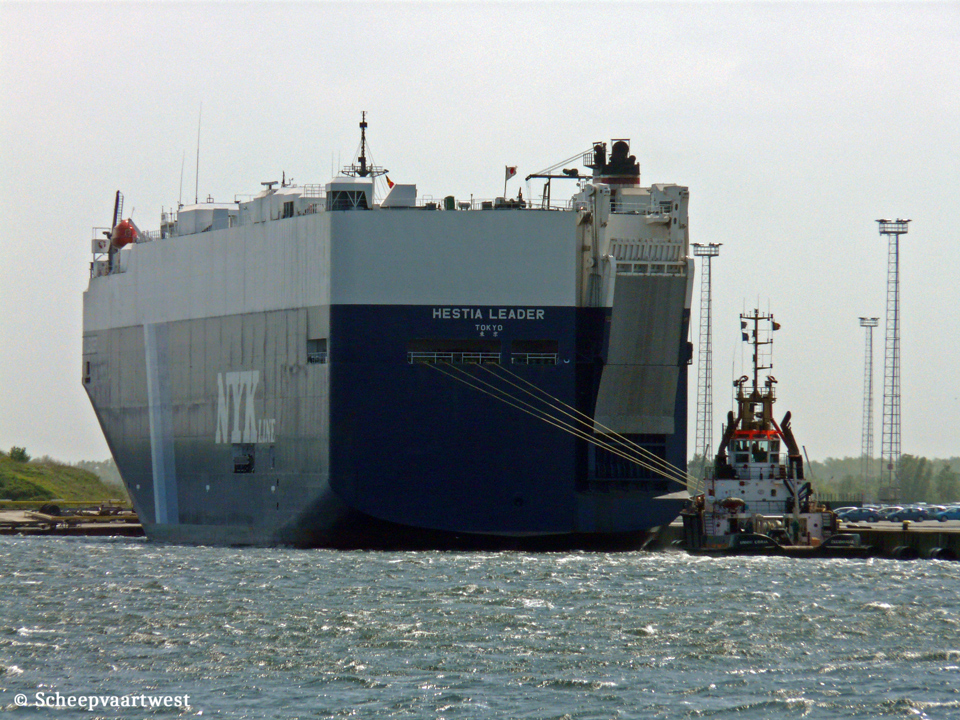

HESTIA LEADER |
|
Type |
Vehicle carrier |
|
IMO-number |
9355226 |
|
Call sign |
7JDY |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
GT |
63.007 t |
|
DWT |
21.419 t |
|
NT |
18.902 t |
|
Length |
199,94 m overall |
|
Breadth |
32,26 m moulded |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L x B x D |
194,98 x 32,26 x 24,12 m |
|
Draught |
Summer: 10,325 m |
|
Freeboard |
Summer: 4.714 mm |
|
Depth |
34,80 m |
|
Built |
2008 |
|
Keel laid |
20.02.2008 |
|
Launch date |
16.06.2008 |
|
Date of completed |
16.09.2008 |
|
Builder |
Toyohashi Shipbuilding |
|
Yard number |
3611 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm engine - 15.540 kW at 104,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar |
|
Generators |
4x Main diesel generatorsets - 4.325 kVA |
|
Car capacity |
5.371 |
|
Tank capacities |
Fuel oil: 3.144 m³ Fresh water: 531 m³ Water ballast: 8.831 m³ |
|
Lifting equipment |
3x Cranes - SWL 4,0 t each 1x Elevator - SWL 350 kg |
|
Crew |
23 |
|
Manager |
NYK Shipmanagement Pte. Ltd. |
|
Operator |
NYK Line - Nippon Yusen Kaisha Line |
|
Owner |
Hardaway Maritima |
|
Registered Owner |
FC Oak Leasing Ltd. |
