| Zeebrugge 14 June 2010 |
 |
 |
|
| Zeebrugge 14/06/10 | Zeebrugge 14/06/10 |
|
Name |

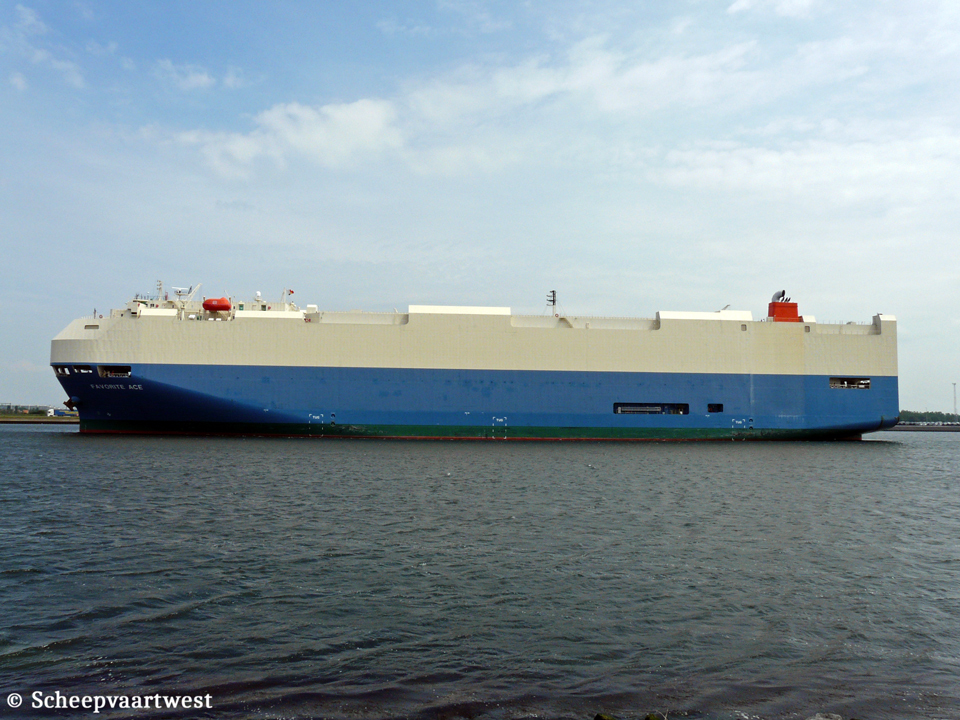

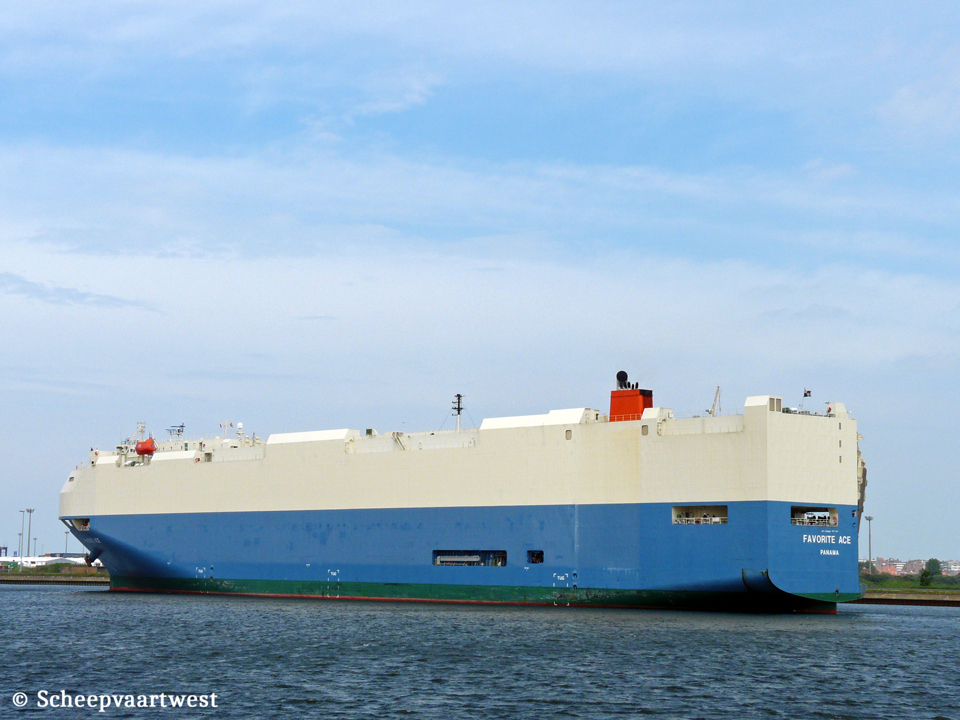

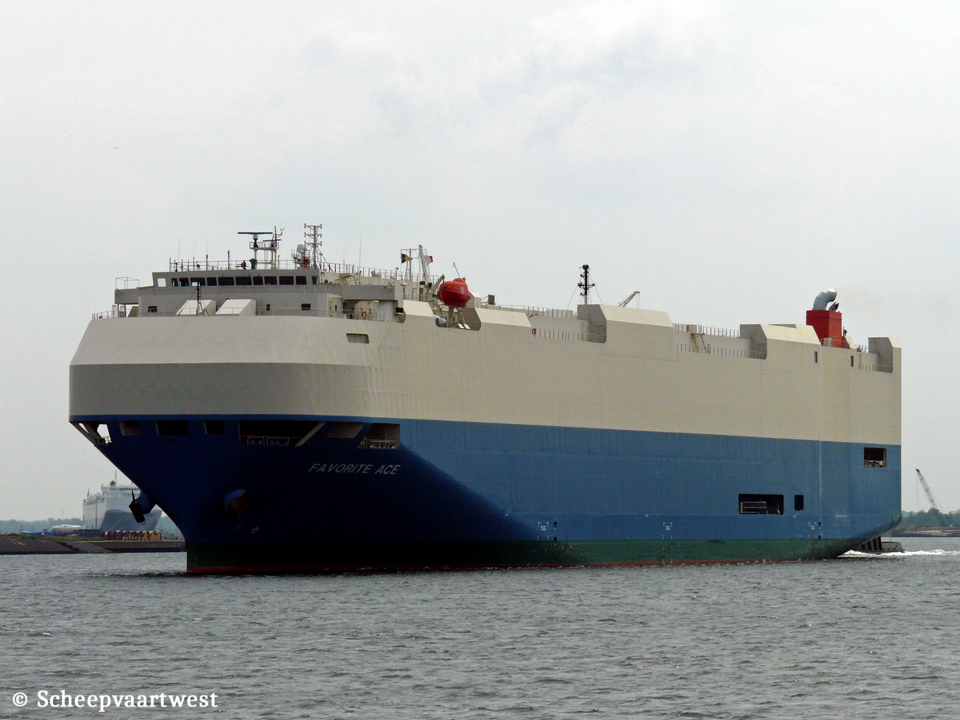

FAVORITE ACE |
|
Type |
Vehicle carrier |
|
IMO-number |
9293909 |
|
Call sign |
3EIC6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
60.118 t registered |
|
DWT |
17.709 t |
|
NT |
18.543 t registered |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,94 x 32,26 x 21,17 m |
|
Draught |
Summer: 9,725 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
21,17 m registered |
|
Speed |
Service: 20,0 knots |
|
Built |
2006 |
|
Keel laid |
09.12.2004 |
|
Launch date |
25.08.2006 |
|
Date of completion |
20.11.2006 |
|
Builder |
Shin Kurushima Dockyard CO. Ltd. |
|
Yard number |
5308 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 single acting 8 cylinder 600 x 2.300 mm engine - 15.090 kW at 98,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,82 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets - 4.275 kVA |
|
Car capacity |
5.231 |
|
Tank capacities |
Fuel oil: 2.991 m³ Fresh water: 404 m³ Ballast water: 7.400 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
23 |
|
Manager |
Temm Maritime, Co., Ltd. |
|
Operator |
MOL - Mitsui Osk Lines |
|
Owner |
Glory Ocean Shipping S.A. |
