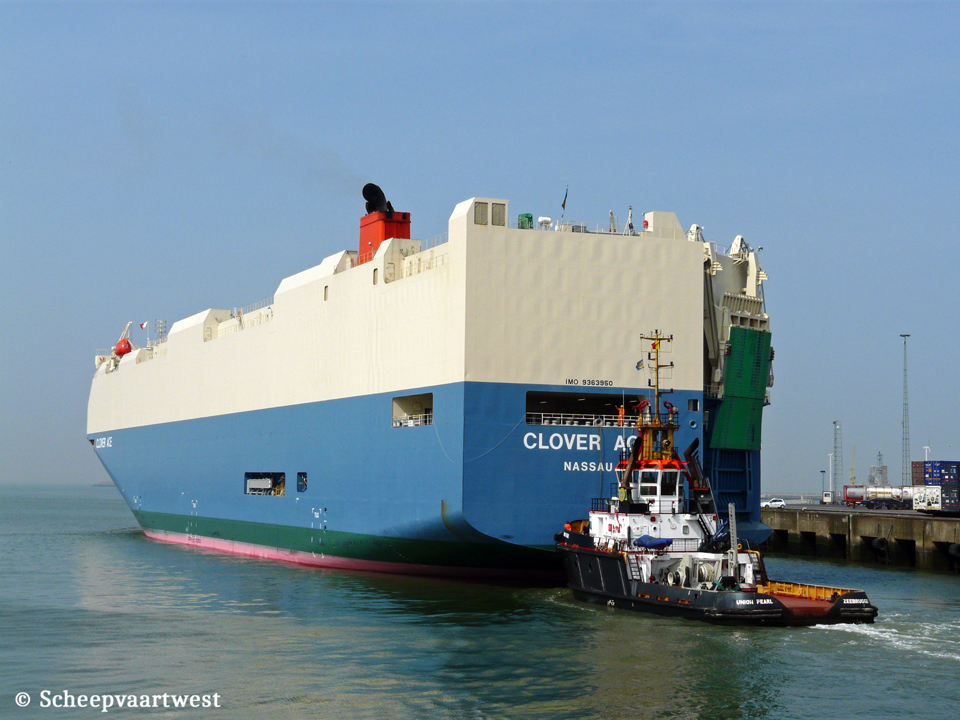

| Zeebrugge 12 January 2009 |
 |
 |
|

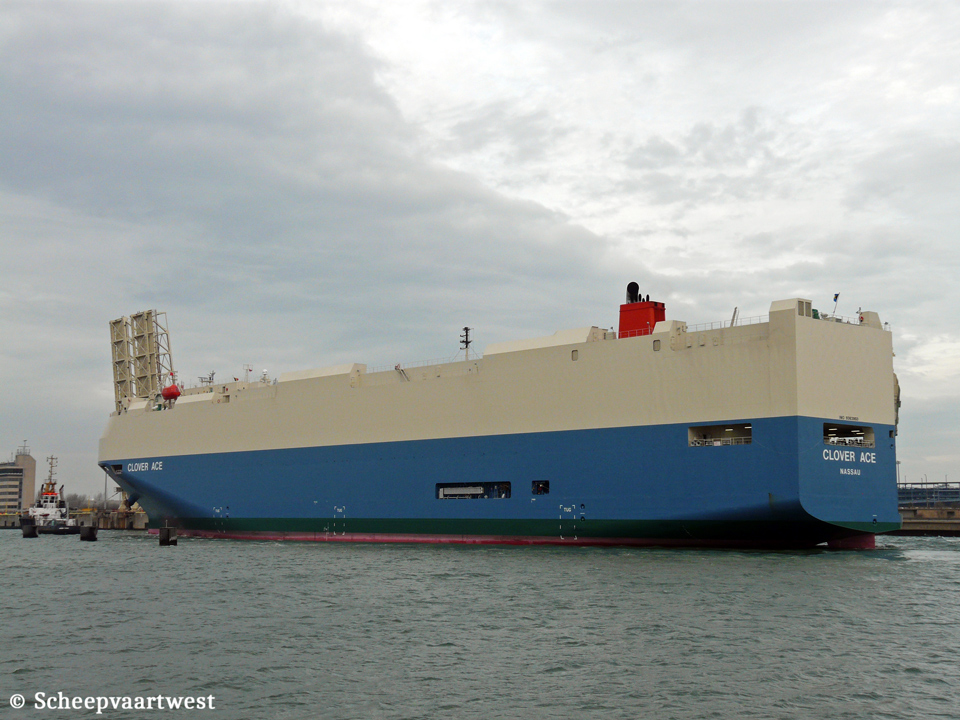

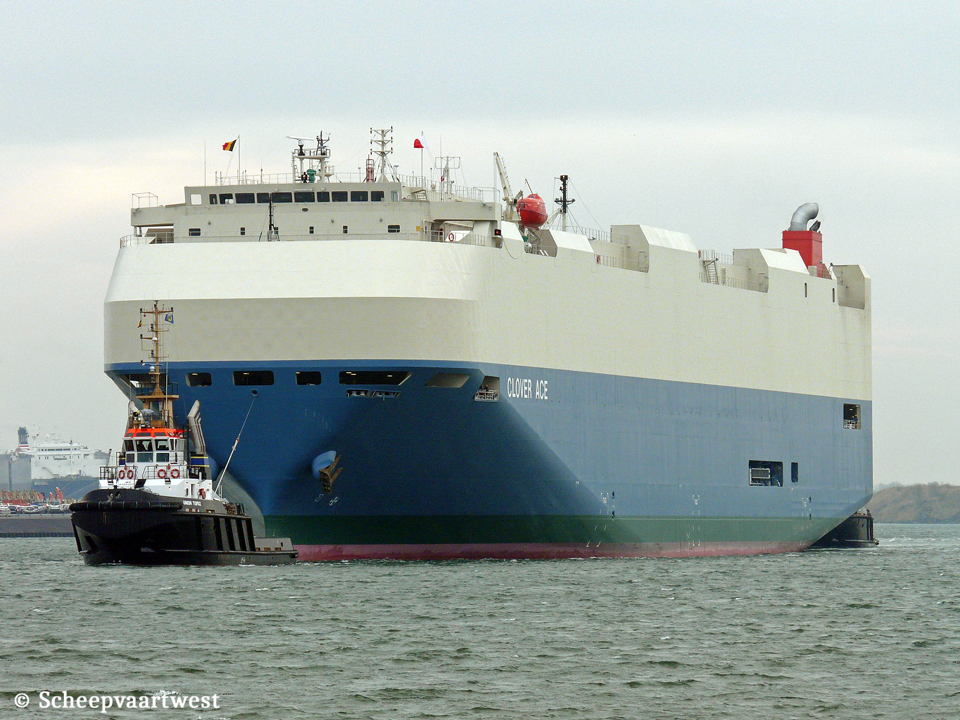

| Zeebrugge 12/01/09 | Zeebrugge 15/04/09 |
|
Name |
CLOVER ACE |
|
Type |
Vehicles Carrier |
|
IMO-number |
9363950 |
|
Call sign |
C6XI9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
60.065 t registered |
|
DWT |
17.280 t |
|
NT |
18.543 t registered |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,94 x 32,26 x 21,17 m |
|
Draught |
9,725 m |
|
Freeboard |
Summer: 4.965 mm |
|
Speed |
Service: 18,4 knots Max.: 20,8 knots |
|
Built |
2008 |
|
Keel laid |
12.05.2008 |
|
Launch date |
03.09.2008 |
|
Date of completion |
17.11.2008 |
|
Builder |
Toyohashi Shipbuilding Co. Ltd. |
|
Yard number |
3613 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm engine - 19.090 kW at 98,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,82 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets 4.275 kVA |
|
Car capacity |
6.287 |
|
Tank capacities |
Fuel oil: 2.991 m³ Fresh water: 404 m³ Water ballast: 7.372 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t |
|
Crew |
25 |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Owner |
Aurora Car Maritime Transport |
|
Registered owner |
Aurora Car Maritime Transport S.A. |
