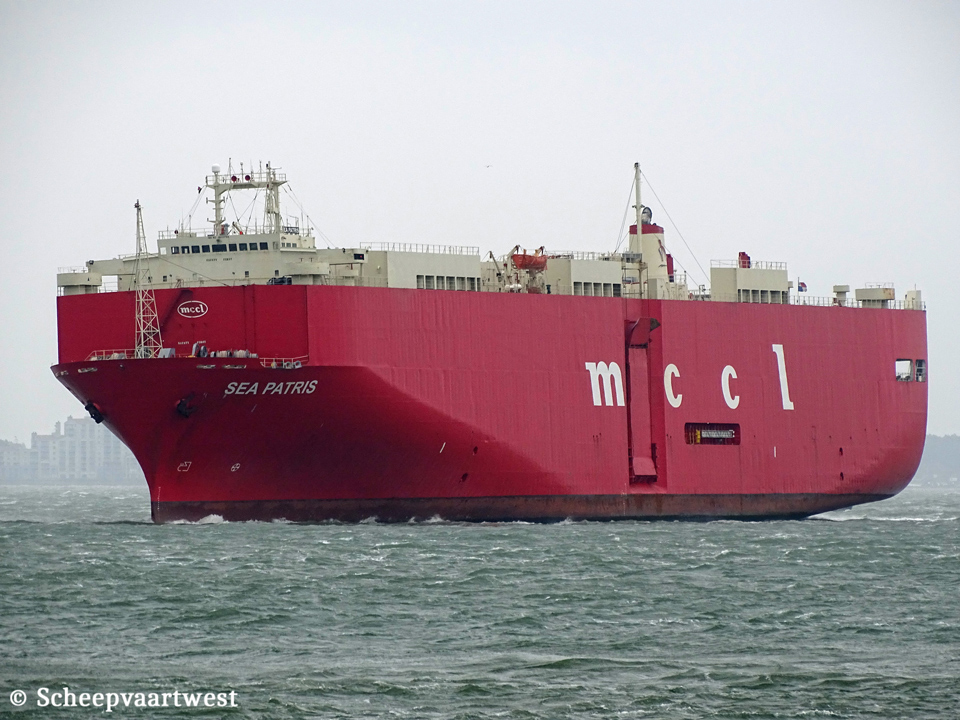

Sea Patris IMO 8415794 01
Westerschelde 10/ May 2020



Name

SEA PATRIS

Previous names

1985 - 05/2014 Franconia

Type

Roll-On/Roll-Off carrier

IMO-number

8415794

Call sign

3FWI7

Flag

Republic of Panama

Port of registry

Panama City

GT

36.201 t

DWT

Summer: 13.895 m

NT

10.860 t

Number of 20ft containers

289

Length

176,72 m overall

Breadth

29,20 m moulded

Draught

9,02 m

Moulded L x B x D

164,80 x 29,20 x 11,13 m

Registered L x B x D

168,80 x 29,20 x 21,20 m

Freeboard

2.136 mm

Depth

11,13 m moulded

Speed

Max: 19,2 knots

Built

1985

Keel laid

27/08/1984

Launch date

25/10/1984

Date of completion

14/01/1985

Builder

Imabari Shipbuilding Co., Ltd. Marugame Headquarters

Marugame

Japan

Yard number

1138

Hull material

Steel

Hull type

Single hull

Main engine

1x Kawasaki/MAN-B&W 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm diesel engine 9.179 kW / 12.480 hp at 111,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 585 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,26 t/h

Manufacturer: Miura Co., Ltd.

Generators

2x Generators - 1.900 kVA

Bow thruster

1x 800 kW

Number of cars

3.309

Number of ramps

1x Quarter side ramp - 50,0t / 5,80 m

2x Side ramps - 10,0 t / 4,60 m

Number of decks

10

Deck 1: 1.132 m²

Deck 2: 1.970 m²

Deck 3: 2.377 m²

Deck 4: 2.533 m²

Deck 5: 2.640 m²

Deck 6: 3.885 m²

Deck 7: 4.025 m²

Deck 8: 4.022 m²

Deck 9: 3.845 m²

deck 10: 4.335 m²

Tank capacities

Fuel oil: 2.442 m²

fresh water: 450 m³

Water ballast: 4.293 m³

ISM & commercial manager

MCCL - Mediterranean Car-Carriers Line S.A.

2nd Floor, 1, Skouze Street & Akti Miaouli

185 35 Piraeus

Greece

Registered owner

Sea Patris Shipping SA

Care of Mediterranean Car-Carriers Line SA (MCCL)

2nd Floor, 1, Skouze Street & Akti Miaouli

185 35 Piraeus

Greece

Latest data adjustment

10 February 2022
