Aegean Highway 12

Westerschelde 03 March 2018

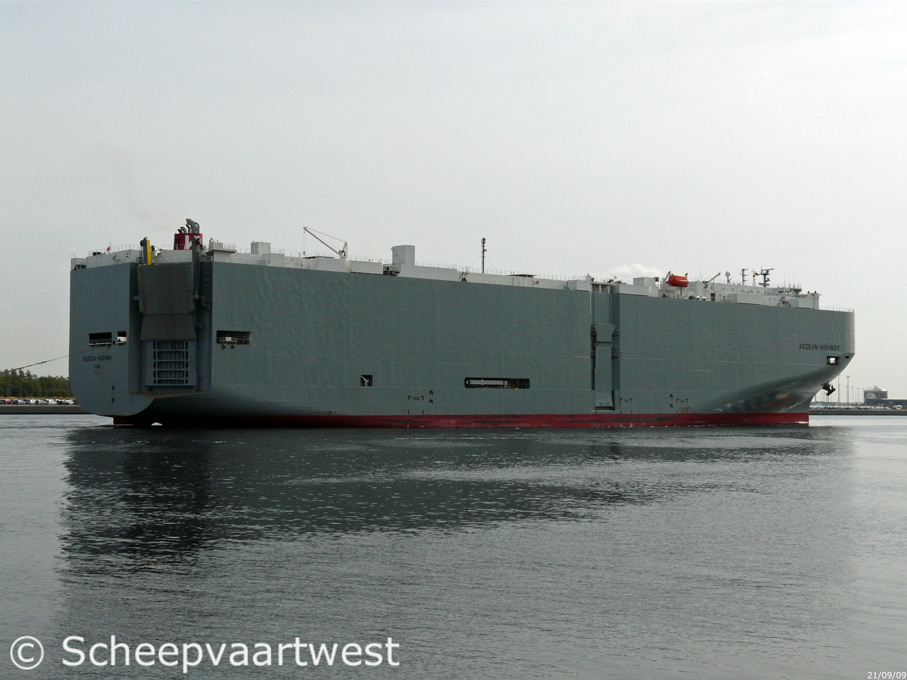

Aegean Highway 04   Aegean Highway 08   Aegean Highway 01
Zeebrugge 21/09/09 Zeebrugge 21/09/09 Zeebrugge 21/09/09


Name

AEGEAN HIGHWAY

Type

Vehicles carrier

IMO-number

9464388

Call sign

7JDT

Flag

Japan

Port of registry

Kobe

GT

37.552 t registered

DWT

18.867 t

NT

19.090 t

Length

199,97 m overall

192,00 m between perpendiculars

Breadth

32,26 m

Moulded L x B x D

192,00 x 32,26 x 14,70 m

Registered L x B x D

195,11 x 32,26 x 21,31 m

Draught

10,02 m

Freeboard

Summer: 4.715 mm

Line

K-Line / Kawasaki Kisen Kaisha Line

Built

2008

Keel laid

25.02.2008

Launch date

22.07.2008

Date of completion

25.09.2008

Builder

Imabari Zosen Co. Ltd. Marugame Headquarters
Marugame
Japan

Yard number

1474

Hull type

Single hull

Main engine

1x Mitsubishi 8UEC60LSII - 2 Stroke single acting 8 cylinder 600 x 2.300 mm combustion engine - 13.260 kW at 100,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 630 mm

Propellers

1

Boiler

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 3,56 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators - 4.700 kVA

Bow thruster

1.800 hp

Cargo capacity

Cars: 6.237

Trucks: 109

Tank capacities

Fuel oil: 3.010 m³

Fresh water: 659 m³

Water ballast: 8.445 m³

Lifting equipment

2x Cranes - SWL 0,5 t

4x Cranes - SWL 4,0 t

1x Elevator 375 kg

Crew

23

Manager

Taiyo Nippon Kisen Co., Ltd.

Operator

K-Line / Kawasaki Kisen Kaisha Line

Registered owner

Kawasaki Kisen Kaisha Ltd.
Japan

Latest data adjustment

19 March 2018
